Back-Up Light Assembly: Installation

WARNING: This page is about a different car, the 2008 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL BACK-UP LIGHT ASSEMBLY
    1. Connect each connector.
    2. Install the back-up light assembly with the 3 nuts and the clip.
  2. INSTALL BACK DOOR TRIM PANEL ASSEMBLY UPPER

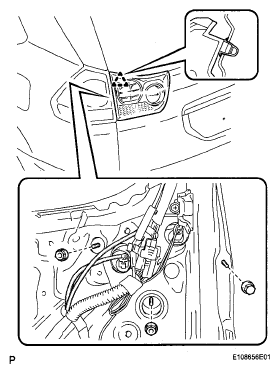

    Fig 1: Identifying Back-Up Light Assembly Nut And Clip
    G05273973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
