Roof Headlining: Components

WARNING: This page is about a different car, the 2008 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

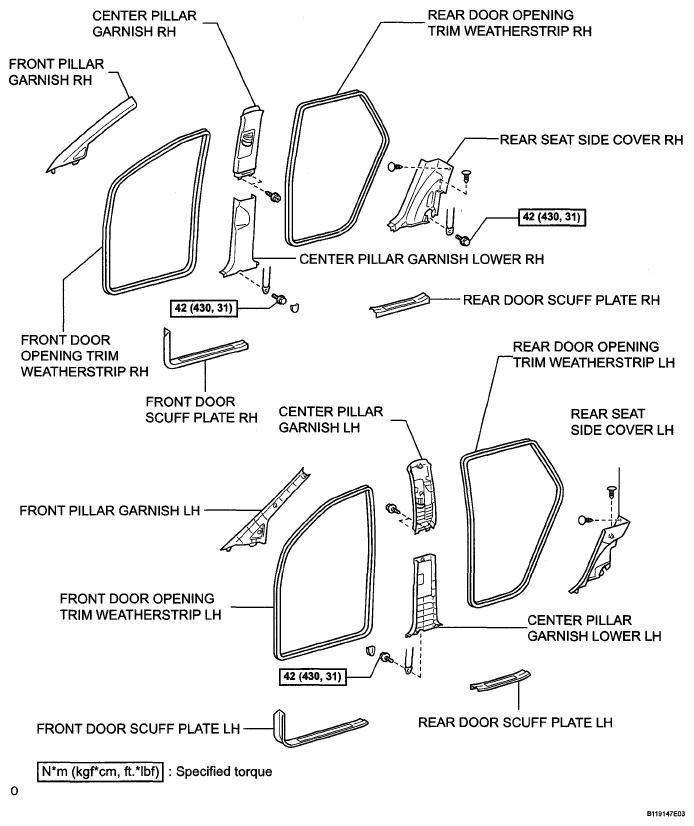

Fig 1: Identifying Roof Headlining Replacement Components With Torque Specifications (1 Of 11)

G05274842

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

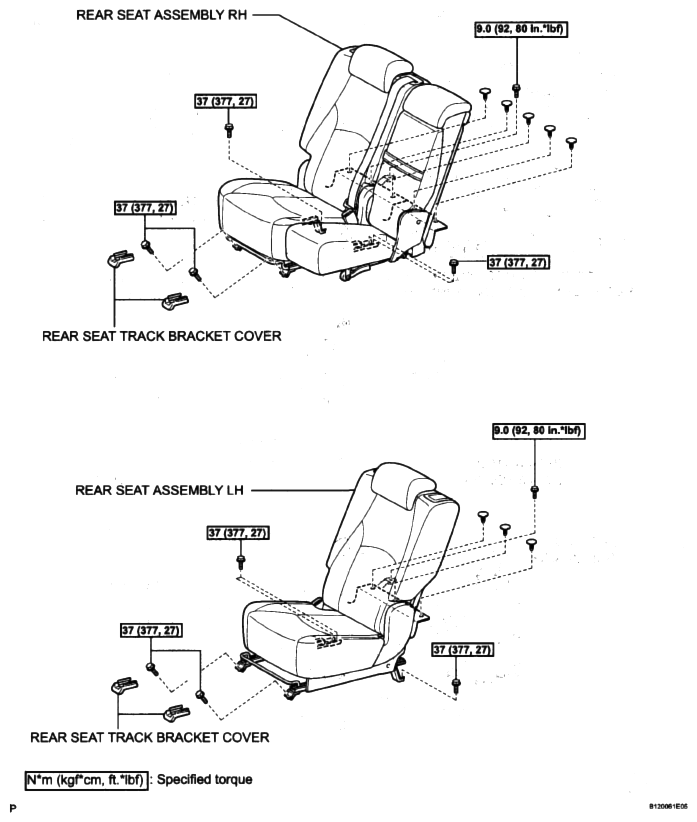

Fig 2: Identifying Roof Headlining Replacement Components With Torque Specifications (2 Of 11)

G05274843

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

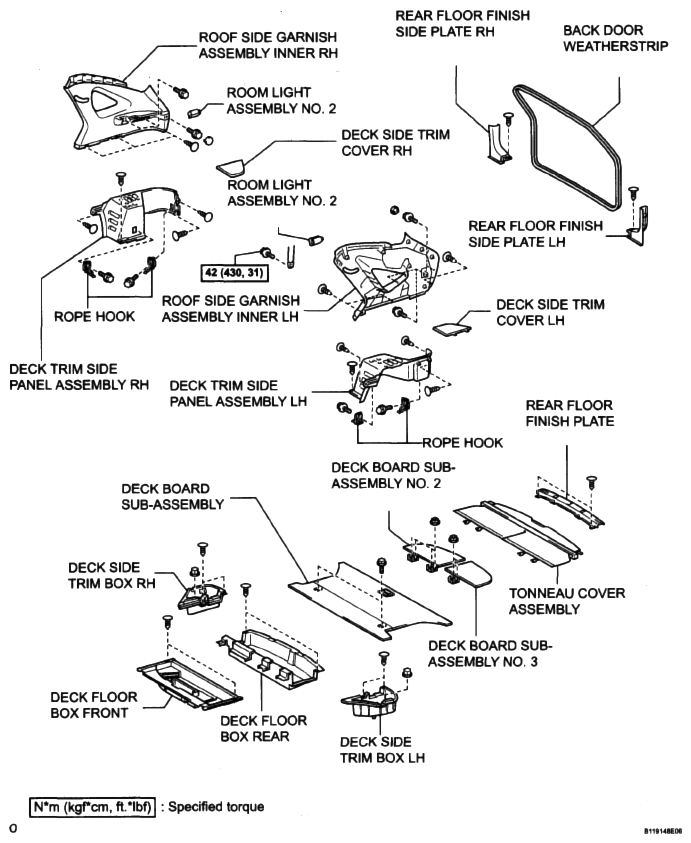

Fig 3: Identifying Roof Headlining Replacement Components With Torque Specifications (3 Of 11)

G05274844

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

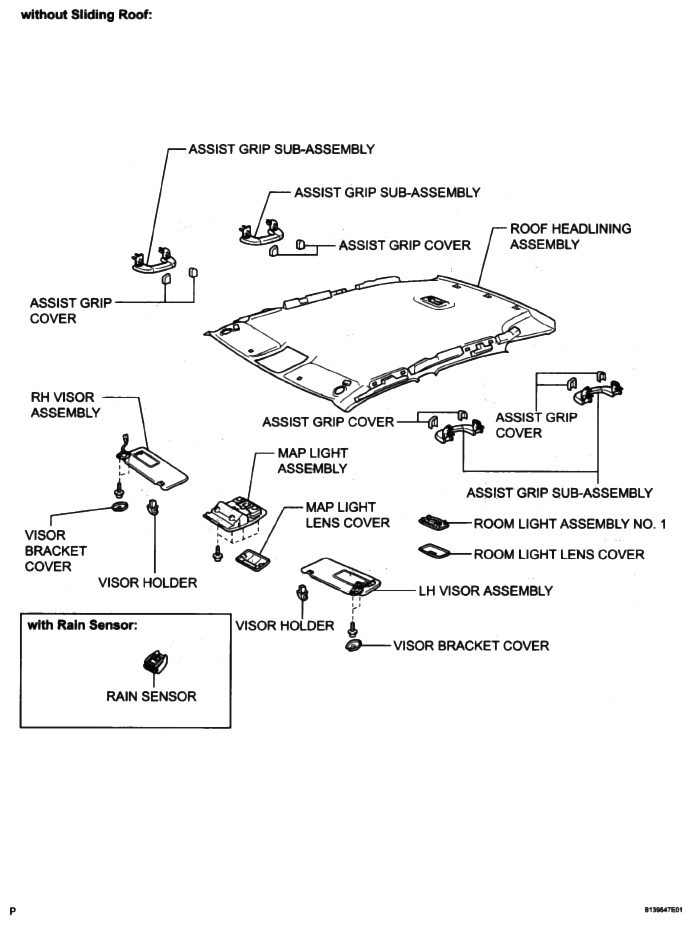

Fig 4: Identifying Roof Headlining Replacement Components (4 Of 11)

G05274845

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

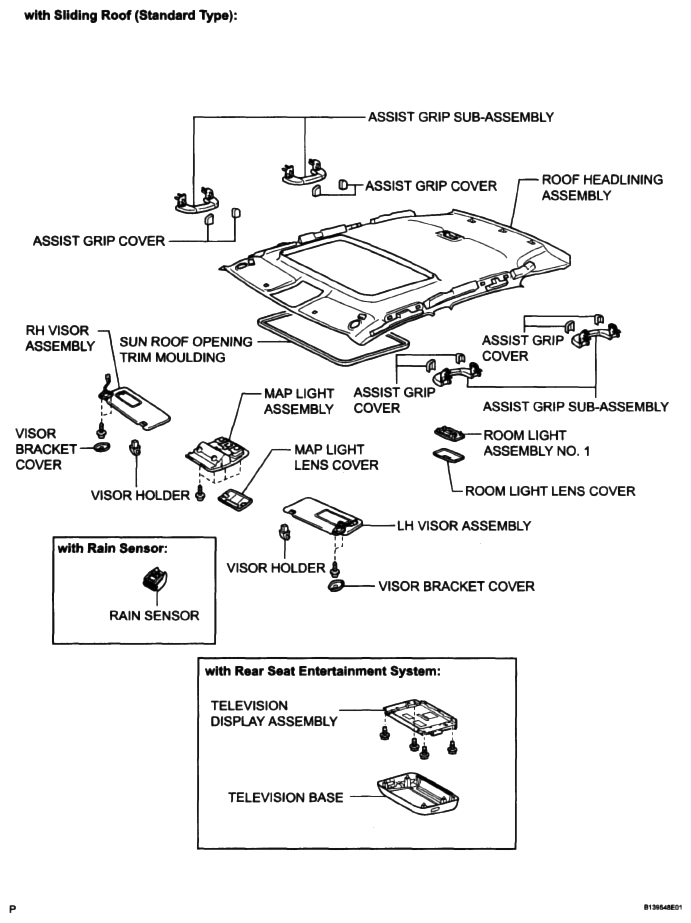

Fig 5: Identifying Roof Headlining Replacement Components (5 Of 11)

G05274846

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

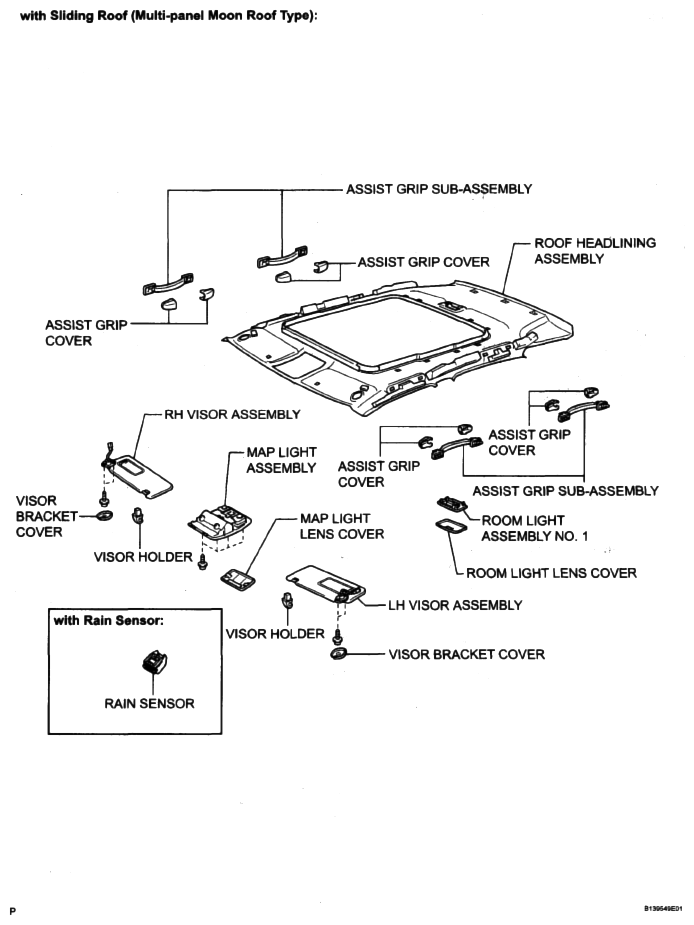

Fig 6: Identifying Roof Headlining Replacement Components (6 Of 11)

G05274847

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

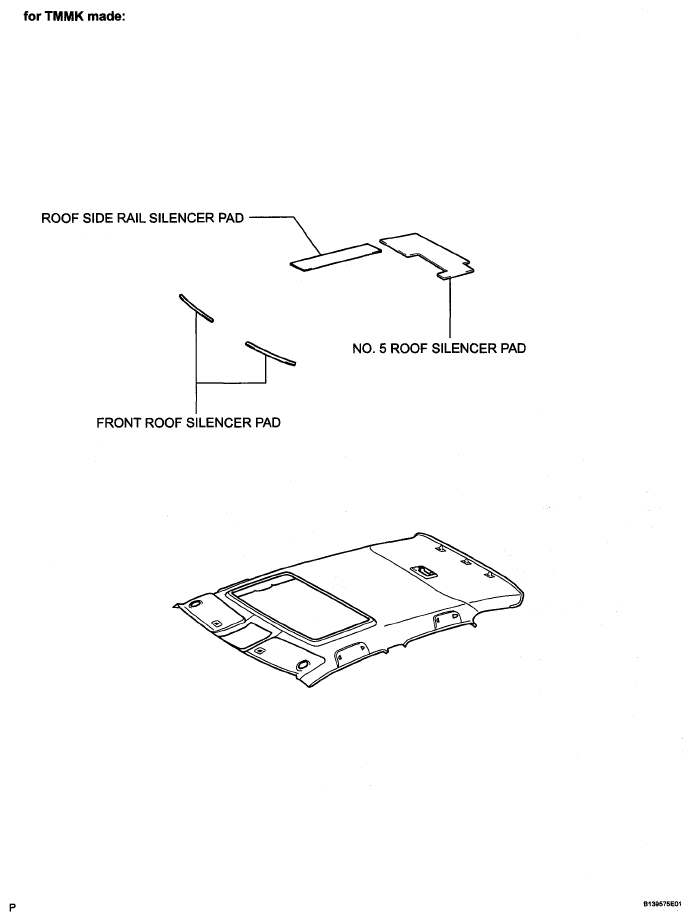

Fig 7: Identifying Roof Headlining Replacement Components (7 Of 11)

G05274848

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

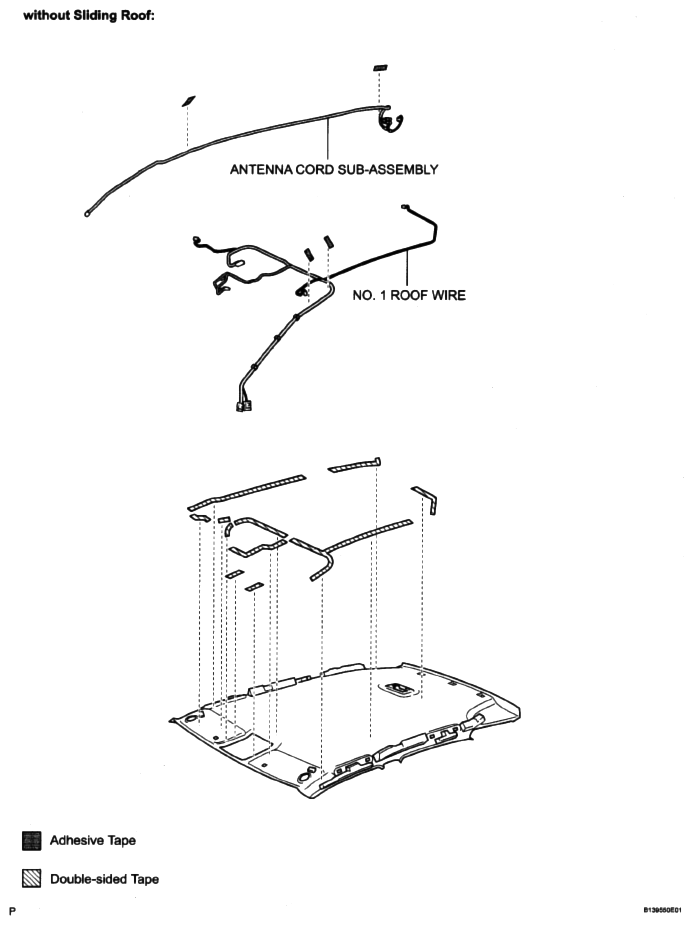

Fig 8: Identifying Roof Headlining Replacement Components (8 Of 11)

G05274849

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

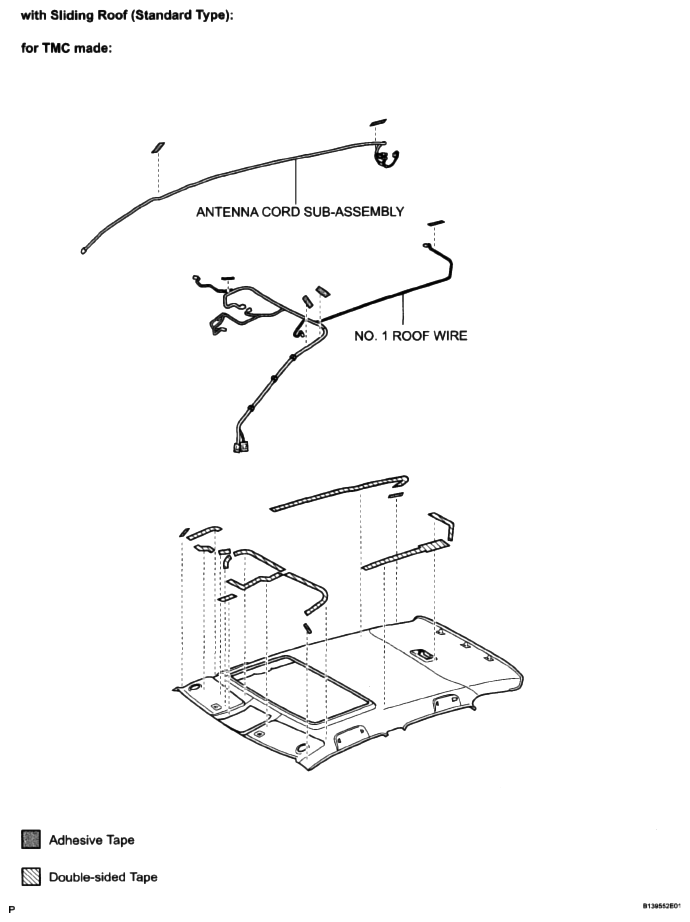

Fig 9: Identifying Roof Headlining Replacement Components (9 Of 11)

G05274850

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

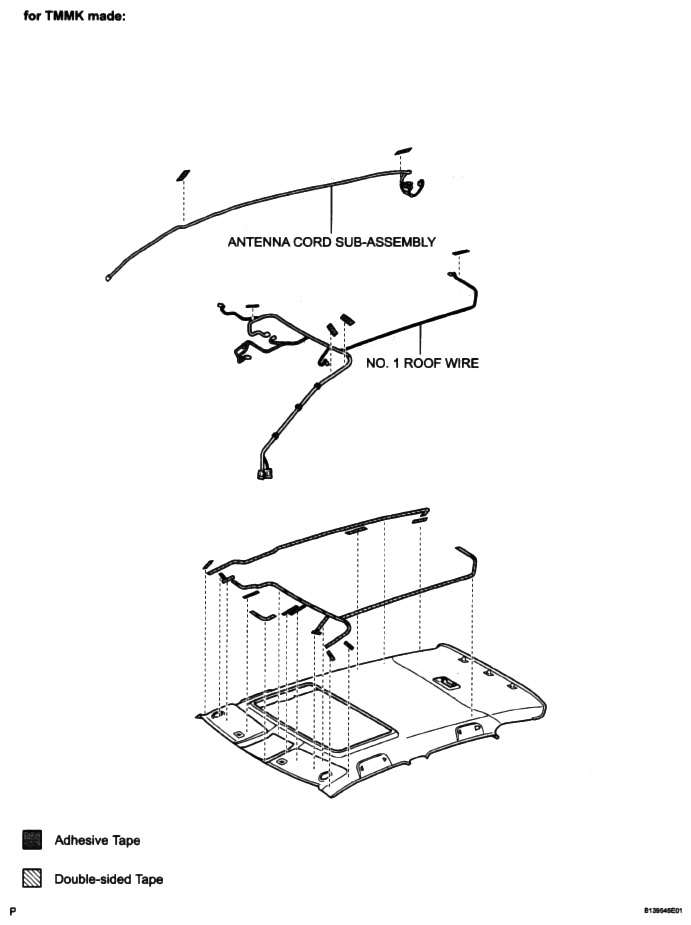

Fig 10: Identifying Roof Headlining Replacement Components (10 Of 11)

G05274851

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

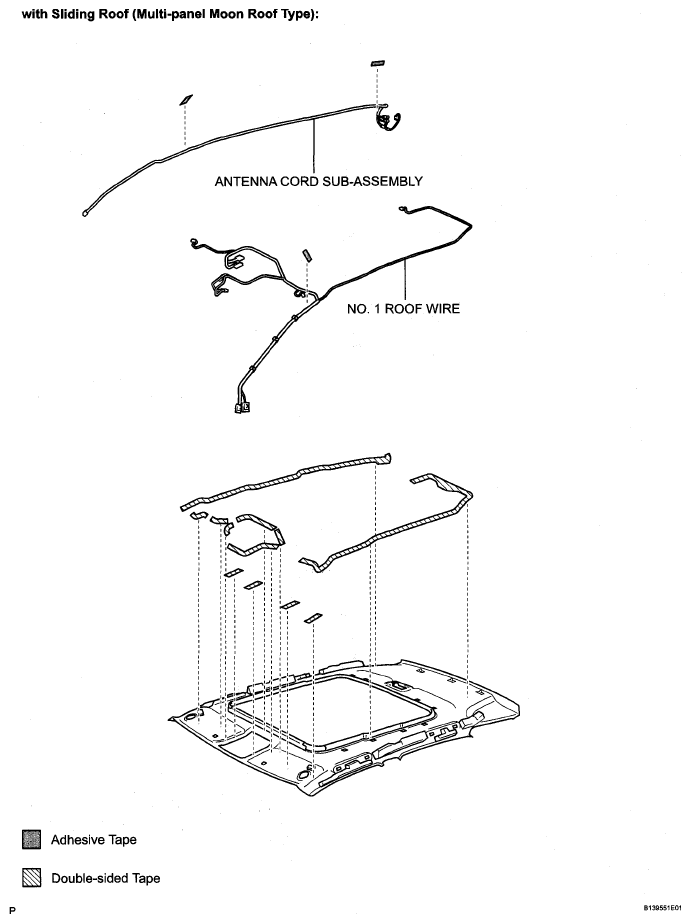

Fig 11: Identifying Roof Headlining Replacement Components (11 Of 11)

G05274852

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
