Engine Immobilizer System: Registration

WARNING: This page is about a different car, the 2008 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. DESCRIPTION OF CODE REGISTRATION

    HINT:

    The key has 2 codes: The key code (immobilizer code) and the wireless code. Both of these codes need to be registered. Refer to the information for the wireless code registration procedures.

    1. When adding master keys or sub keys (Additional registration):
      1. Register key code (immobilizer code) in the transponder key ECU.
        ADDING MASTER KEYS OR SUB KEYS (ADDITIONAL REGISTRATION)

        Target ECU Information
        Transponder key ECU Procedure "A"
    2. When replacing the transponder key ECU (New registration):
      1. Register the key code (immobilizer code) in the transponder key ECU.
        REGISTER KEY CODE (IMMOBILIZER CODE) IN TRANSPONDER KEY ECU

        Target ECU Information
        Transponder key ECU Procedure "B"
      2. Register the ECU communication ID between the ECM and the transponder key ECU.
        REGISTER ECU COMMUNICATION ID BETWEEN ECM AND TRANSPONDER KEY ECU

        Target ECU Information
        Transponder key ECU Procedure "C"
    3. When replacing the ECM:
      1. Register the ECU communication ID between the ECM and the transponder key ECU.
        REPLACING ECM

        Target ECU Information
        Transponder key ECU Procedure "C"
  2. KEY REGISTRATION
    1. Automatic registration (Procedure "B"):

      The new registration of the key codes (immobilizer codes) is made automatically.

      HINT:

      • When installing a new transponder key ECU, the key codes (immobilizer codes) must be registered:
      • A new transponder key ECU starts in the automatic key code registration mode. In this mode, a maximum of 4 key codes for 3 master keys and 1 sub key can be registered. Since the transponder key ECU can distinguish types of keys, any registration order is acceptable.

      Automatic Key Code Registration (New Registration):

      AUTOMATIC KEY CODE REGISTRATION (NEW REGISTRATION)

      Procedure Security Indicator Condition
      Start (Procedure "D") Blinking occurs until the first key is inserted.
      Insert the key into the ignition key cylinder. ON
      Registration begins.
      HINT:
      The registration will be completed approx. 1 sec. after the key is inserted.      		 OFF
      HINT:
      Approx. 1 sec.
      Remove the key. ON
      HINT:
      When the maximum number of the key codes is registered, the security indicator remains off until the last key registered is removed. After it is removed, the security indicator starts blinking.
      Register another key ?
      Yes: Go to procedure "D"
      No: Go to procedure "E"
      End (Procedure "E")

      HINT:

      • When no key is inserted in the key cylinder while the system is in automatic key code registration mode, the security indicator remains on.
      • When the immobilizer system is operating normally and the key is pulled out, the security indicator blinks continuously.
      • If the key code registration has failed in the automatic key code registration mode, code 2-1 will be output from the security indicator. Trying to register an already registered key will cause code 2-2 to be output when the key is inserted. If the number of registered key codes exceeds the limit, code 2-3 will be output from the security indicator. The output details are shown below.

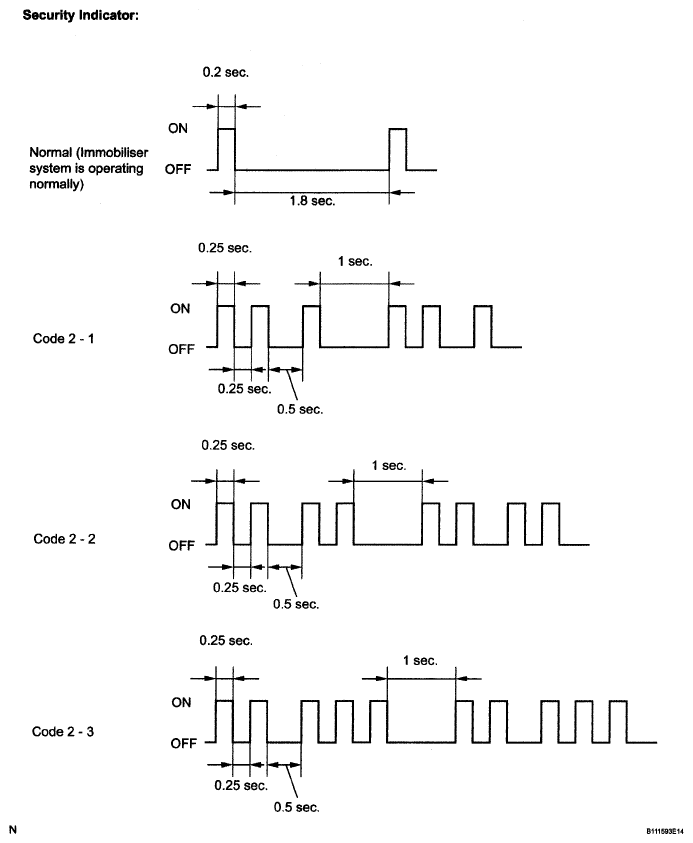

        Fig 1: Identifying Security Indicator Waveform Graph
        G04966225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Finish the automatic key code registration mode. The automatic key code registration mode can be forced to end, when at least 1 key code (immobilizer code) for the master key has been registered.
      1. Turn the ignition switch on and off 5 times within 10 seconds using the master key that has already been registered.
  3. REGISTRATION OF ADDITIONAL KEY
    1. Additional registration (Procedure "A"):

      Register an additional key by using the intelligent tester.

      HINT:

      • A maximum of 5 key codes and 3 sub key codes can be registered.
      • Registration mode will end if any step is not completed within the specified time.
      • When the ignition cylinder or the key cylinder set is replaced, remove the transmitter module from the original master key. Then install this transmitter module to a new key and use it as the master key. If necessary, use this master key to register other keys.
        NOTE: When only the ignition key cylinder has been replaced, you can lock or unlock doors by wireless operation using the new key with built in transmitter but not by inserting it in the door key cylinder. Therefore, keep the original key for the door lock or unlock operation in order to avoid malfunctions caused by a dead transmitter battery in the new key.

      Additional Registration:

      ADDITIONAL REGISTRATION

      Procedure Time (Completion of operation) Security Indicator Condition
      Start - Indicator blinks until the first key is inserted.
      Insert the already registered master-key in the Ignition key cylinder and turn the ignition switch on.
      Intelligent tester operation
      1. Select IMMOBILIZER
      2. Select ID UTILITY
      3. Select IMMOB CODE REG

      HINT:
      After completing the above operation, proceed to the next step in accordance with the prompts on the tester screen.      		 Within 120 sec. OFF
      Remove the master key. Within 20 sec. of the instruction on the tester ON
      Insert the key to be registered in the ignition key cylinder. Within 10 sec.
      After 60 sec. the key is registered.
      HINT:
      The security indicator goes off.      		 - Blinking
      Next OFF
      End
      NOTE: If the key code registration has failed in automatic key code registration mode, code 2-1 will be output from the security indicator. Trying to register an already registered key will cause code 2-2 to be output when the key is inserted. If the number of registered key codes exceeds the limit, code 2-3 will be output from the security indicator. The output details are shown in procedure "B".

      HINT:

      • A brief outline of procedures for key code registration is shown above. For detailed information, refer to the screen of the intelligent tester.
      • When the immobilizer system is operating normally and the key is pulled out, the security indicator will blink.
  4. ERASURE OF KEY CODE
    1. Erase the key codes by using the intelligent tester.

      HINT:

      • All key codes will be erased except for the master key which is used for erasing the key codes. In order to use a key for which the code has been erased, it is necessary to register the key code again.
      • The registration operation will be cancelled if any step is not completed within the specified time.

      Erasing Key Code:

      ERASING KEY CODE

      Procedure Time (Operation Completion Time) Security Indicator Condition
      Start - Indicator blinks until the first key is inserted.
      Insert the already registered master key in the ignition key cylinder and turn the ignition switch on.
      Intelligent tester operation
      1. Select IMMOBILIZER
      2. Select ID UTILITY
      3. Select IMMOB CODE ERA

      HINT:
      After completing the above operation, proceed to the next step in accordance with the prompts on the tester screen.      		 Within 120 sec. OFF
      Remove the master key. Within 10 sec. of the instruction on the tester ON for 1 sec. then OFF
      Next - Blinking
      End

      HINT:

      • A brief outline of procedures for key code registration is shown above. For detailed information, refer to the screen of the intelligent tester.
      • When the immobilizer system is operating normally and the key is pulled out, the security indicator will blink.
  5. ECU COMMUNICATION ID REGISTRATION
    NOTE:
    • The ECU communication ID should be registered when the transponder key ECU and/or the ECM is replaced in order to match it to the ECM communication ID.
    • The SFI system cannot be started unless the ECM communication ID matches.
    1. ECU communication ID registration (Procedure "C"):

      Register the ECU communication ID, after the transponder key ECU and/or the ECM is replaced.

      1. Using SST, connect terminals TC and CG of the DLC3.

        SST 09843-18040

        Fig 2: Connecting Terminals TC & CG Of DLC3 Connector Using SST
        G05236763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Turn the ignition switch to the ON position and leave the vehicle as is for 30 minutes.
      3. Check that the engine starts.
