Remote Up/Down Function Does Not Operate: Wiring Diagram

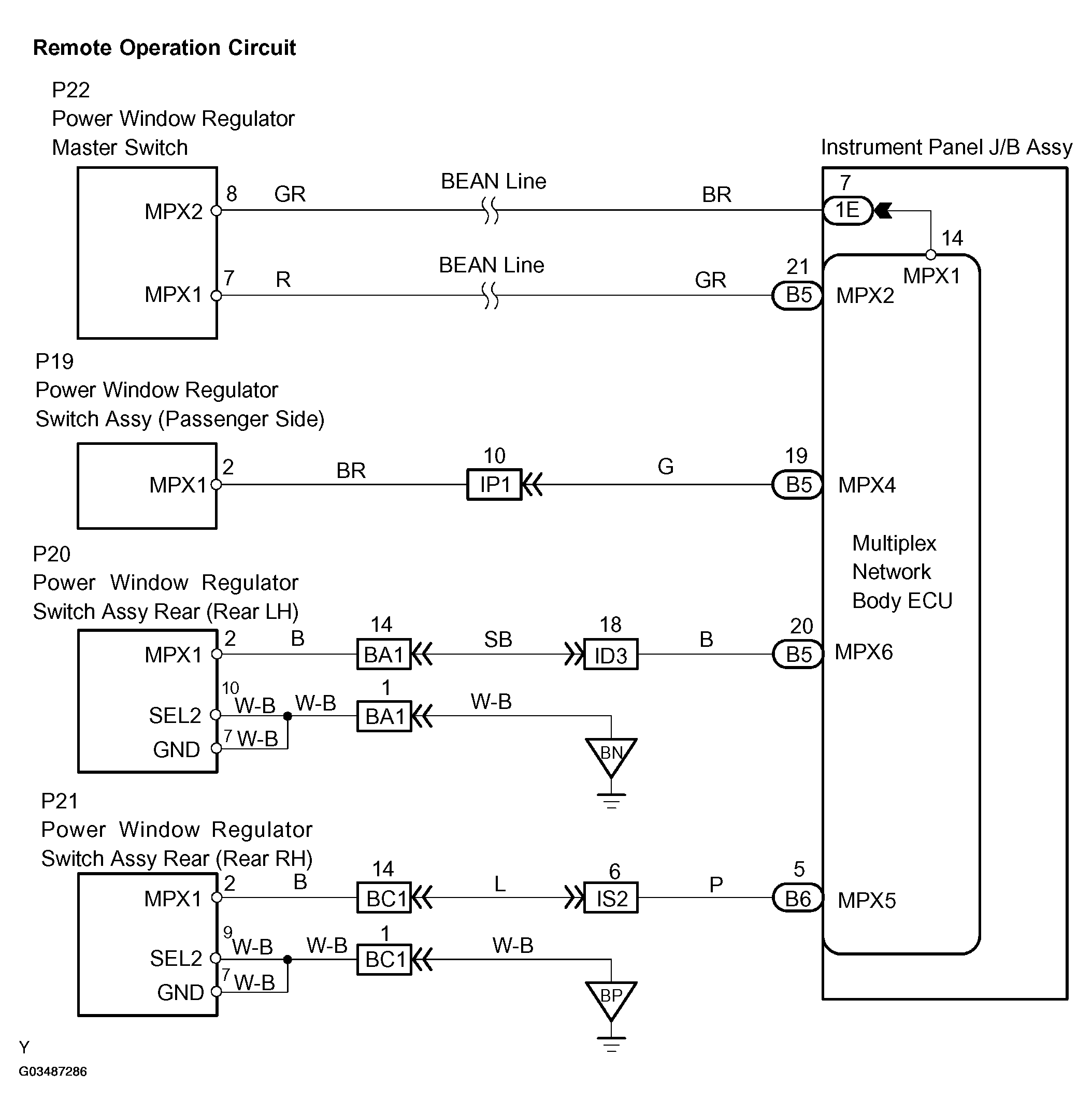

Fig 1: Wiring Diagram - Remote Operation Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

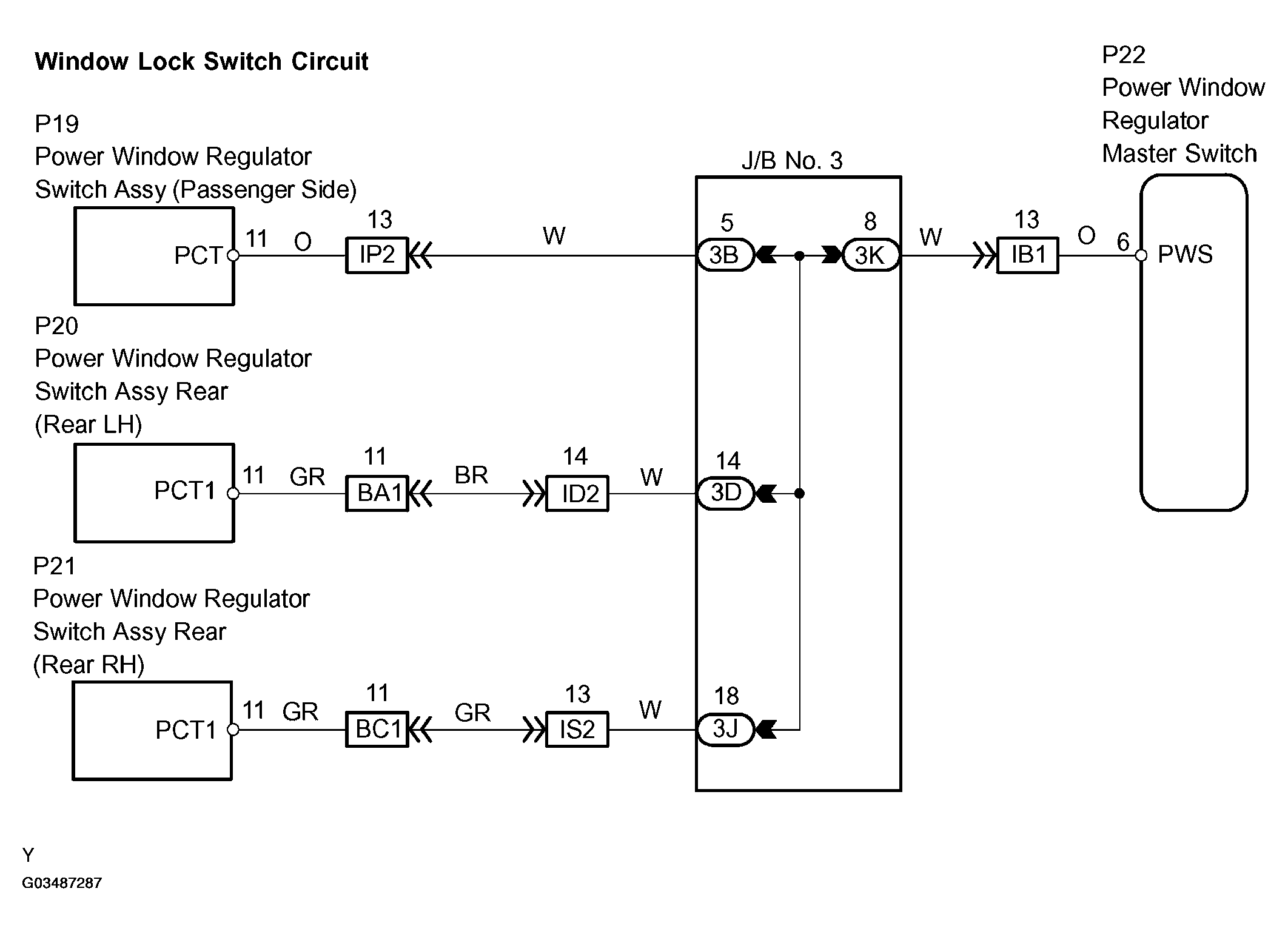

Fig 2: Wiring Diagram - Window Lock Switch Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
