Power Window Control System - Diagnosis
›
Auto Up/Down Function Does Not Operate At Rear RH
›
Wiring Diagram
Auto Up/Down Function Does Not Operate At Rear RH: Wiring Diagram

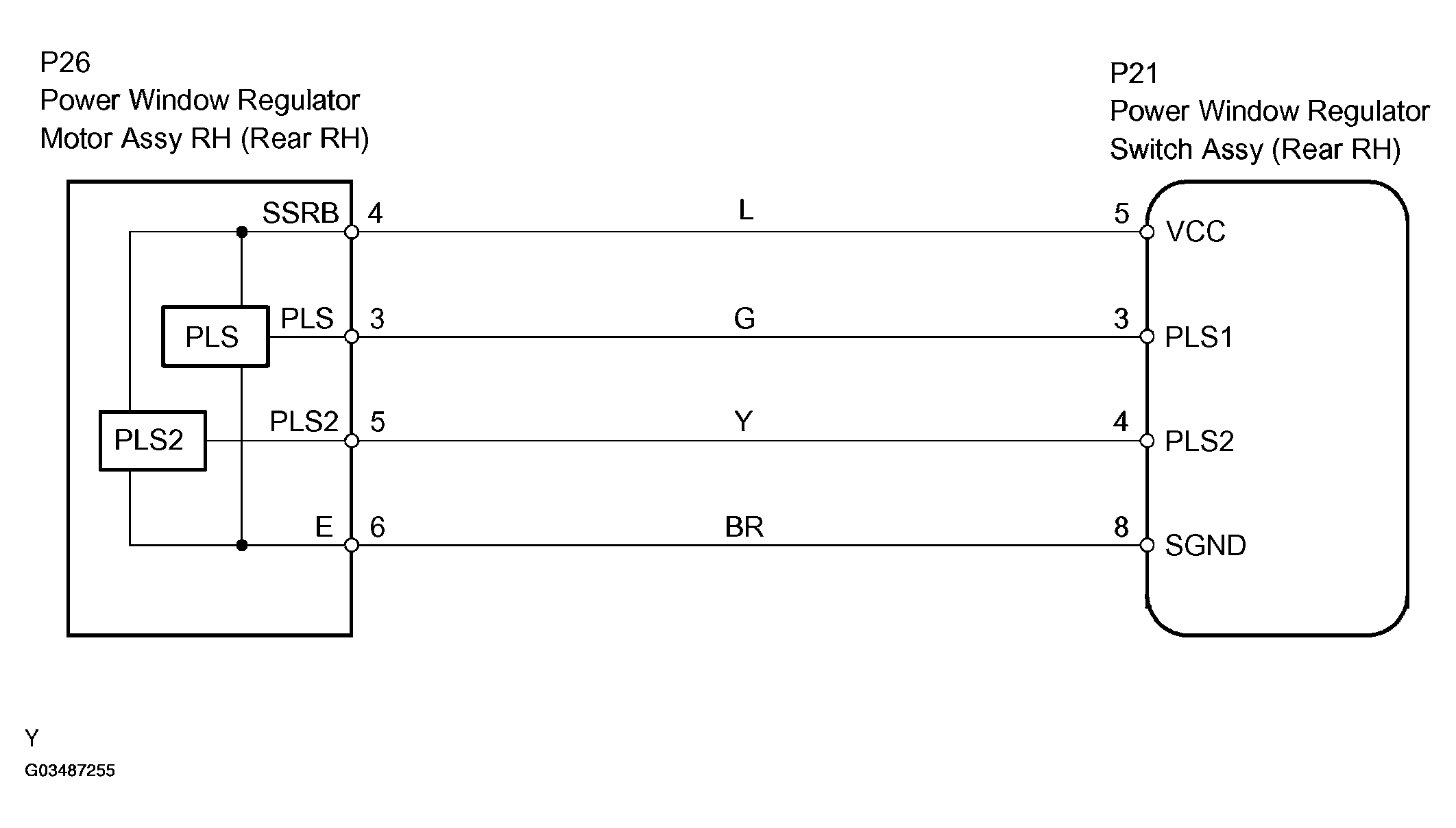

Fig 1: Wiring Diagram - Auto UP/DOWN Function Not Operate At Rear RH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
