Mayday ASSY: Components

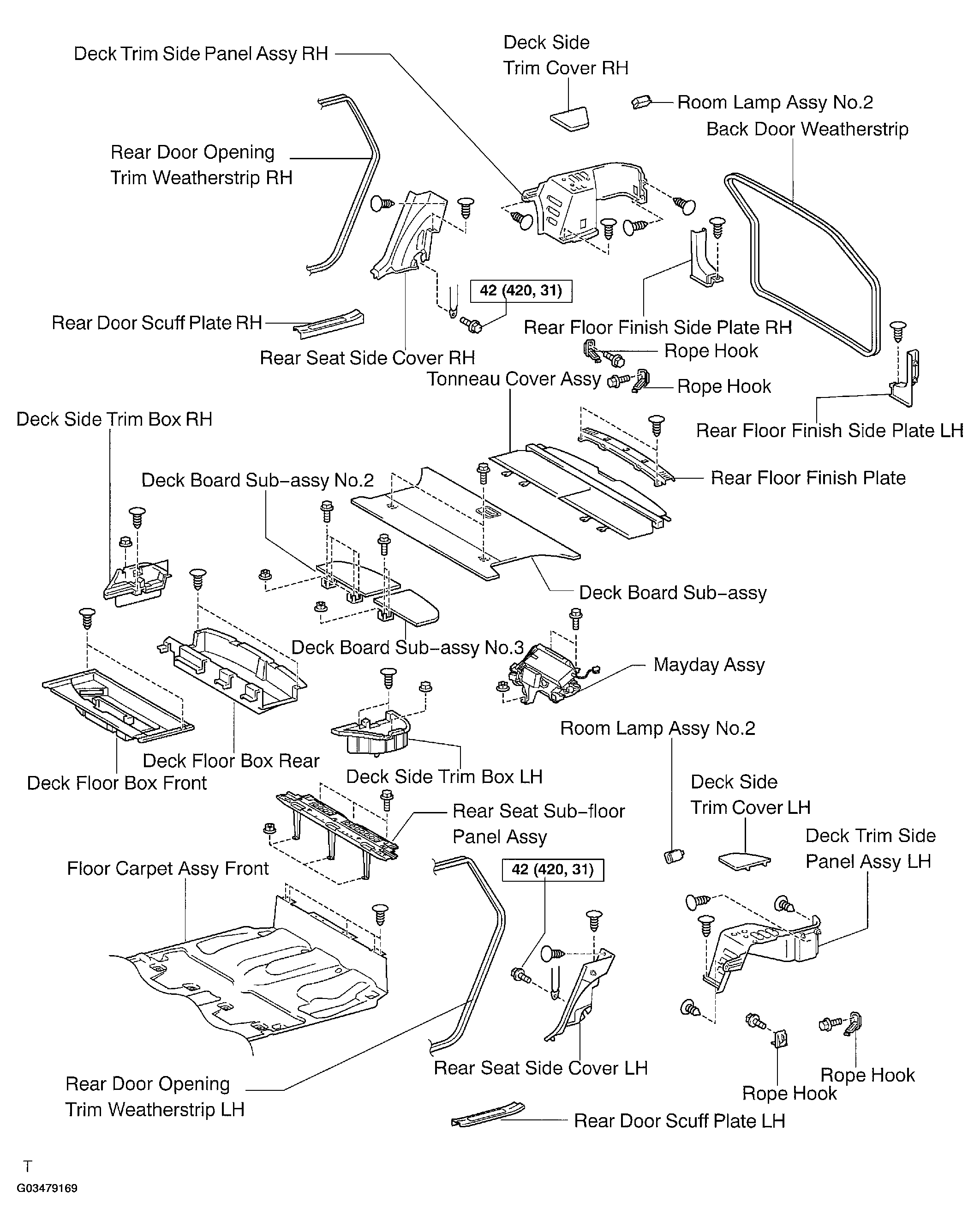

Fig 1: Exploded View Of Mayday Assy Components (1 Of 2)
G03479169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

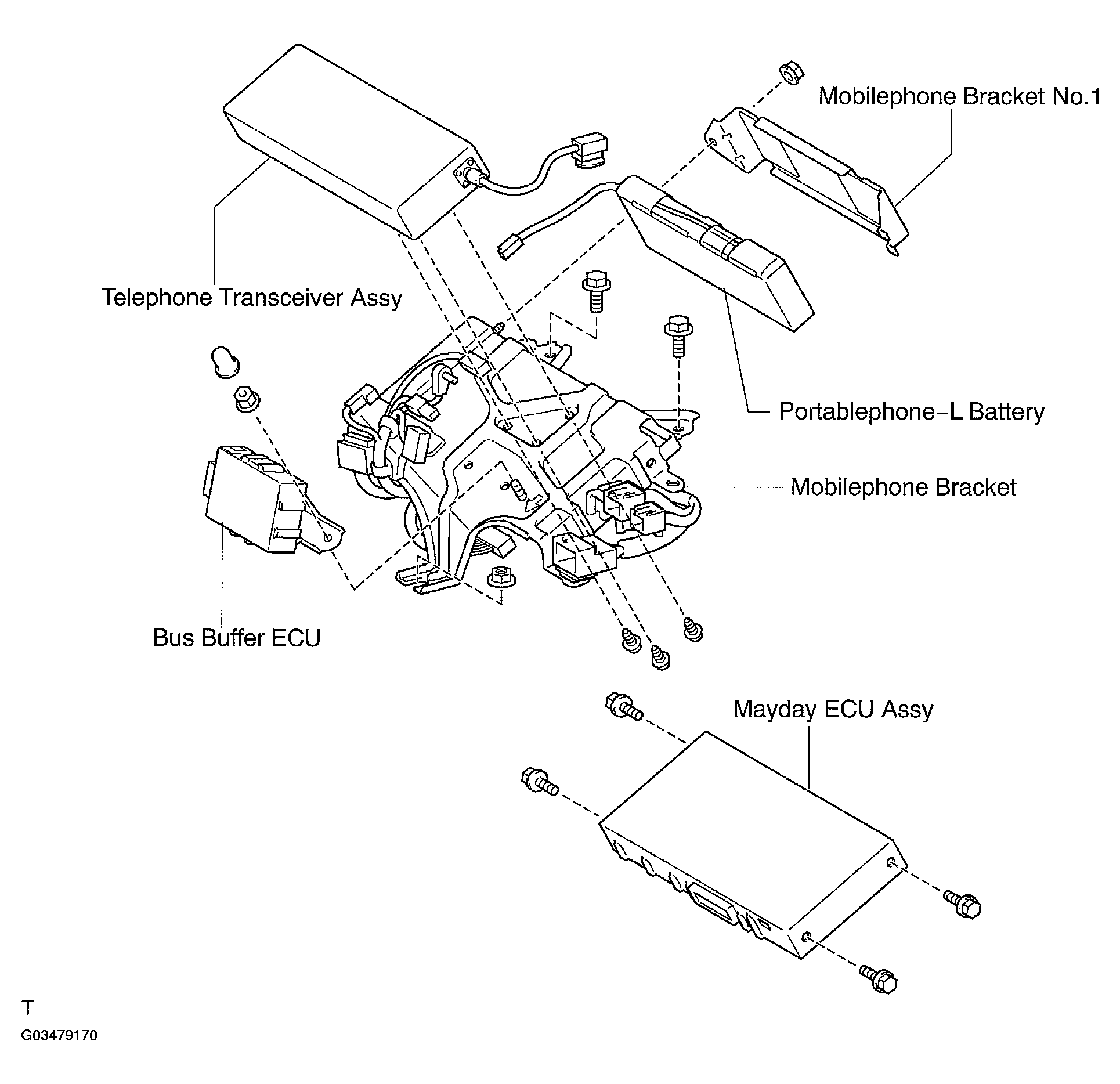

Fig 2: Exploded View Of Mayday Assy Components (2 Of 2)
G03479170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
