ACIS Control Circuit: Wiring Diagram

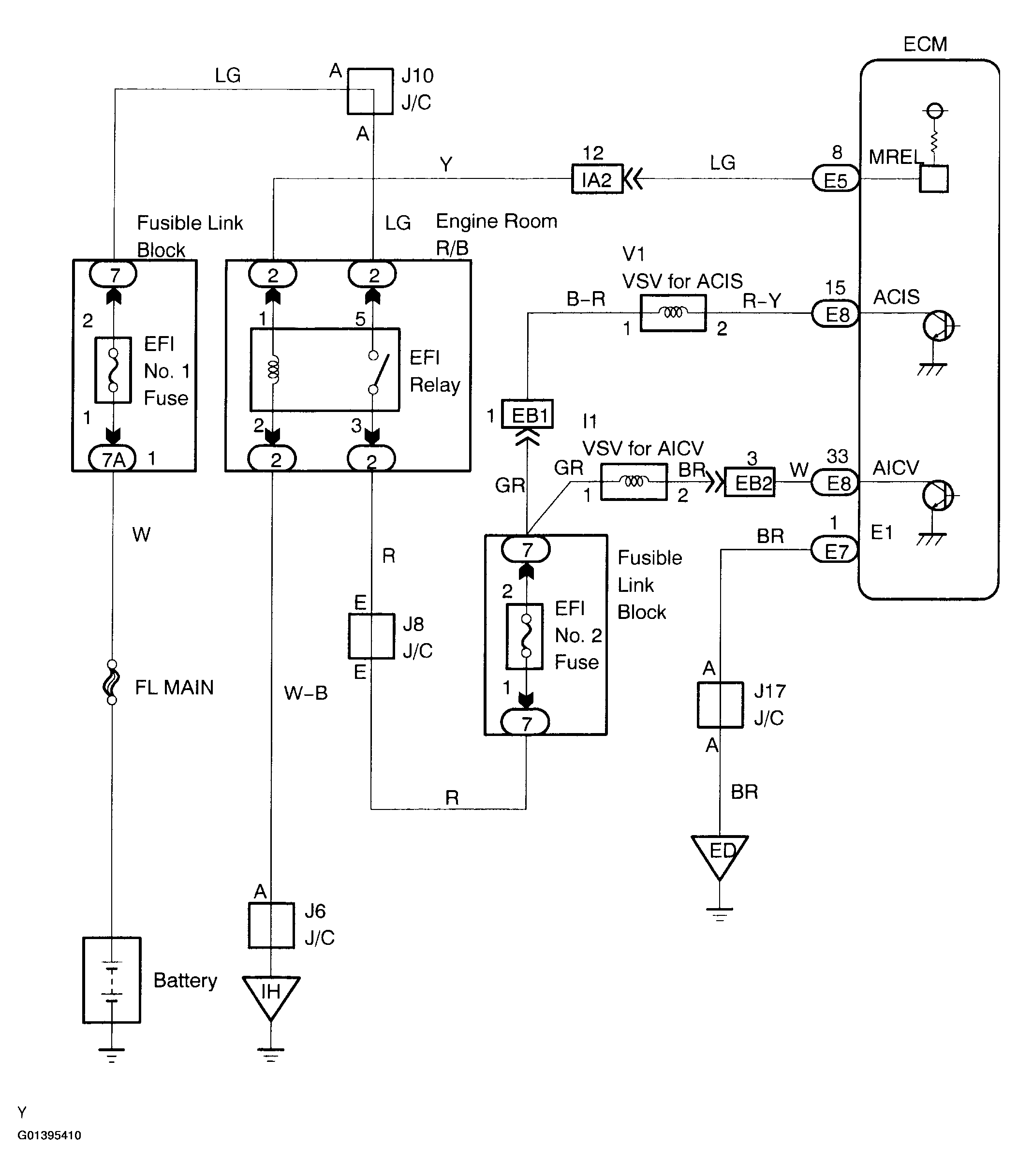

Fig 1: ACIS Control Circuit
G01395410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
