Home › Lexus › 2004 › RX 330 FWD › Repair and Diagnosis › Engine Performance › System › SFI System - Diagnosis › Location

SFI System - Diagnosis: Location

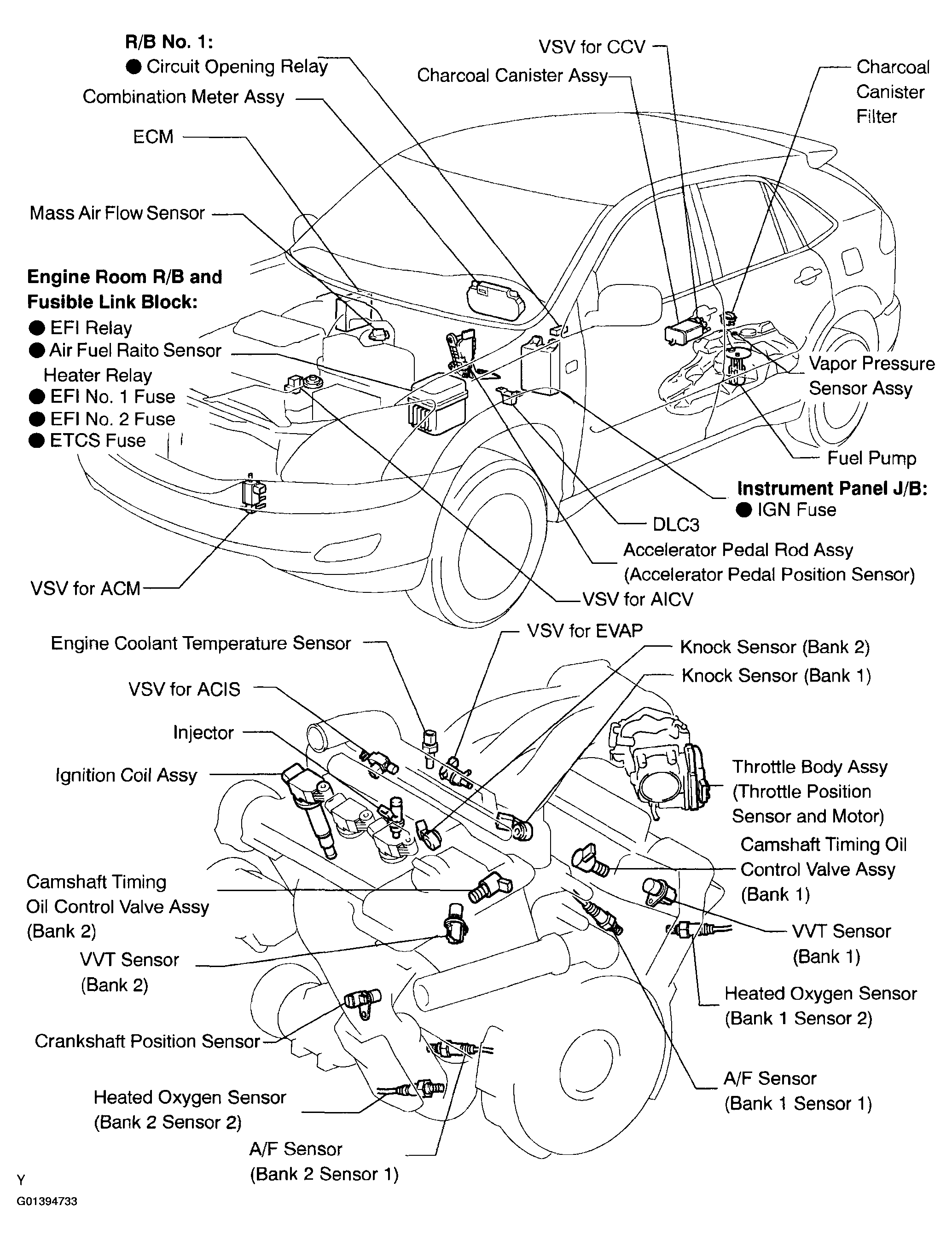

Fig 1: Identifying SFI System Component Locations
G01394733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
