Radio Receiver ASSY: Replacement

WARNING: This page is about a different car, the 2005 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT BATTERY NEGATIVE TERMINAL (See PRECAUTION )
REMOVE SHIFT LEVER KNOB SUB-ASSY (See OVERHAUL )
REMOVE CONSOLE PANEL UPPER FRONT (See REPLACEMENT )
REMOVE INSTRUMENT PANEL FINISH PANEL LOWER (See REPLACEMENT )

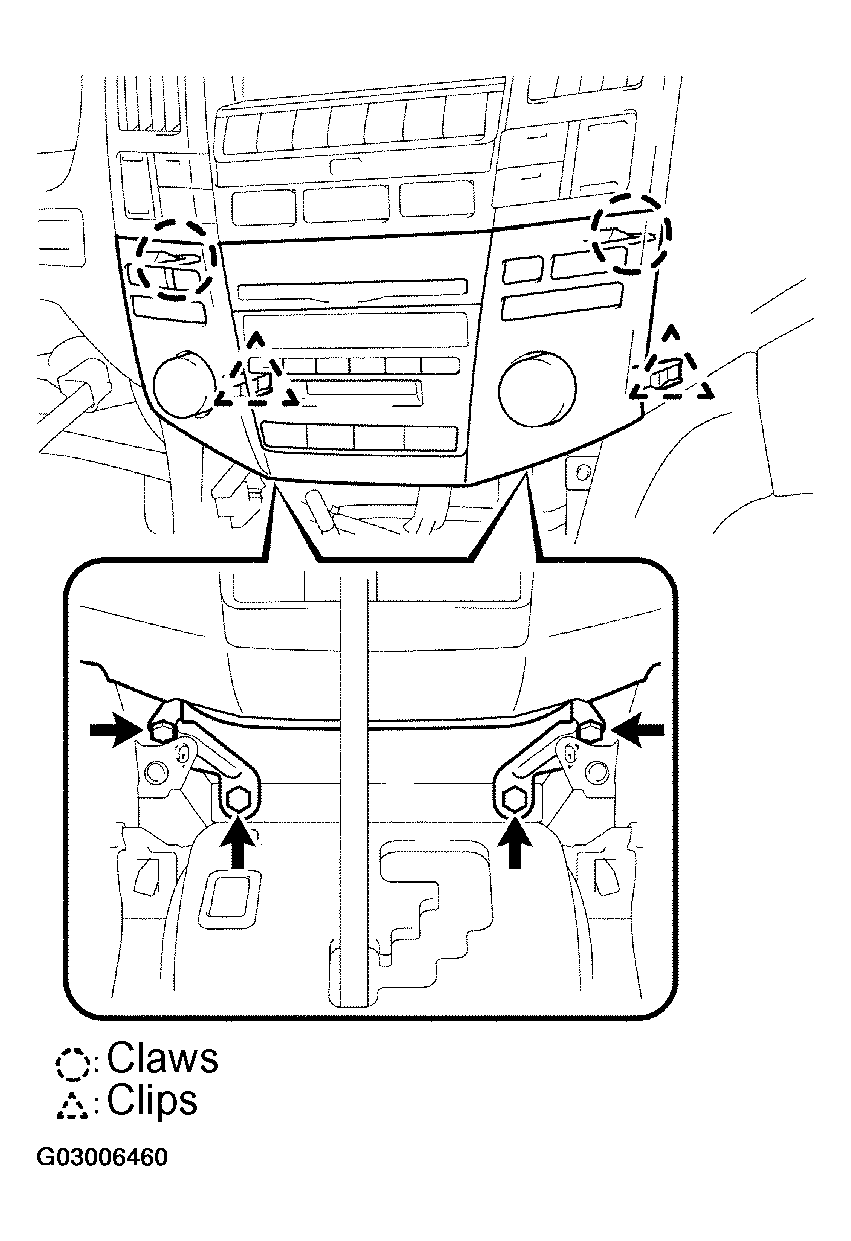

REMOVE RADIO RECEIVER ASSEMBLY W/B RACKET
1. Remove the 4 bolts.
2. Disengage the 2 claws and the 2 clips.
3. Disconnect the connector.
4. Remove the radio receiver assembly w/bracket.
REMOVE RADIO BRACKET NO. 1

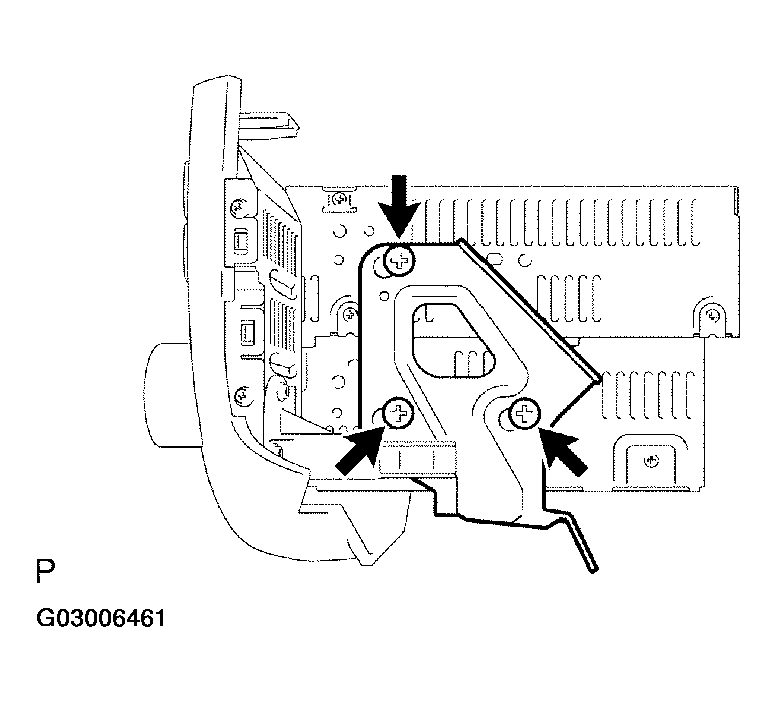

1. Remove the 3 screws and the radio bracket No. 1.

  Fig 2: Locating Radio Bracket No. 1 Removing Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIO BRACKET NO. 2

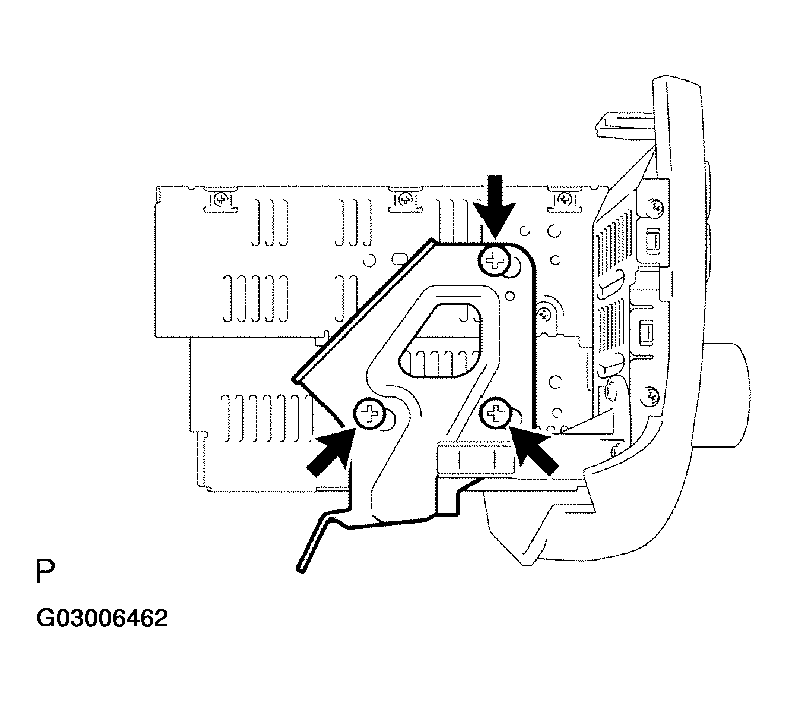

1. Remove the 3 screws and the radio bracket No.2.

  Fig 3: Locating Radio Bracket No.2 Removing Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIO RECEIVER ASSY
