Vehicle Lift And Support Locations

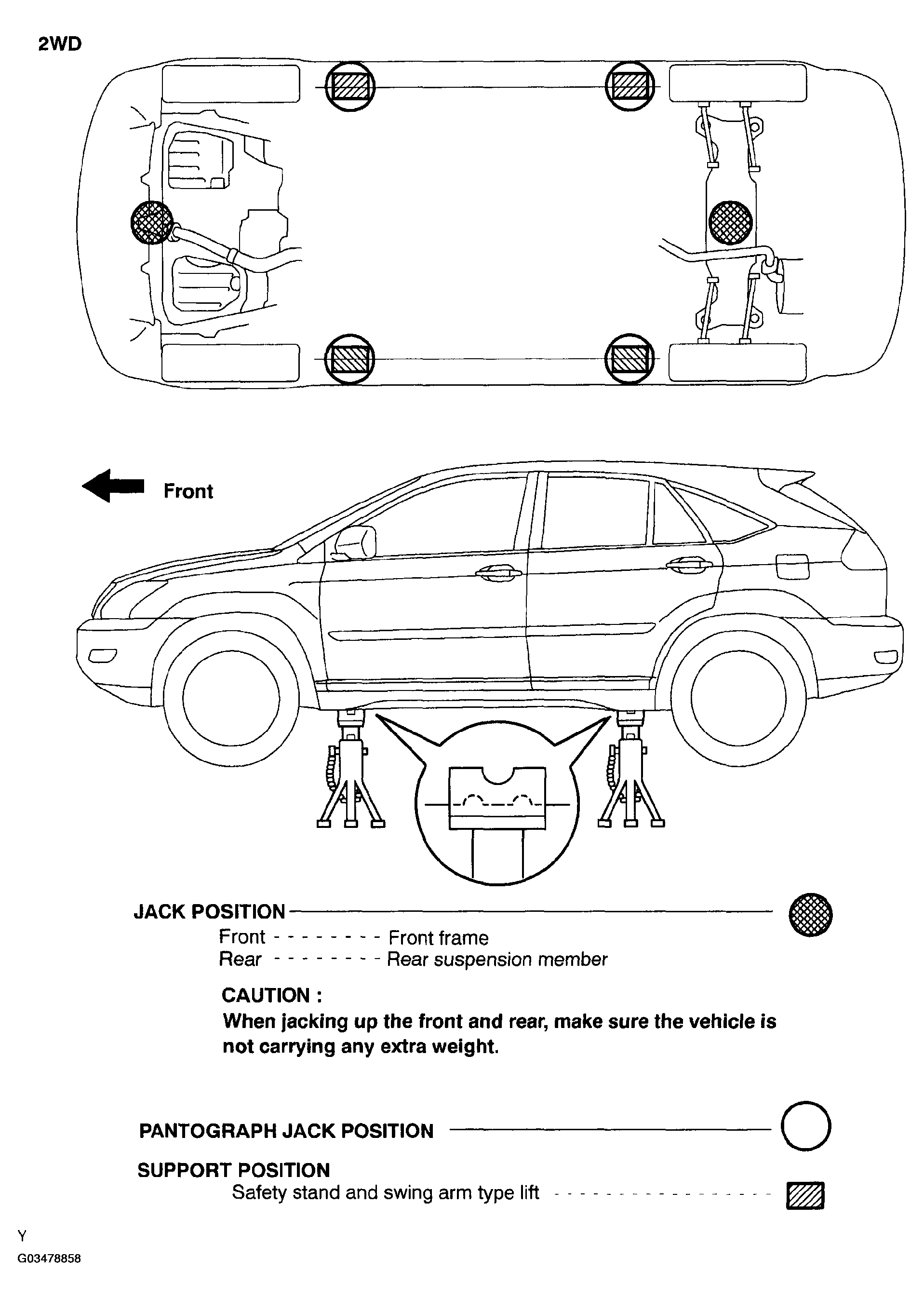

Fig 1: Locating Vehicle Lift And Support Point (2WD)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

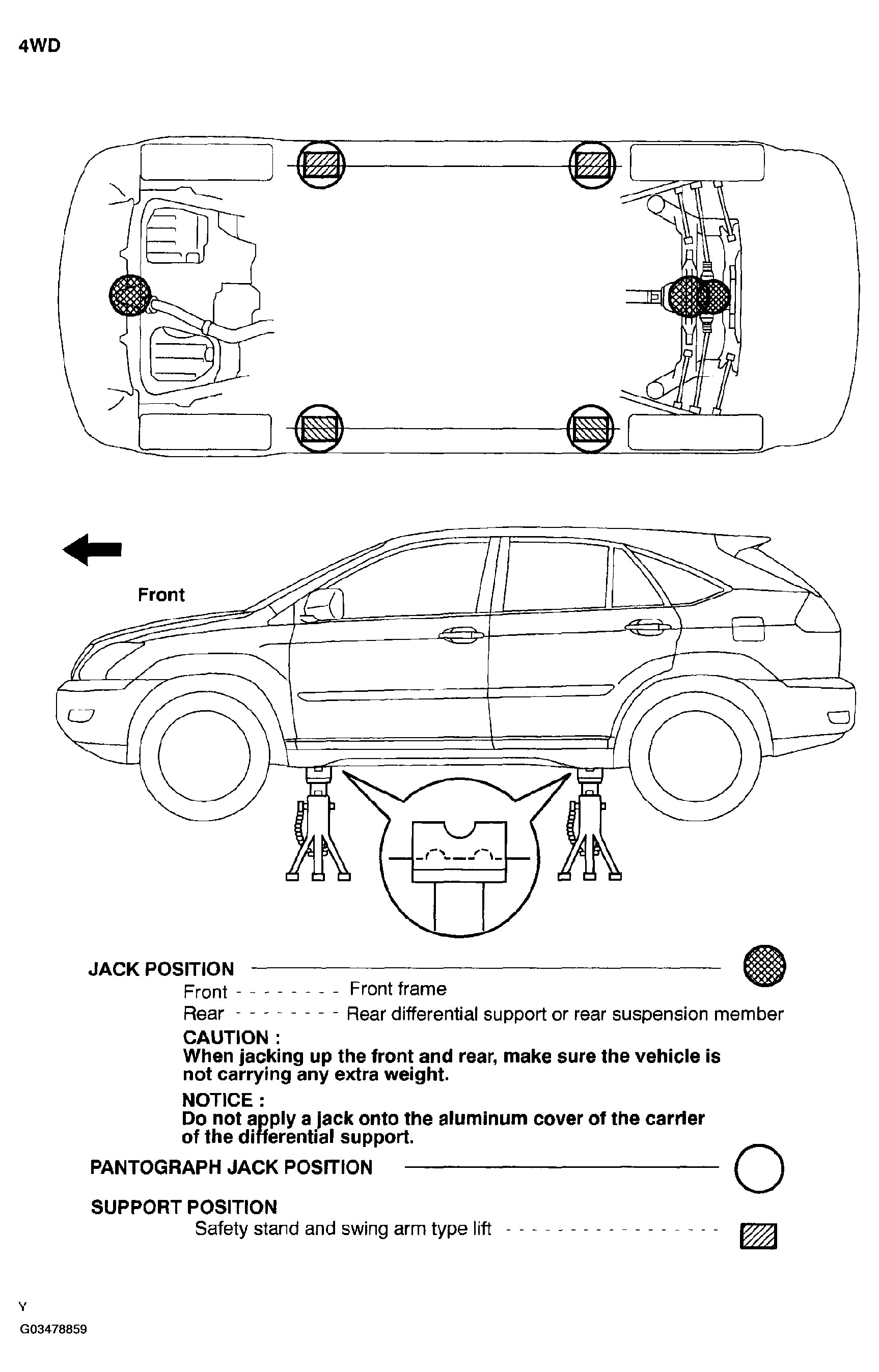

Fig 2: Locating Vehicle Lift And Support Point (4WD)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

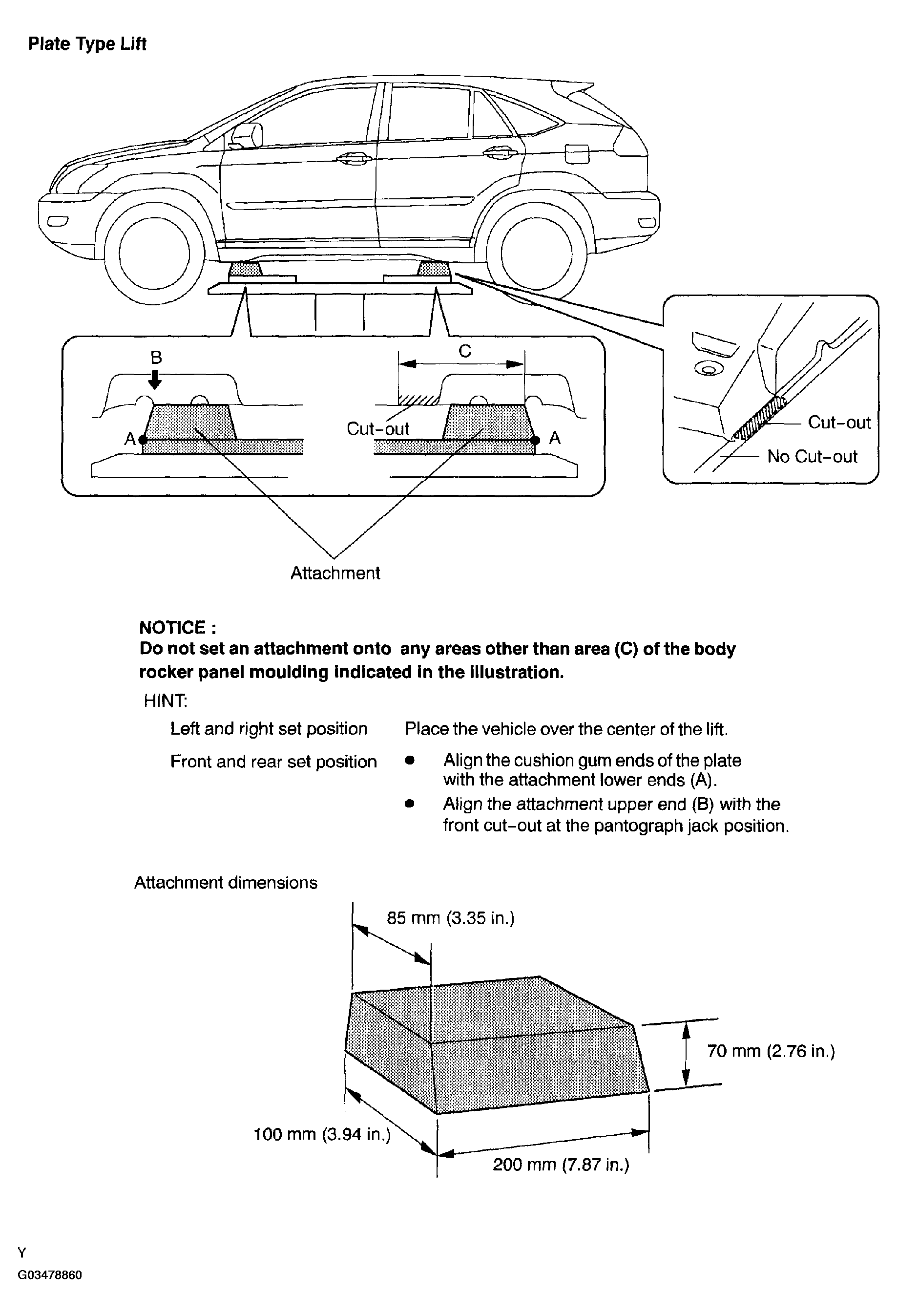

Fig 3: Locating Vehicle Lift And Support Point (Plate Type Lift)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
