Inner Rear View Mirror: Components: Notes

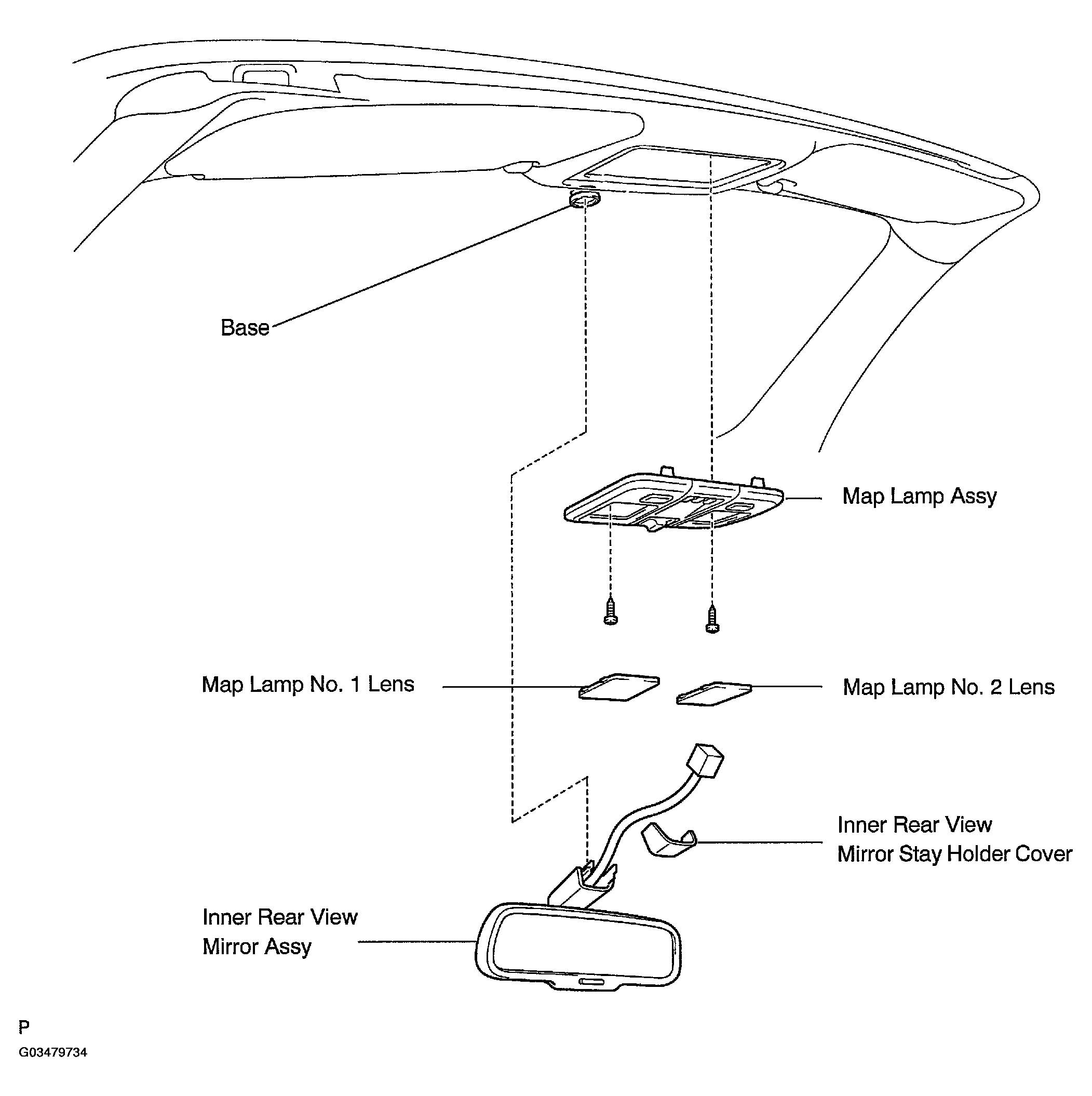

Fig 1: Identifying Inner Rear View Mirror Assy Components

G03479734

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
