Problem Symptoms Table

TROUBLESHOOTING FOR EACH PROBLEM SYMPTOM
NOTE: Confirm the problem symptom and make an inspection depending on the applicable flow chart.

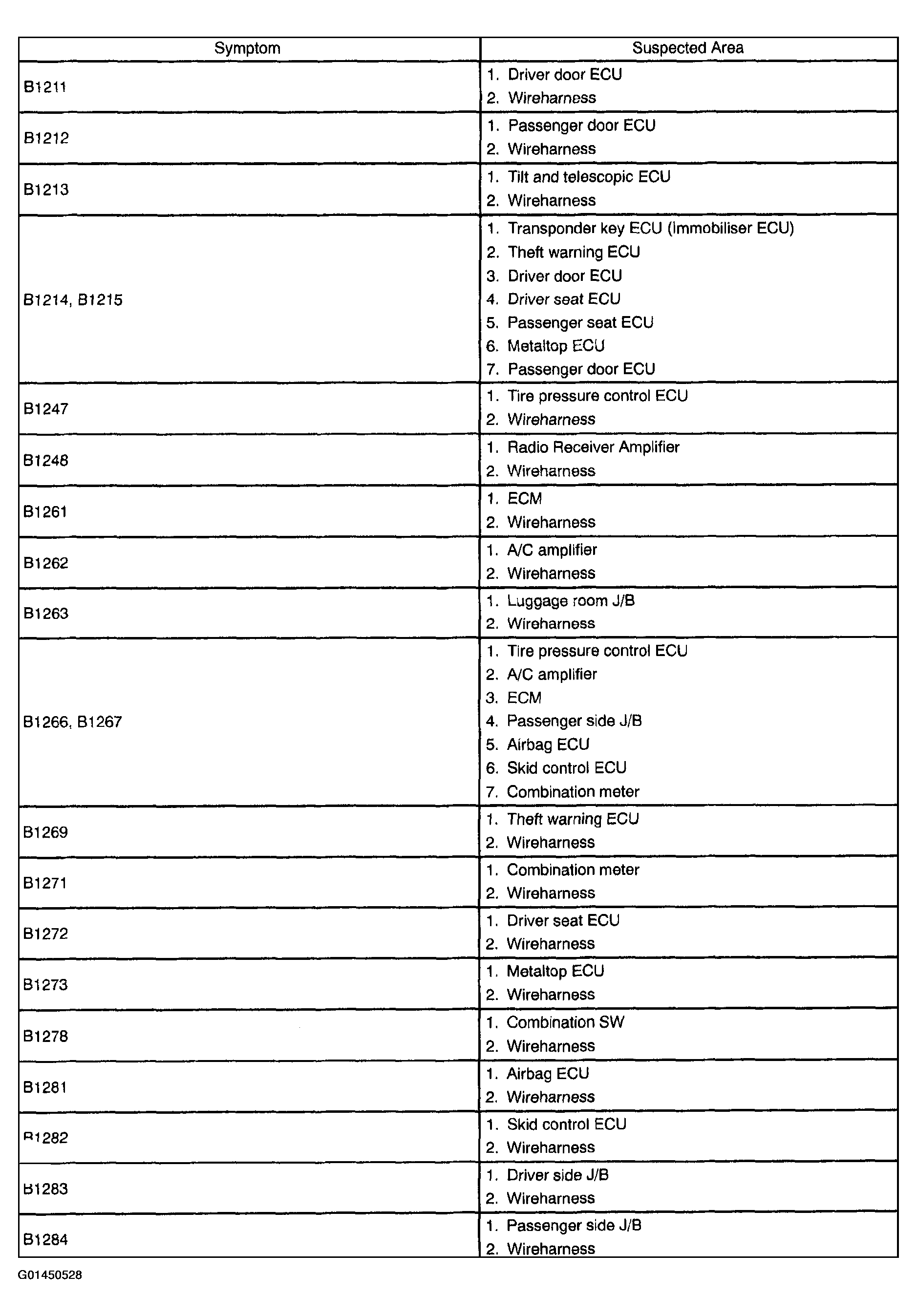

Fig 1: Problem (DTC) Symptoms Table (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

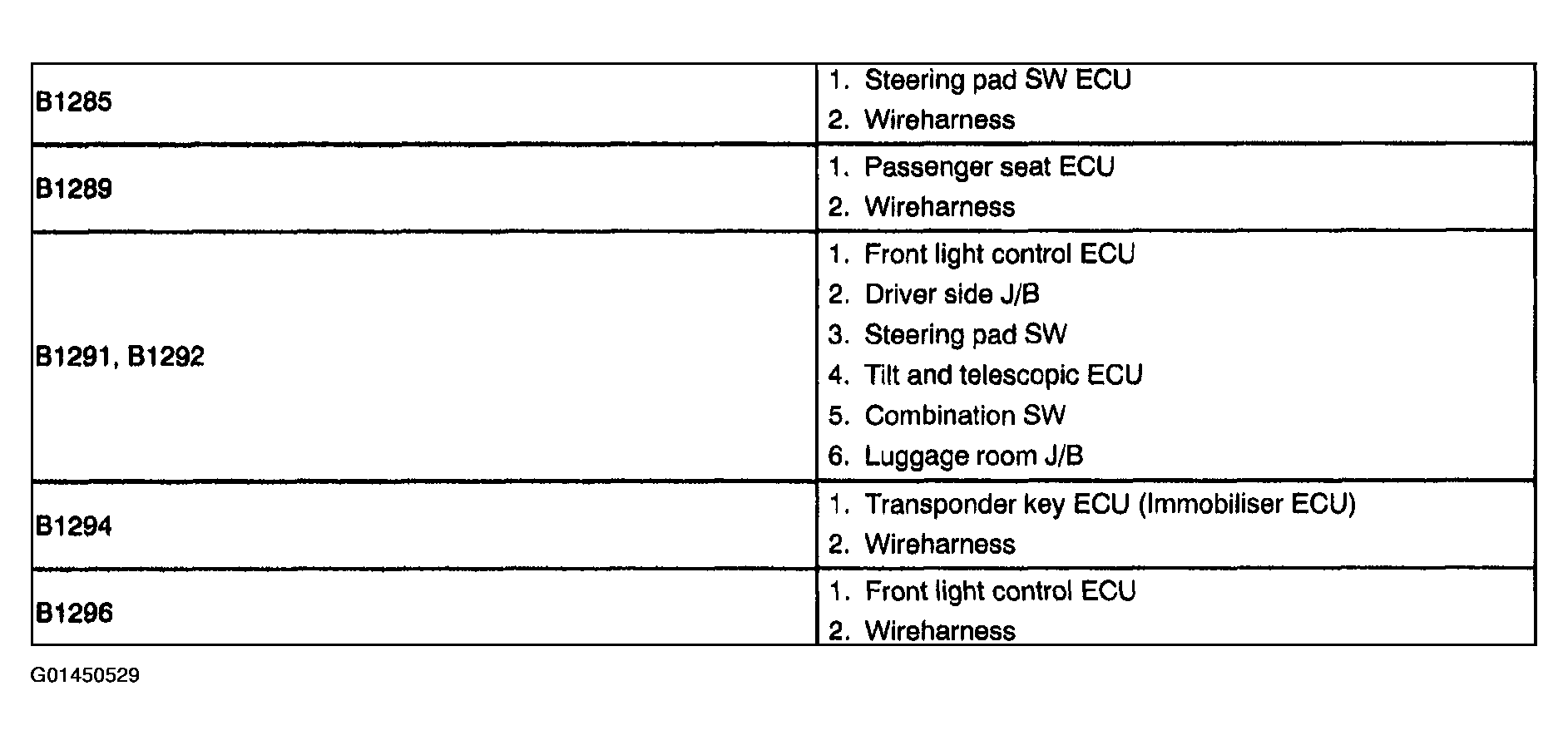

Fig 2: Problem (DTC) Symptoms Table (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
