DTC B1231, B1232: Jam Protection Limit/Pulse Switch Circuit On Driver Door
›
Circuit Description
Circuit Description
This DTCs are output when the power window motor malfunctions.

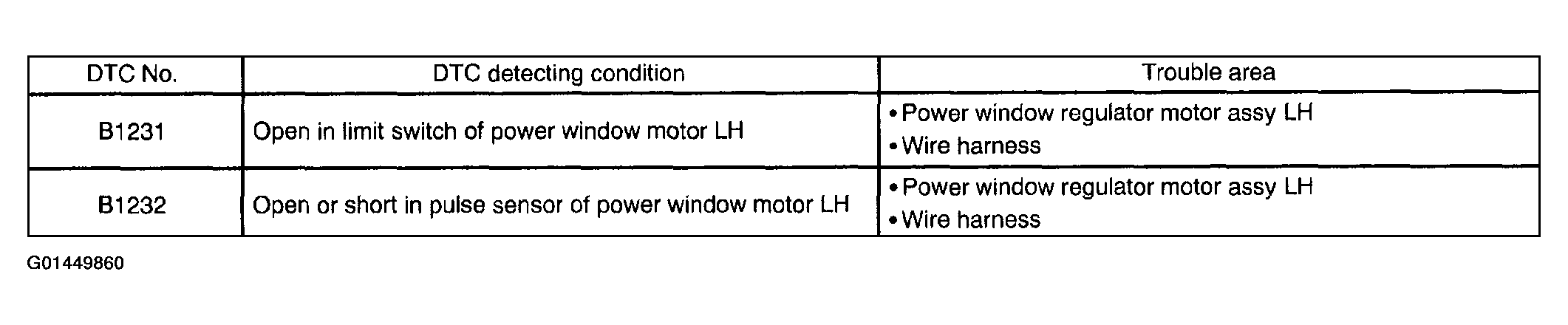

Fig 1: DTC B1231 And B1232 Detection Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
