Power Window Does Not Operate Via Passenger Power Window Switch: Wiring Diagram

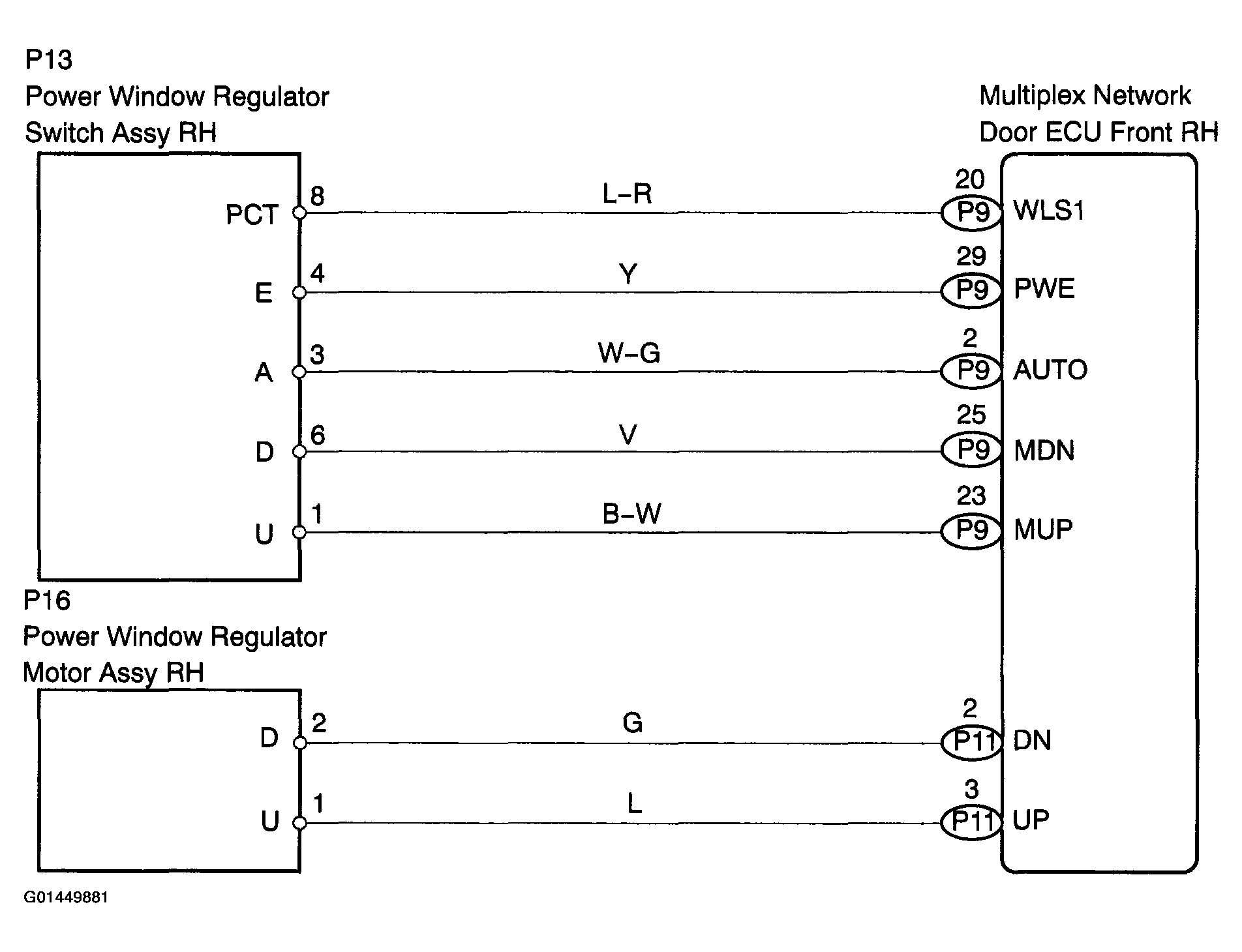

Fig 1: Power Window Wiring Schematic
G01449881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
