Quarter Power Windows: Components

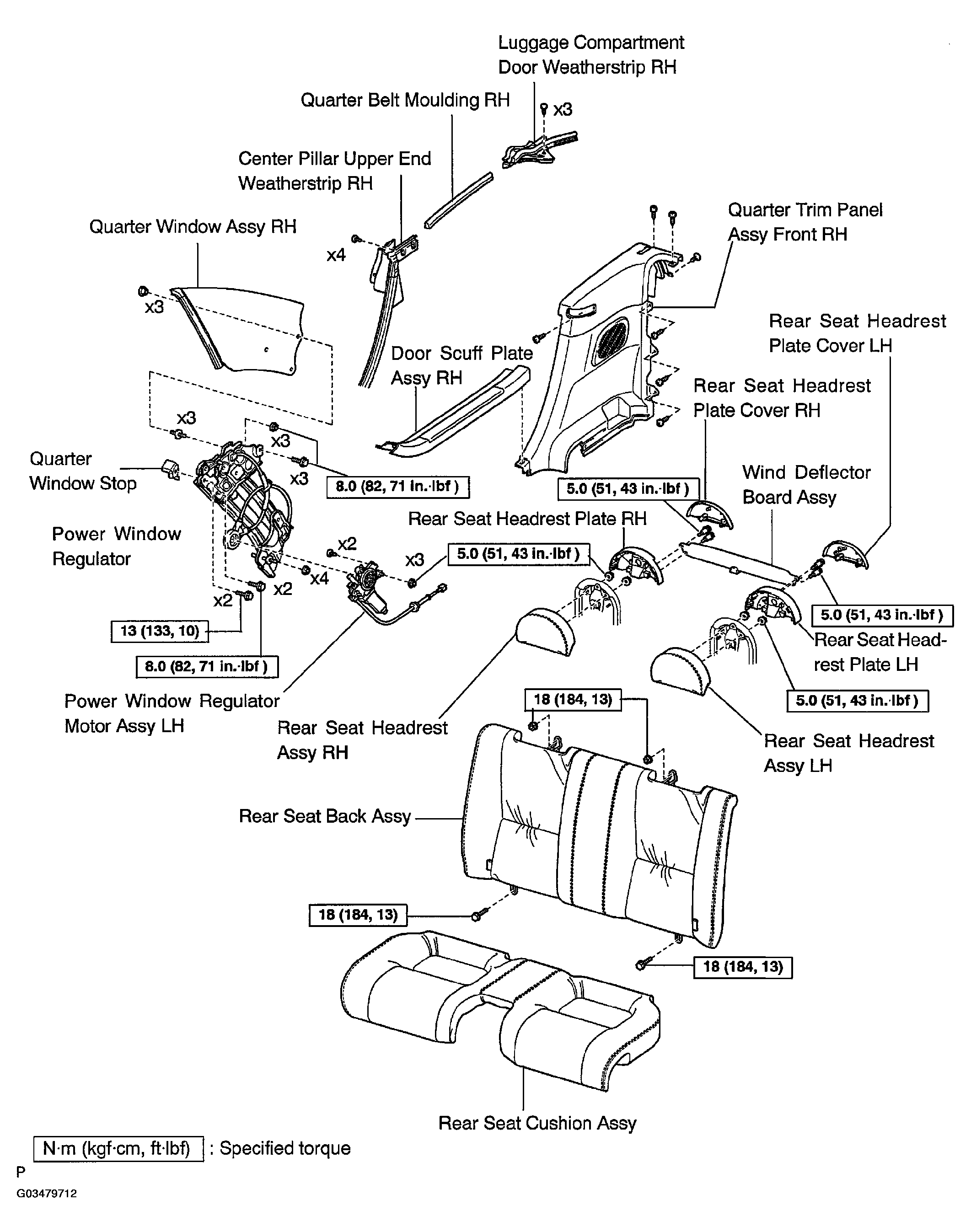

Fig 1: Exploded View Of Quarter Window Assy RH
G03479712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
