Front/Rear Axle: Components

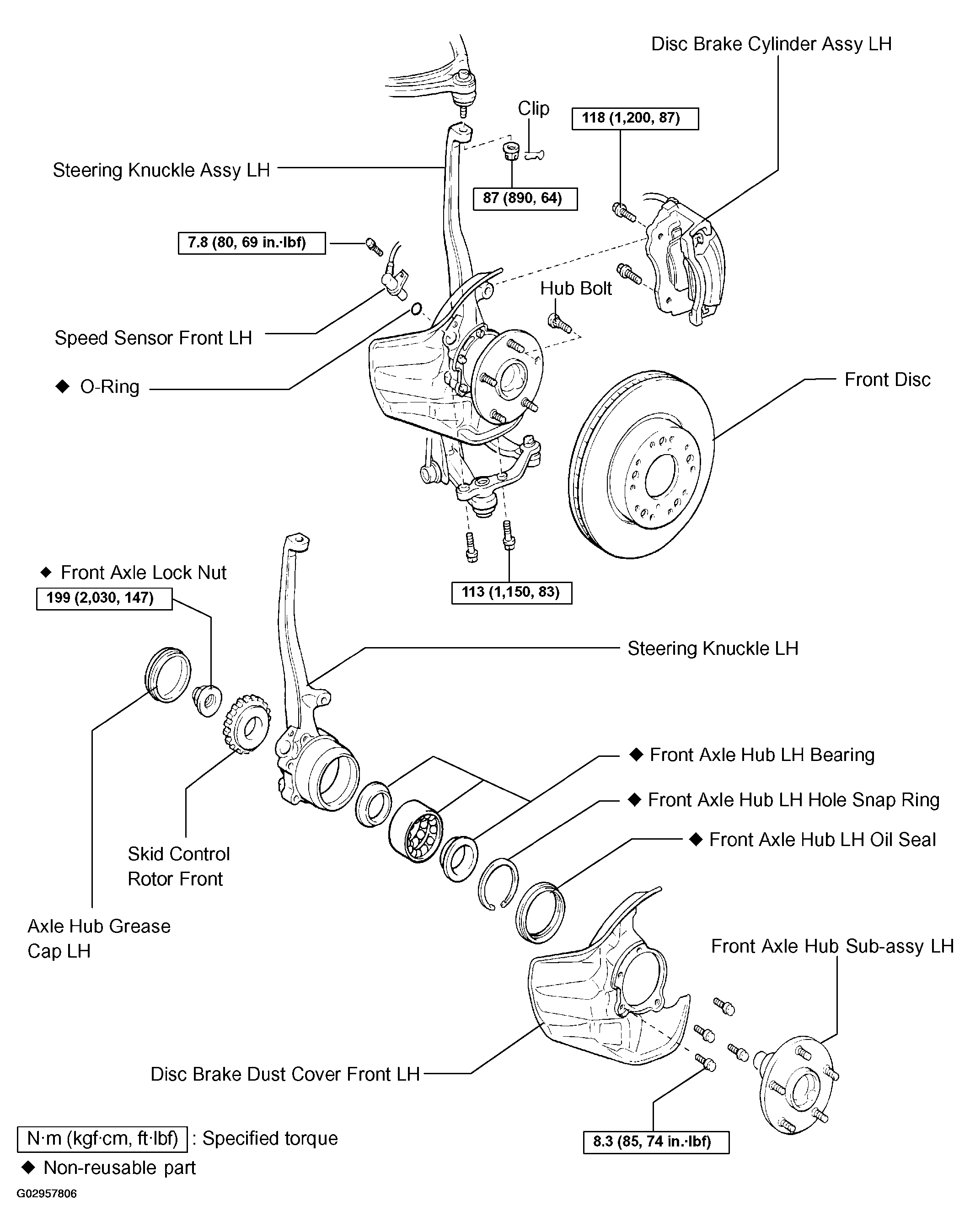

Fig 1: Identifying Front Axle Hub Sub-Assy Components
G02957806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
