Exhaust Pipe: Components

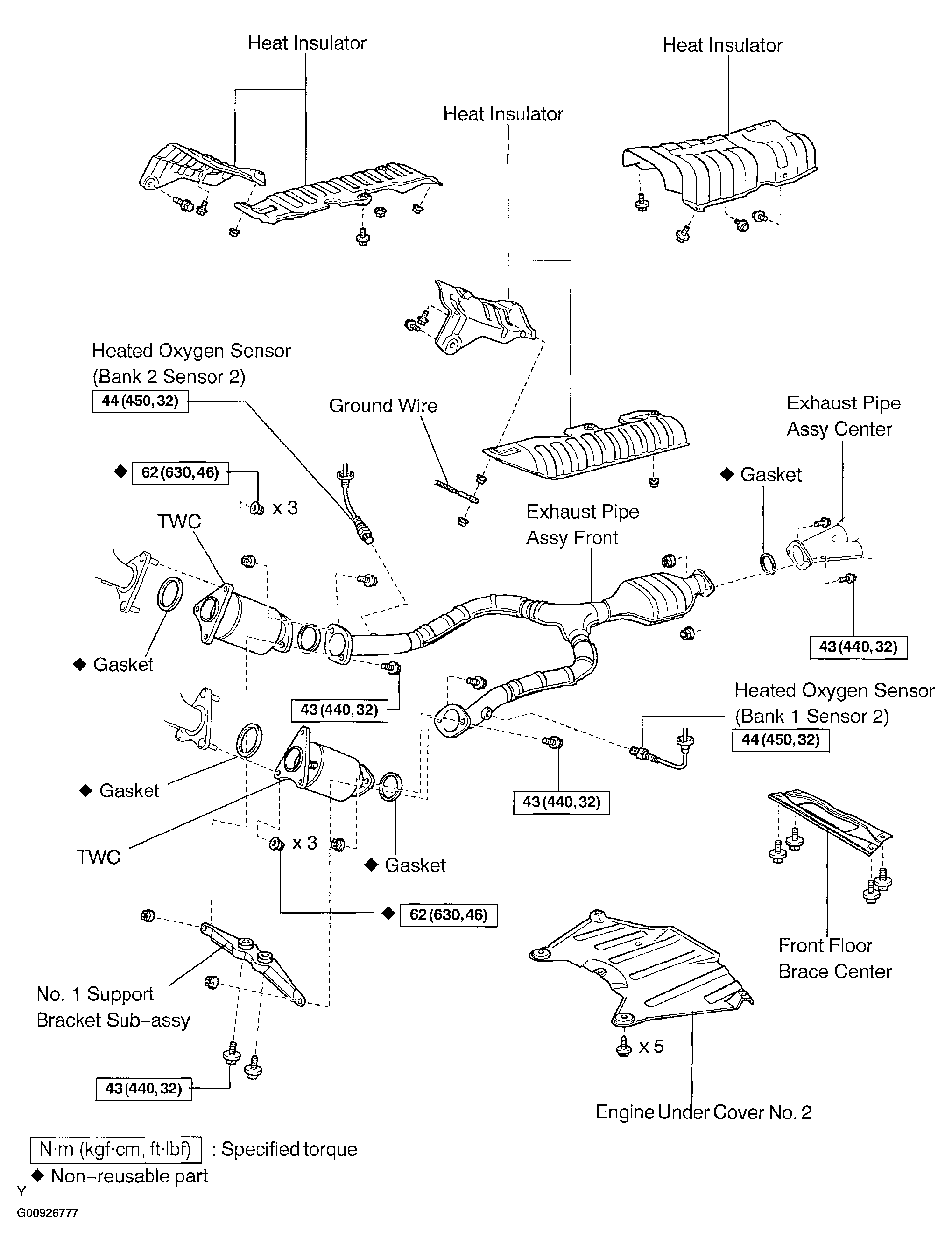

Fig 1: Locating Exhaust Pipe Components (1 Of 2)
G00926777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

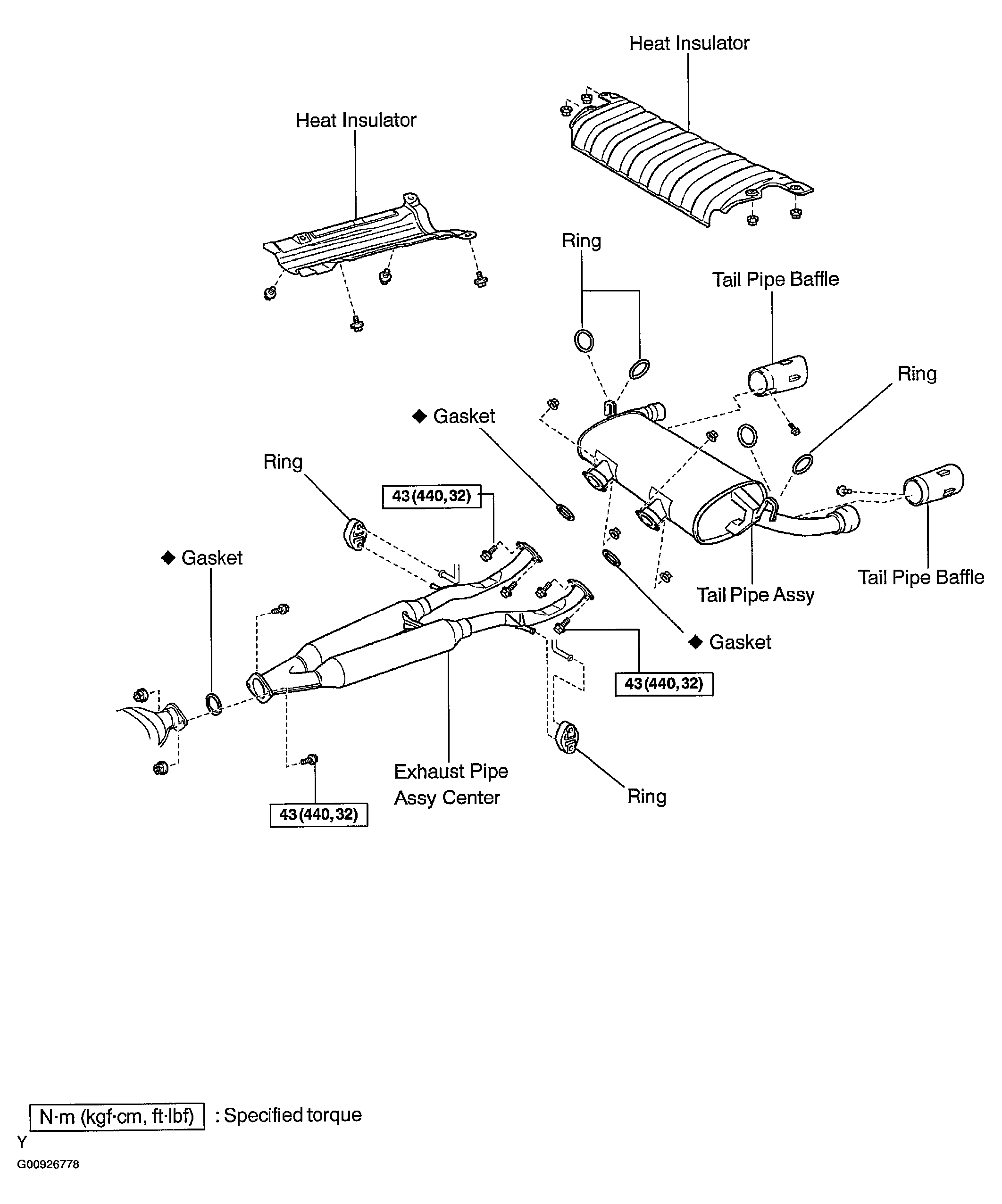

Fig 2: Locating Exhaust Pipe Components (2 Of 2)
G00926778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
