Intake Manifold To Head Gasket No. 1: Components

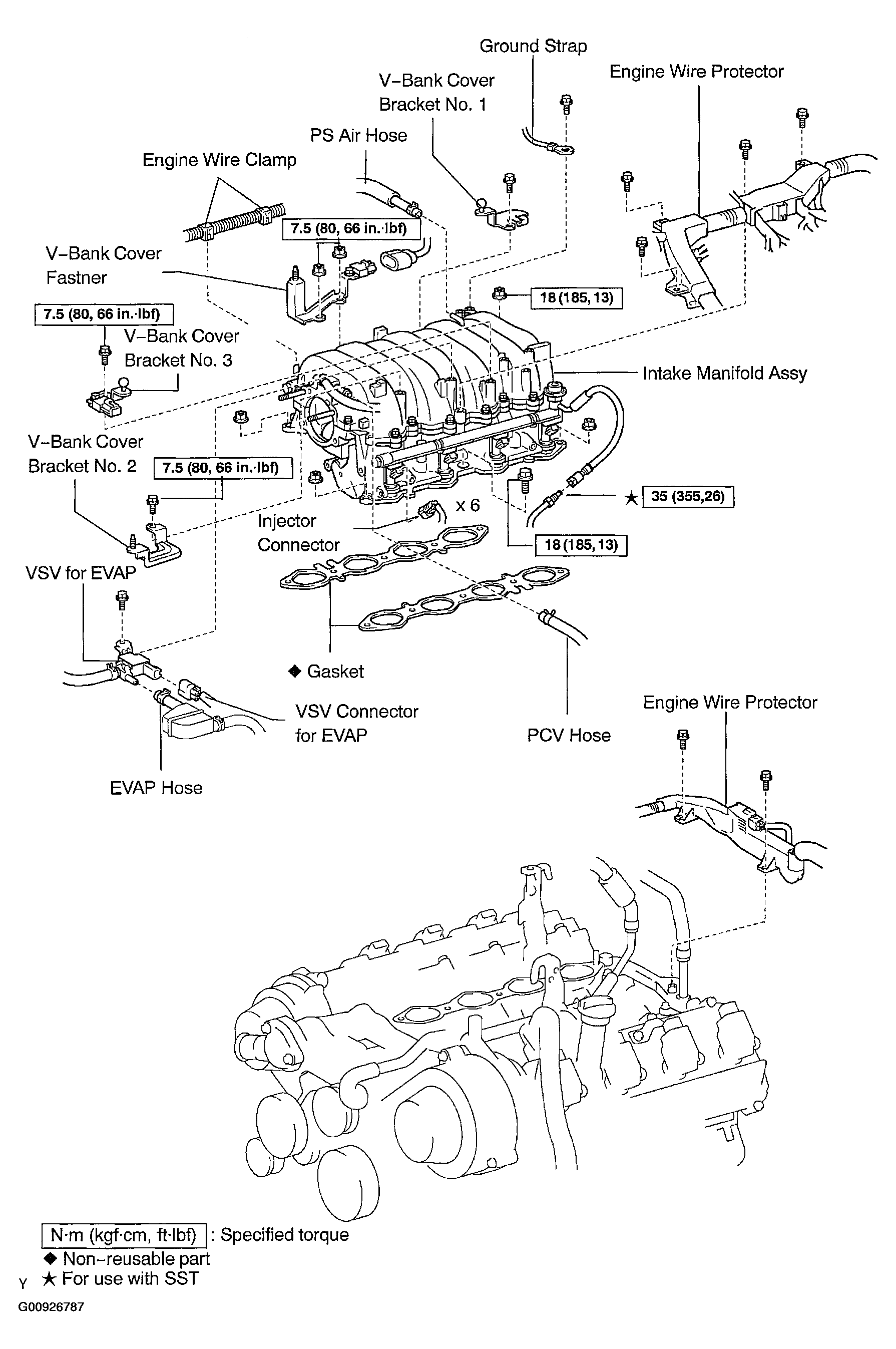

Fig 1: Identifying Intake Manifold To Head Gasket No. 1 Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

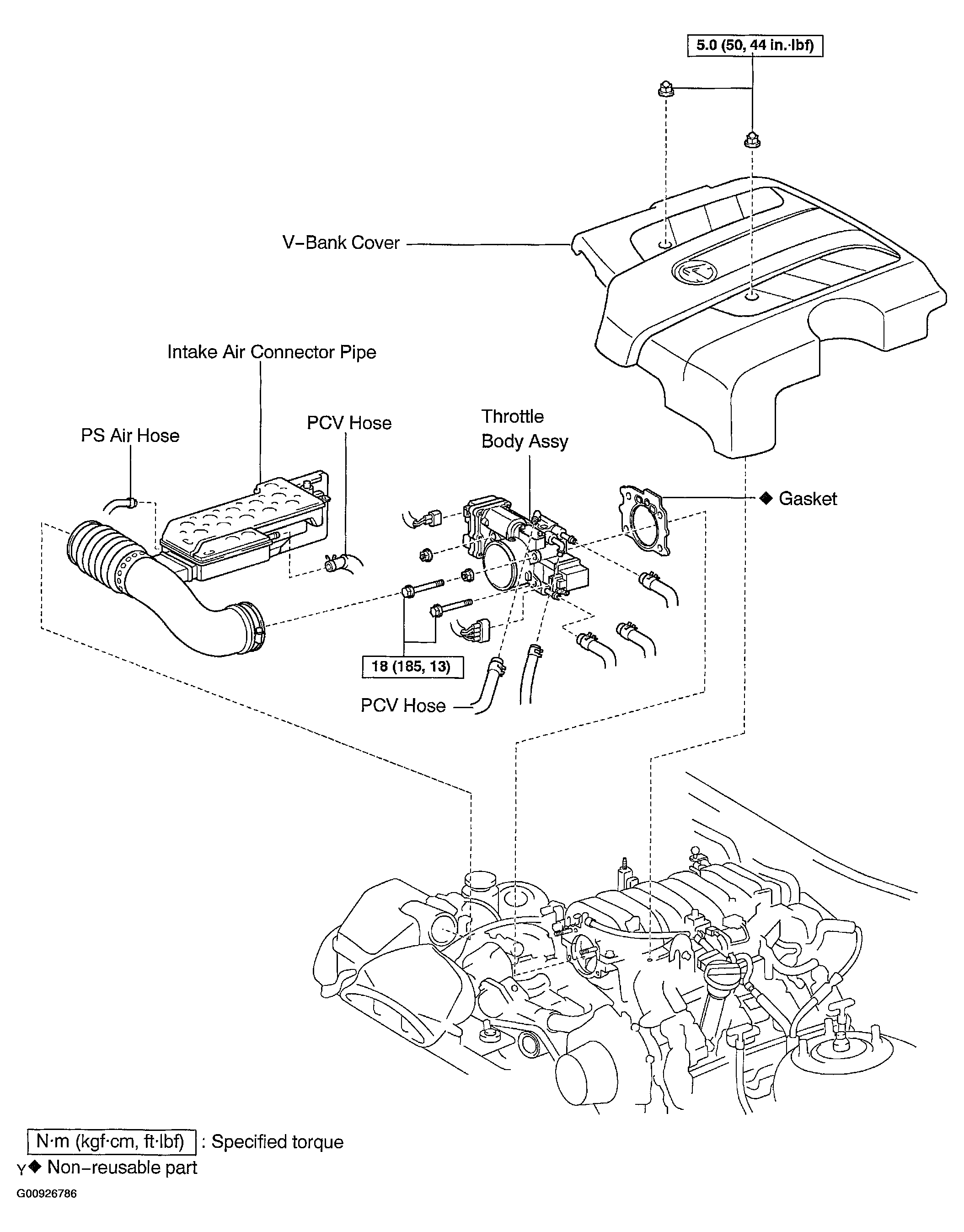

Fig 2: Identifying Intake Manifold To Head Gasket No. 1 Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
