Mode 6 - 2004 LEXUS
›
GS 430
GS 430

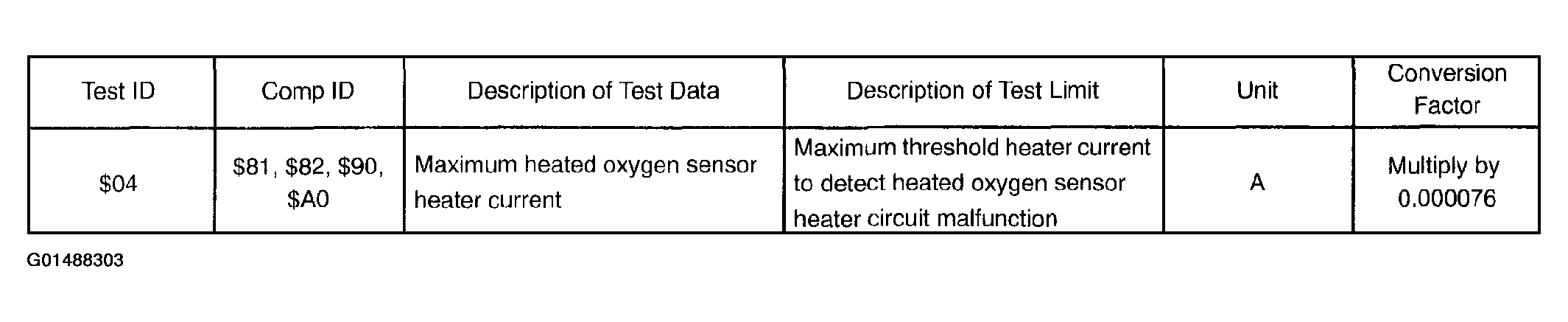

Fig 1: Oxygen Sensor Heater Monitor Result Chart (Mode 06 Data)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

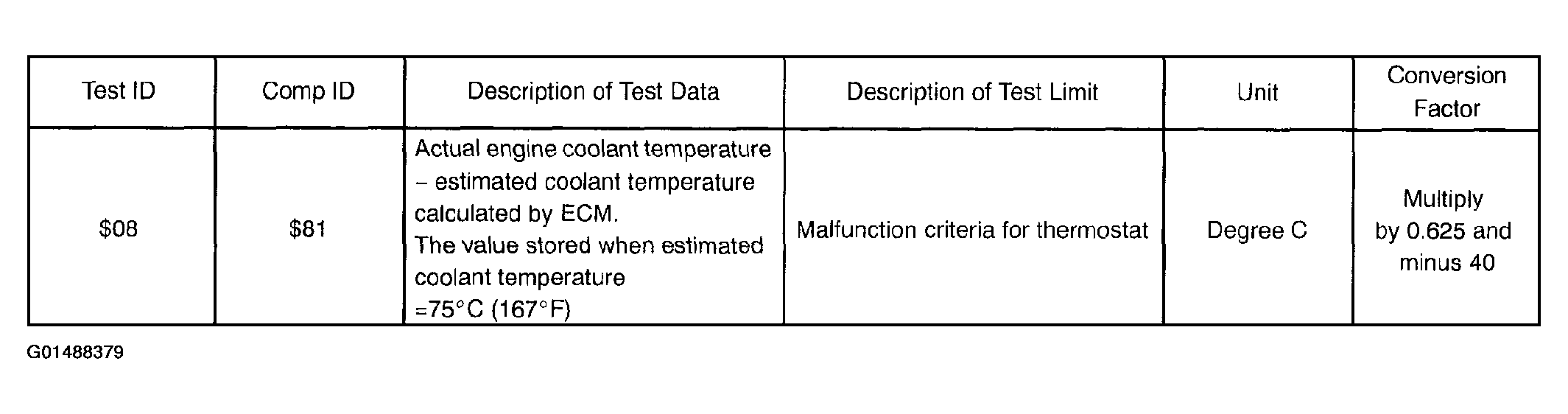

Fig 2: Thermostat Monitor Result (Mode 06 Data) Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

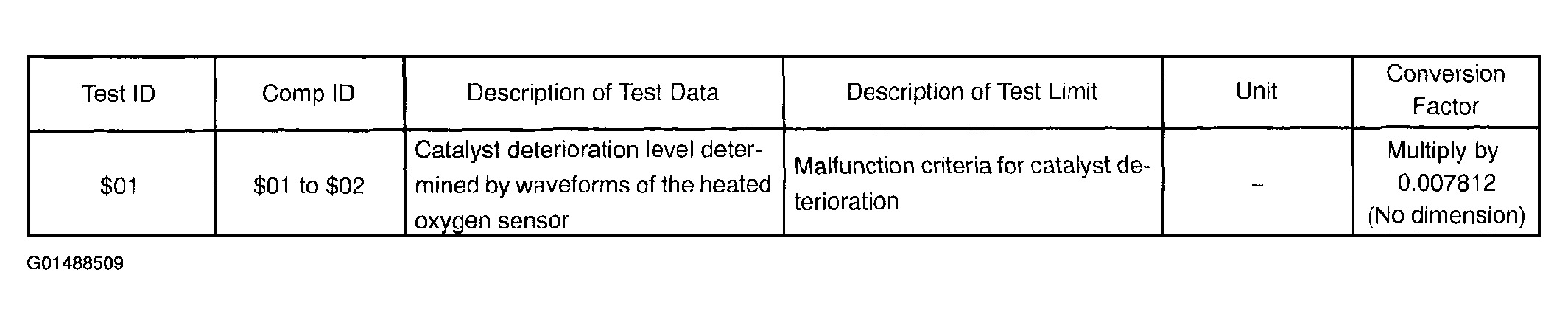

Fig 3: Catalyst Monitor Result (Mode 06 Data) Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

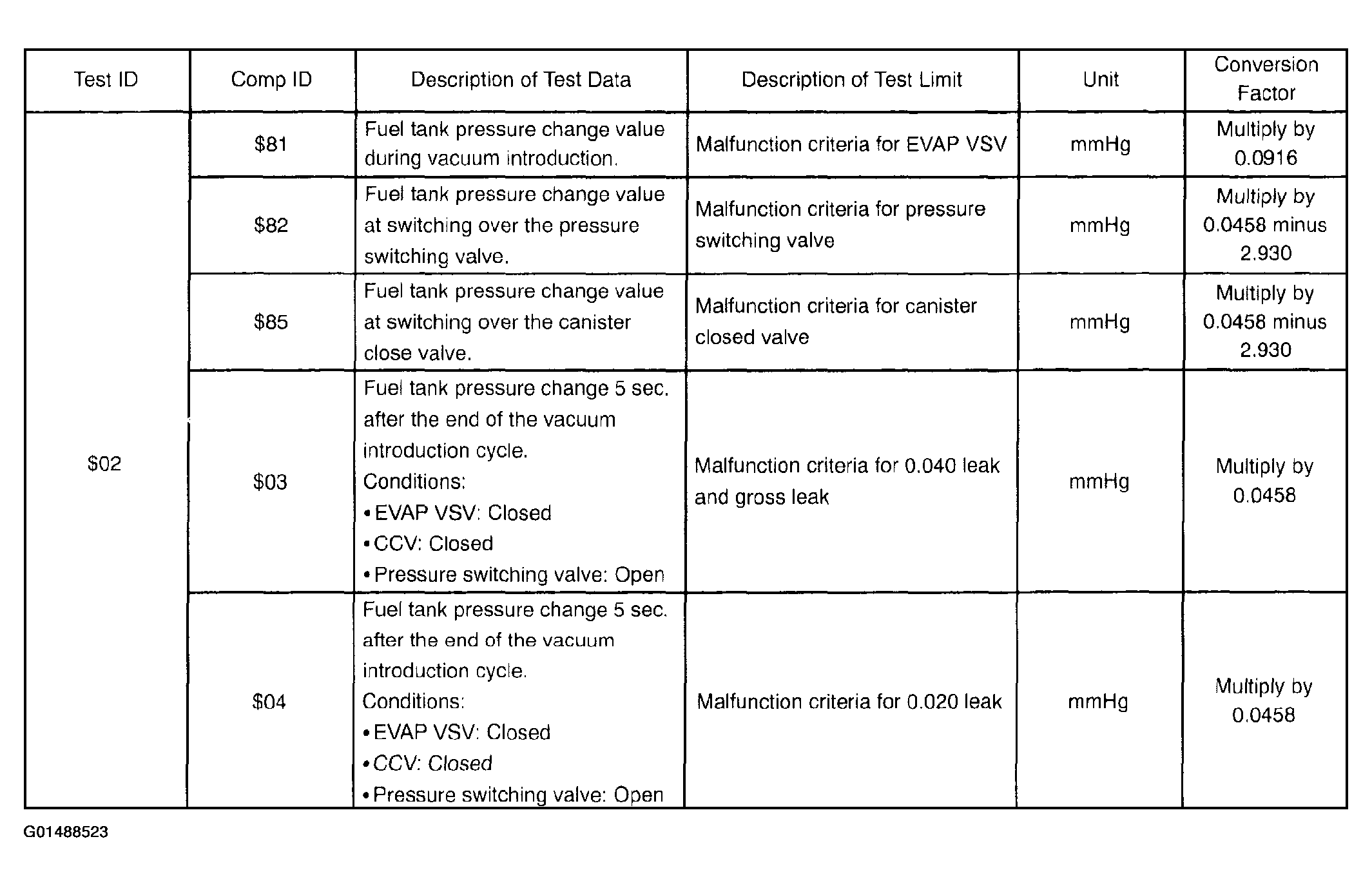

Fig 4: EVAP Monitor Result (Mode 06 Data) Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
