Mode 6 - 2004 LEXUS
›
GX 470
GX 470

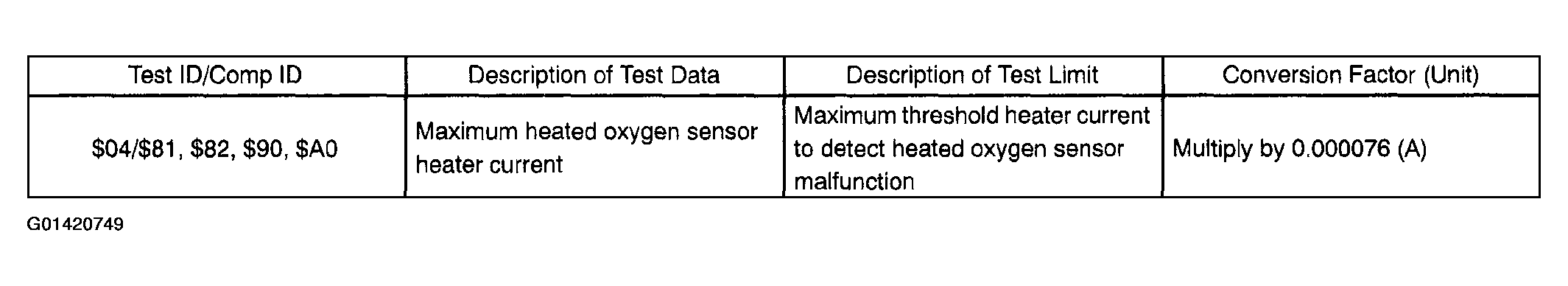

Fig 1: Oxygen Sensor Heater Monitor Result (Mode 06 Data)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Thermostat Monitor Result (Mode 06 Data)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

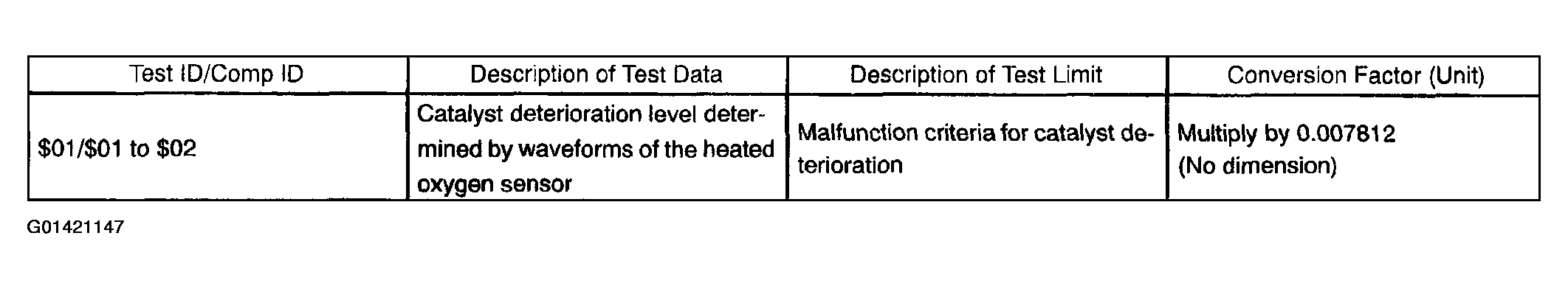

Fig 3: Catalyst Monitor Result (Mode 06 Data)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

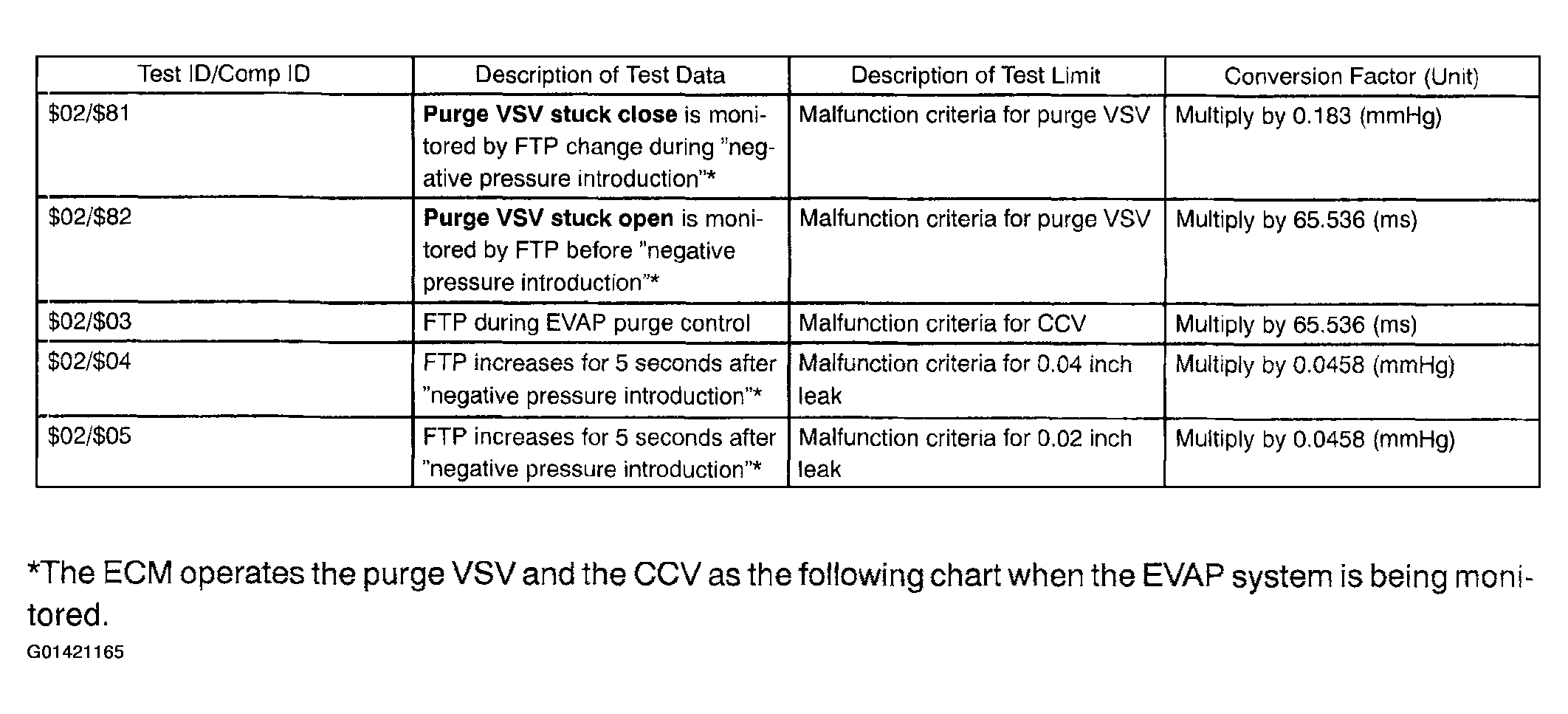

Fig 4: EVAP System Monitor Result (Mode 06 Data)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
