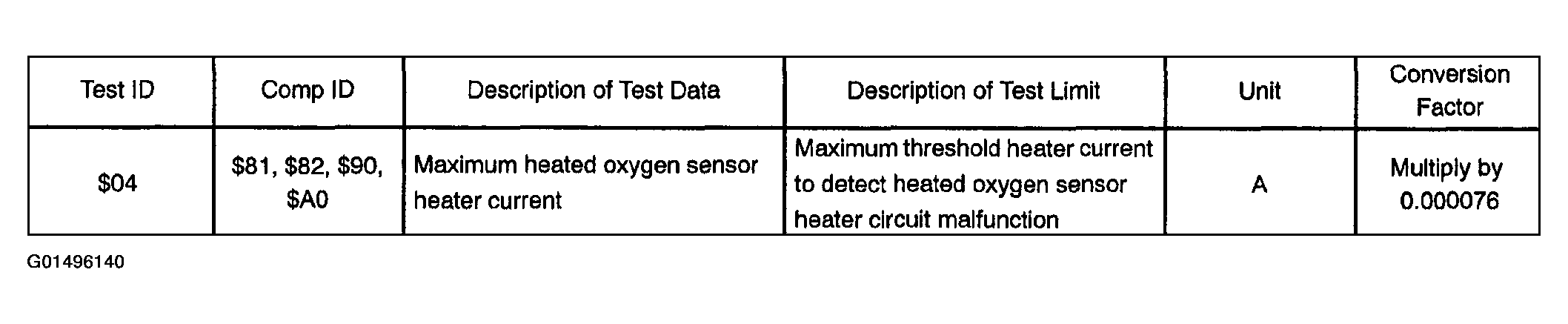

Fig 1: Oxygen Sensor Heater Monitor Result (Mode 06 Data)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

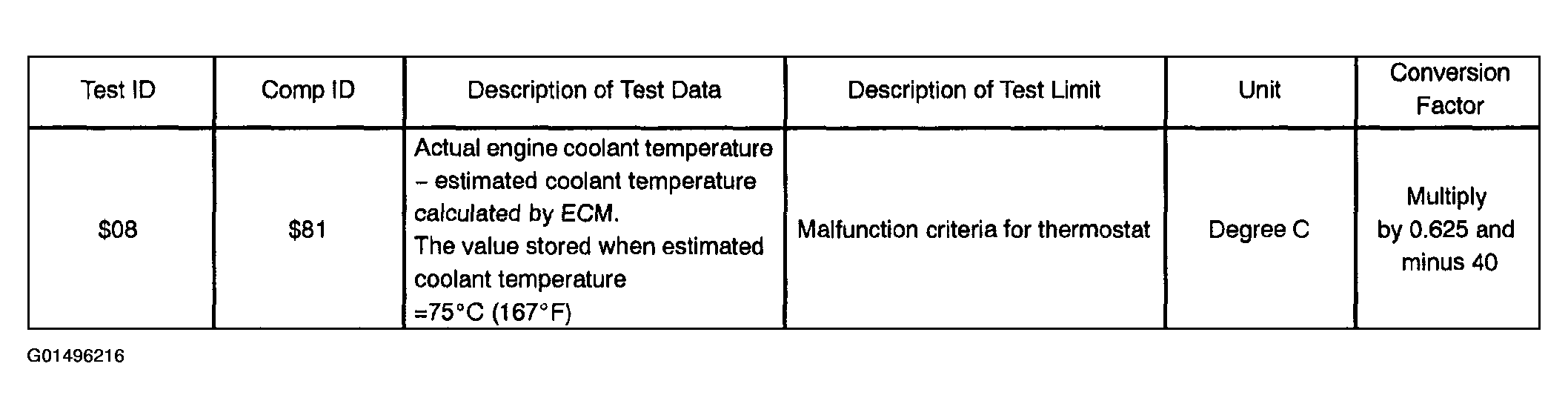

Fig 2: Thermostat Monitor Result (Mode 06 Data)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

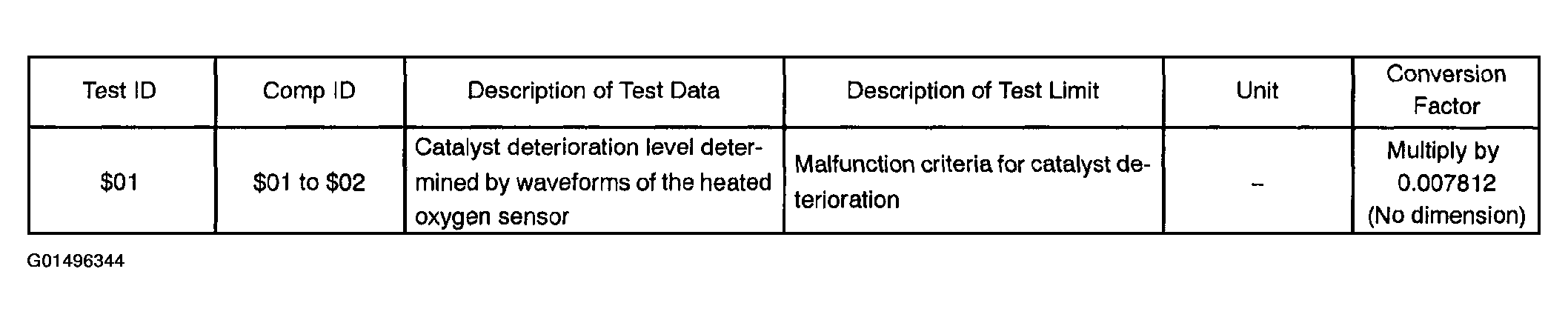

Fig 3: Catalyst Monitor Result (Mode 06 Data)

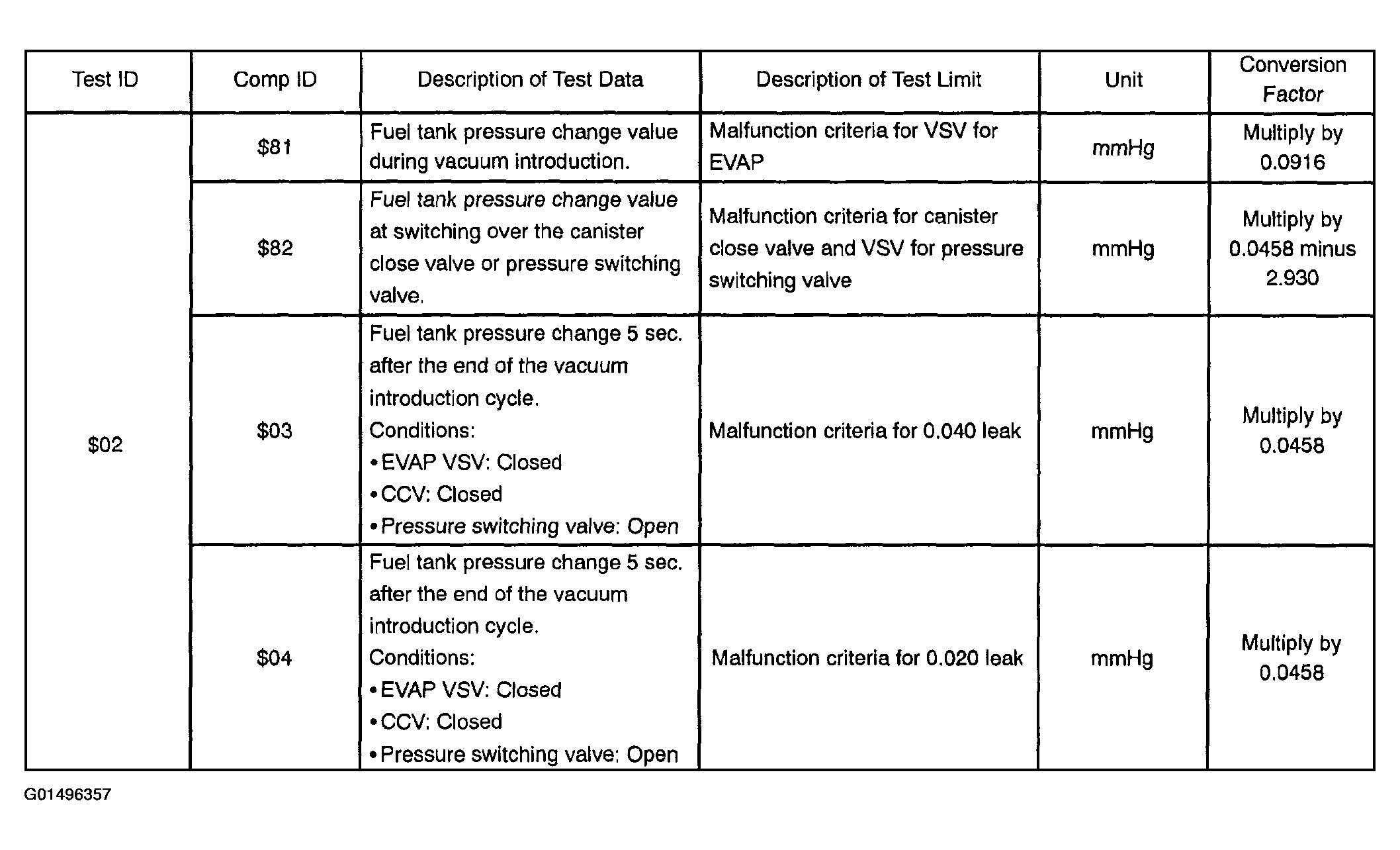

Fig 4: EVAP Monitor Result Chart (Mode 06 Data)
