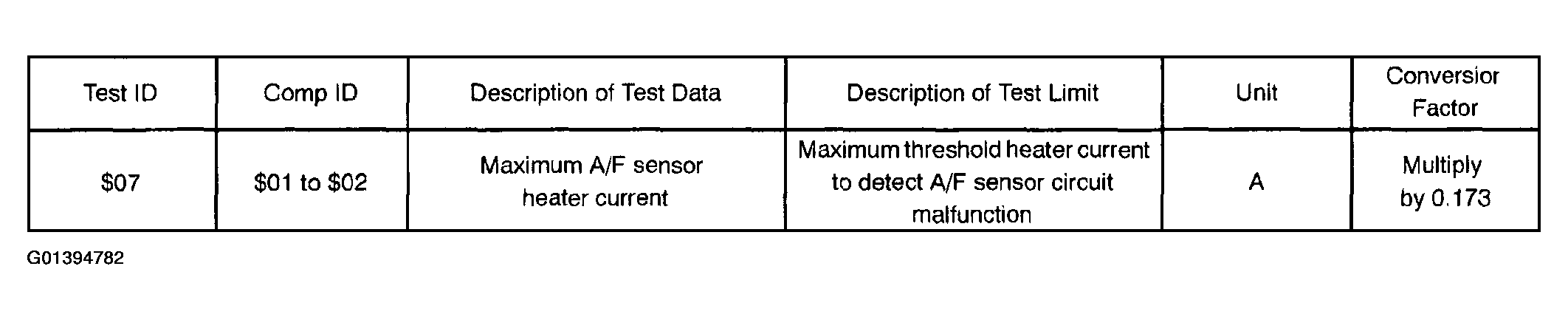

Fig 1: A/F Sensor Heater Monitor Result (Mode 06 Data)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

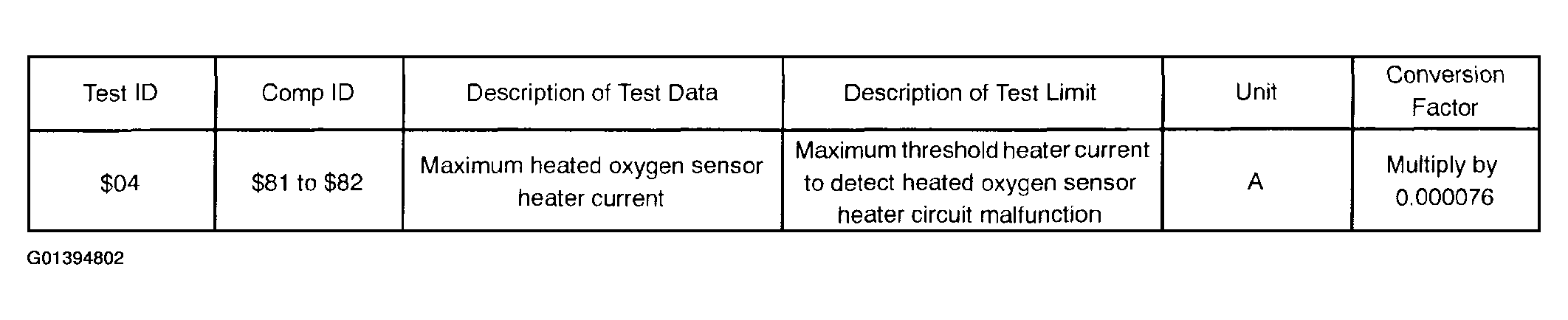

Fig 2: Oxygen Sensor Heater Monitor Result (Mode 06 Data)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

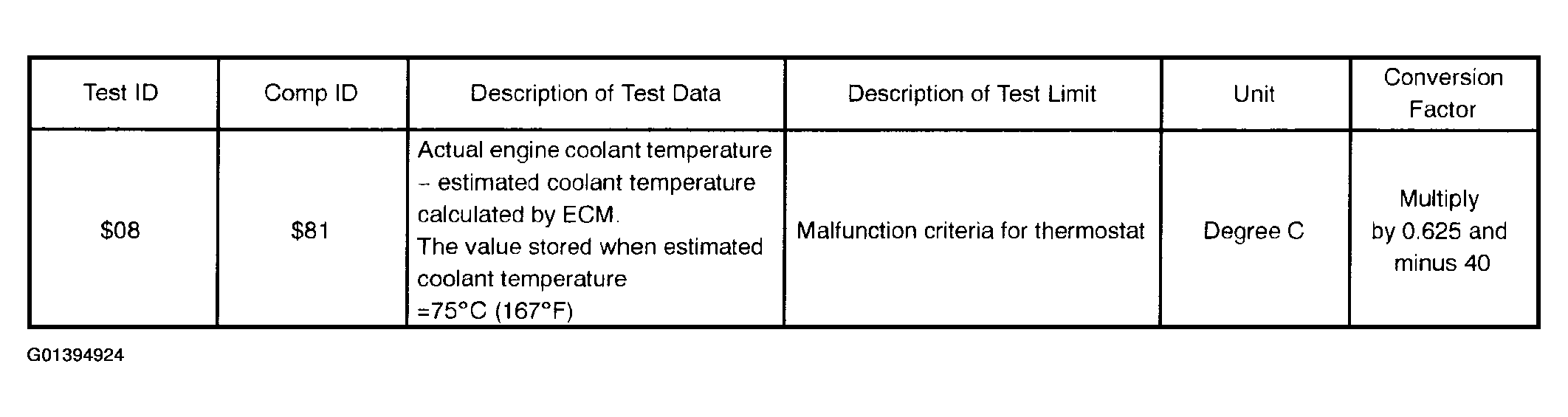

Fig 3: Thermostat Monitor Result (Mode 06 Data)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

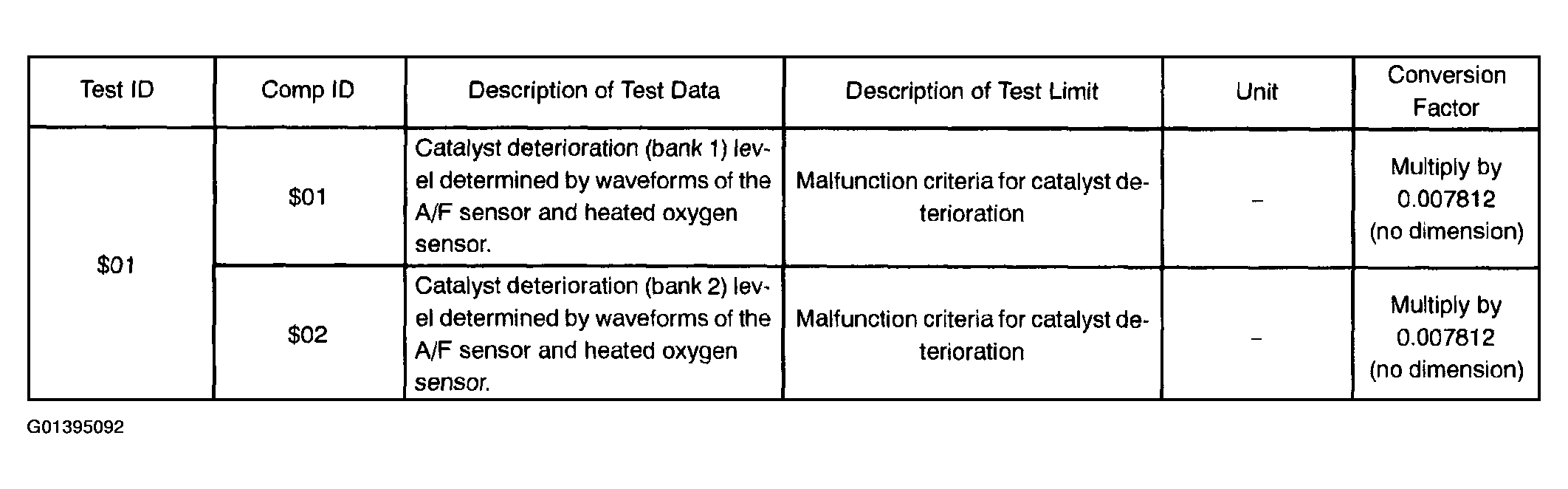

Fig 4: Catalyst Monitor Result (Mode 06 Data)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

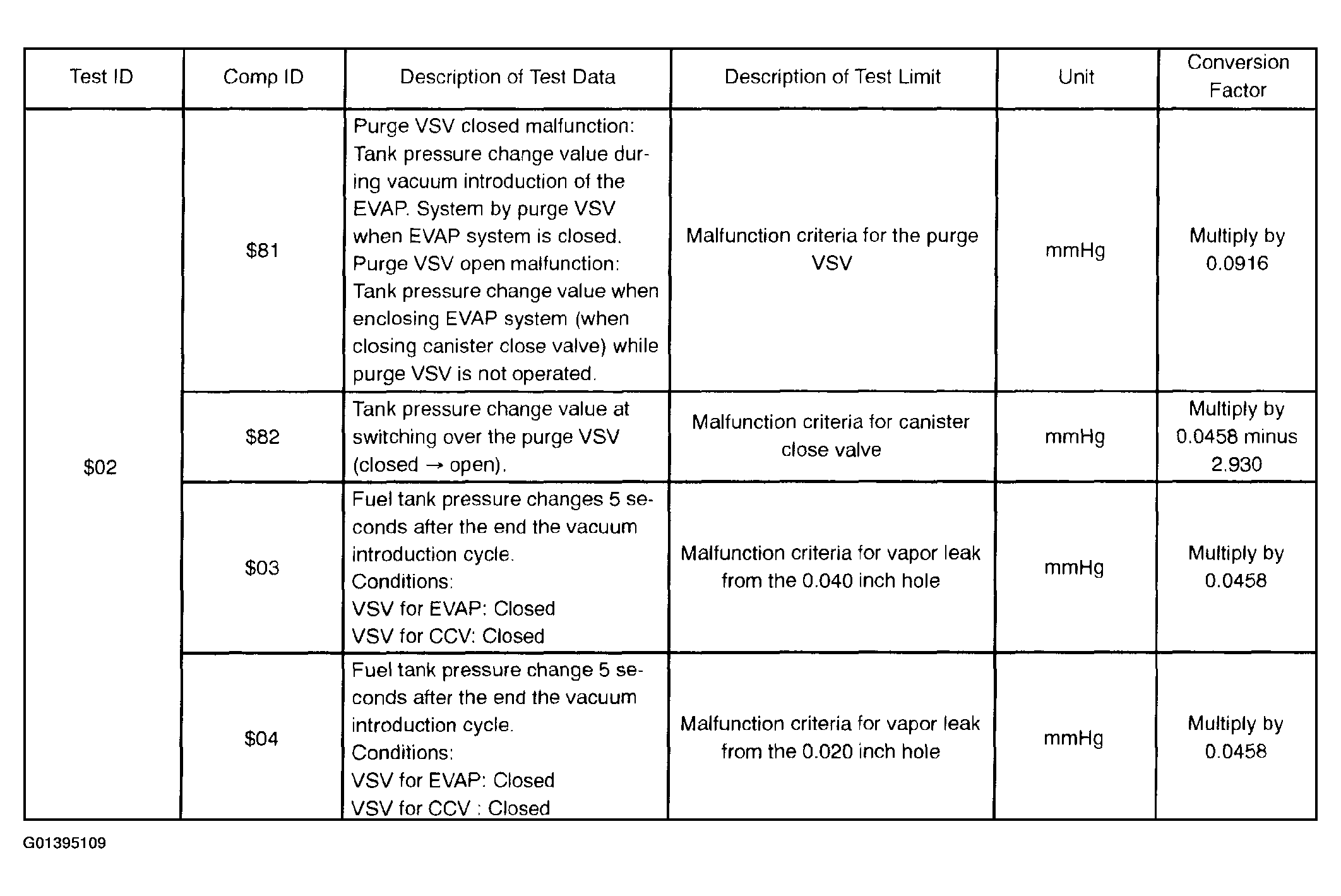

Fig 5: EVAP Monitor Result (Mode 06 Data)

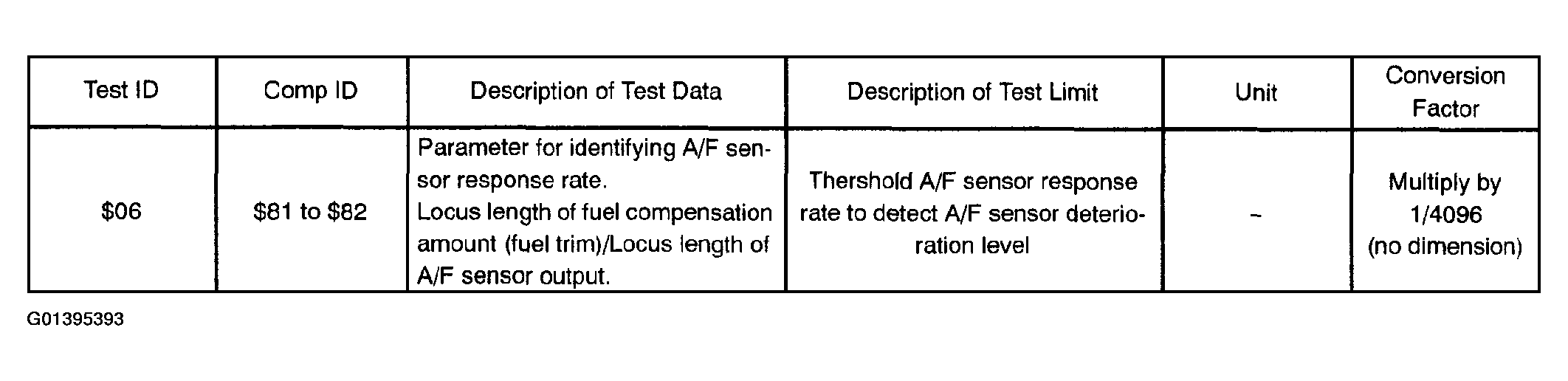

Fig 6: A/F Sensor Monitor Result (Mode 06 Data)
