Home › Lexus › 2004 › SC 430 › Repair and Diagnosis › Engine Performance › System › Engine Control System › ECM › Components

Engine Control System: ECM: Components

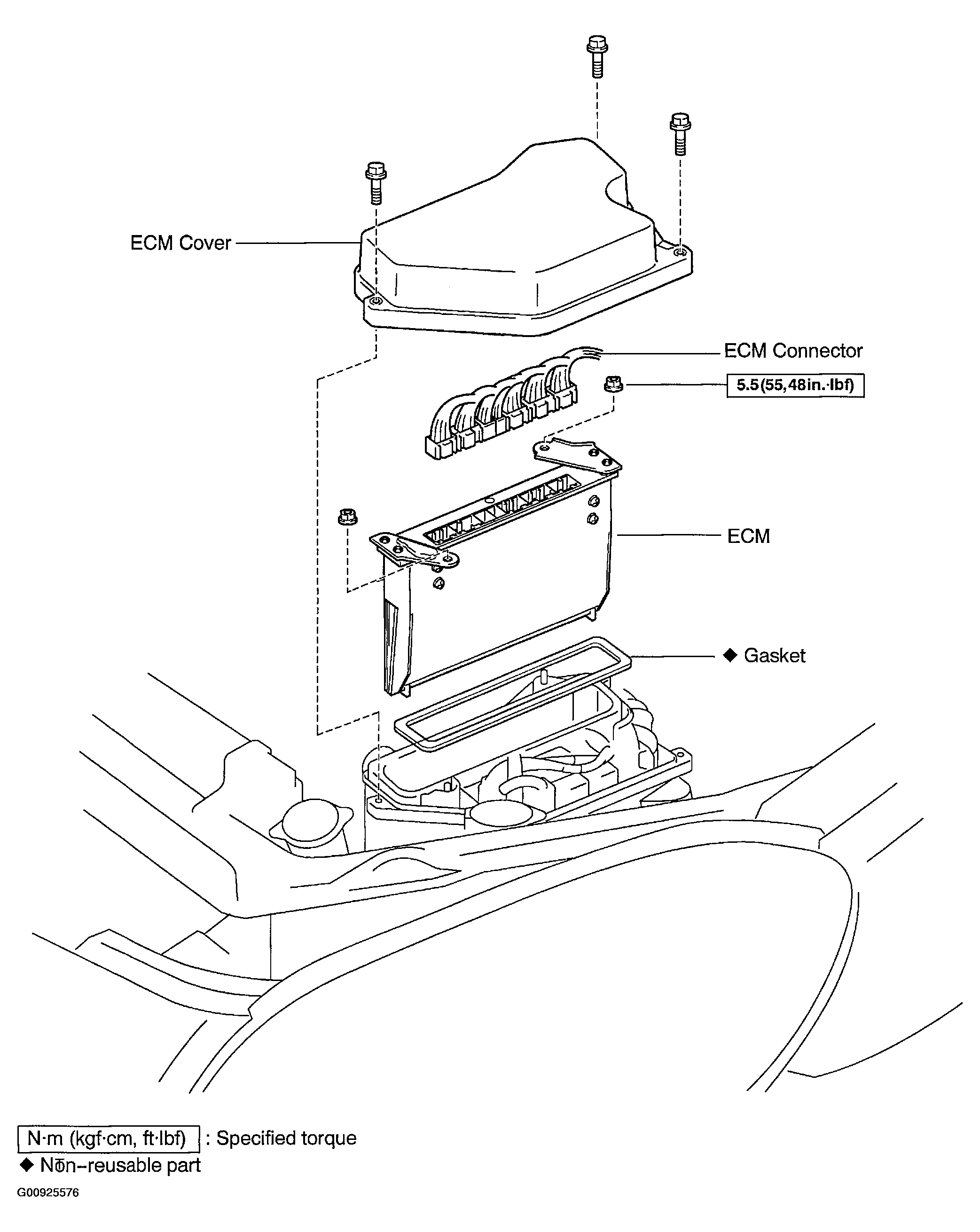

Fig 1: Identifying Components Of ECM
G00925576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
