Engine Performance
›
System
›
SFI System - Diagnosis
›
IACV Control Circuit
›
Wiring Diagram
IACV Control Circuit: Wiring Diagram

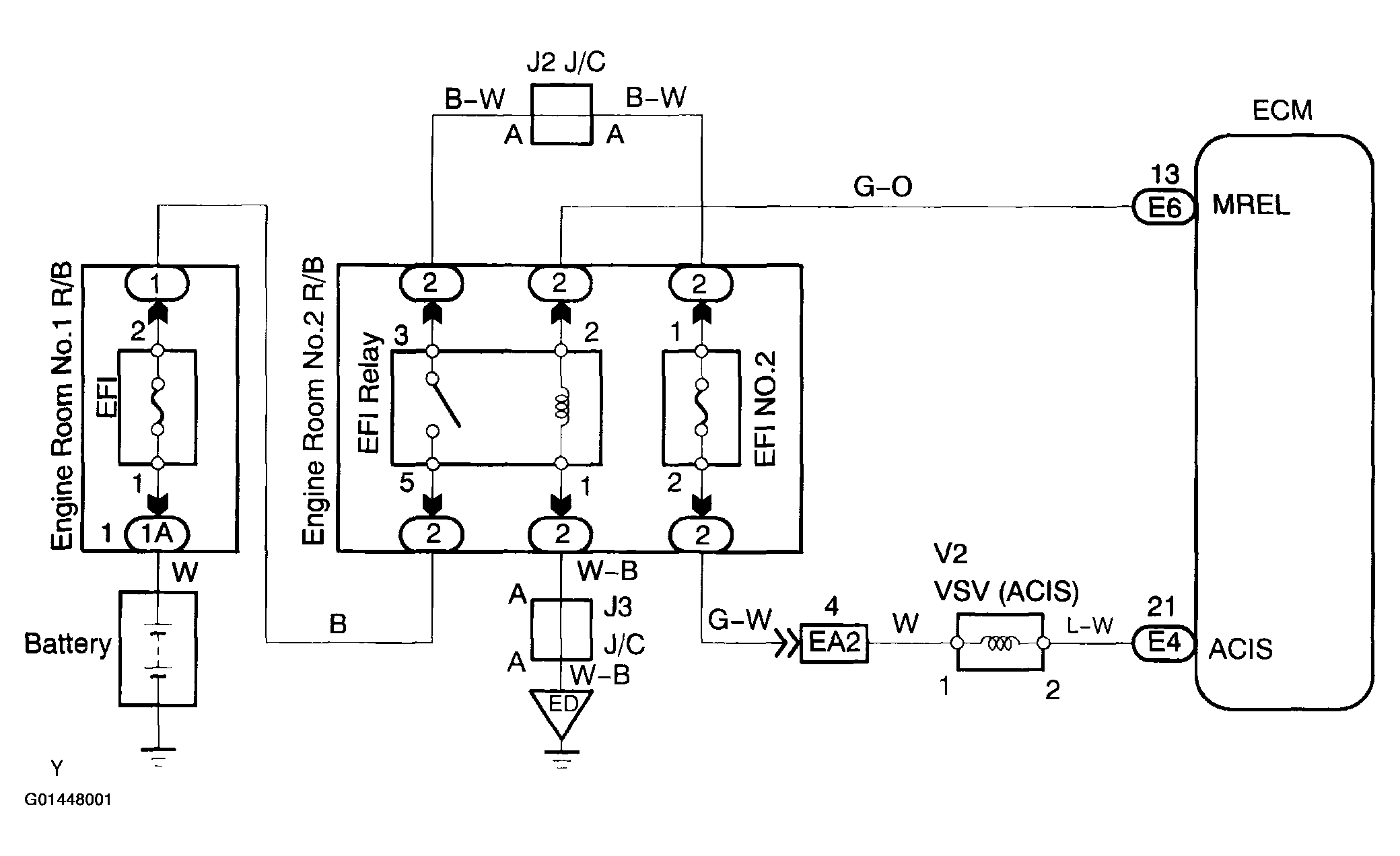

Fig 1: IACV Control Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
