Home › Lexus › 2004 › SC 430 › Repair and Diagnosis › Engine Performance › System › SFI System - Diagnosis › Location

SFI System - Diagnosis: Location

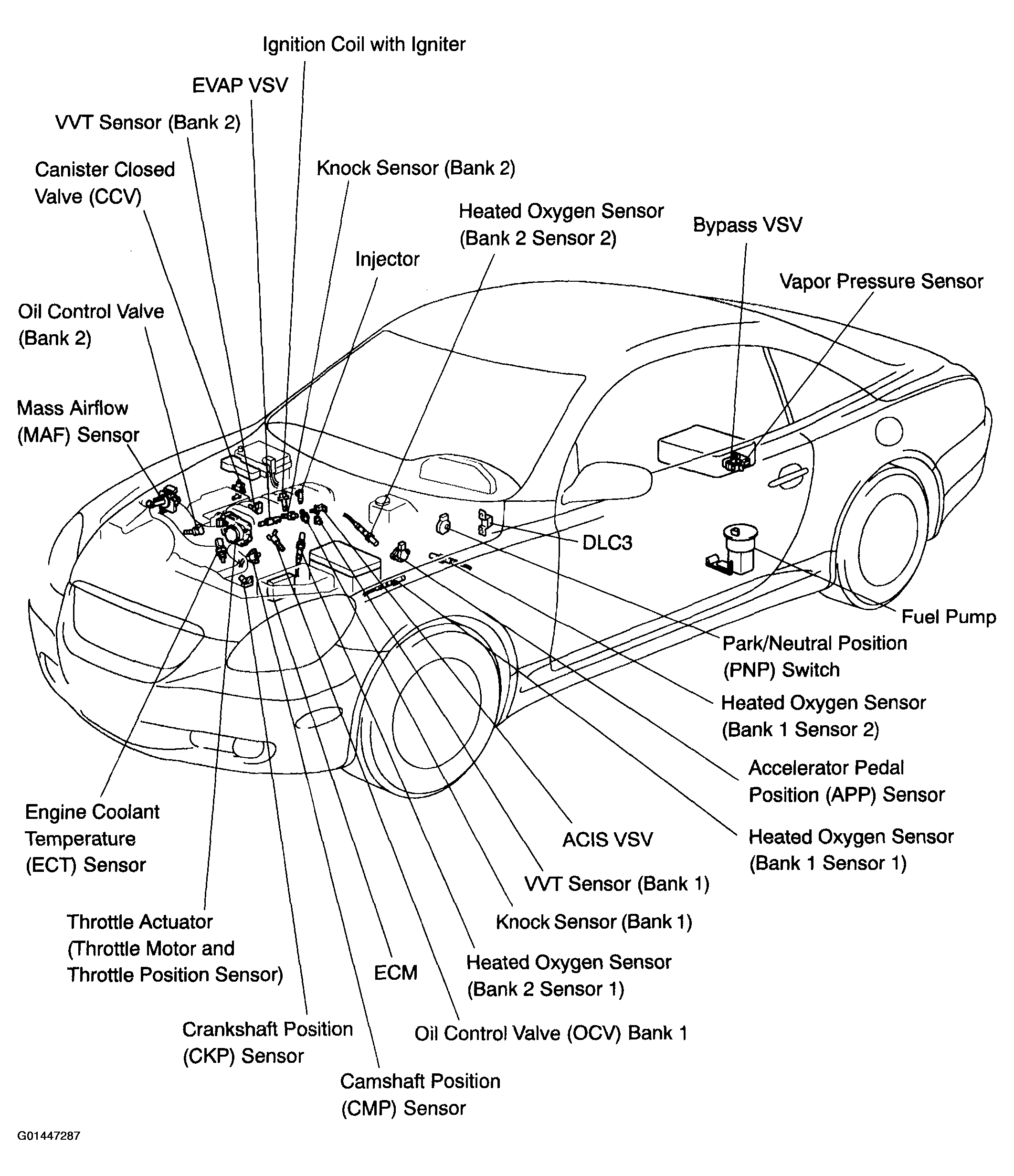

Fig 1: Identifying SFI System Part Location
G01447287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
