Mil Circuit: Wiring Diagram

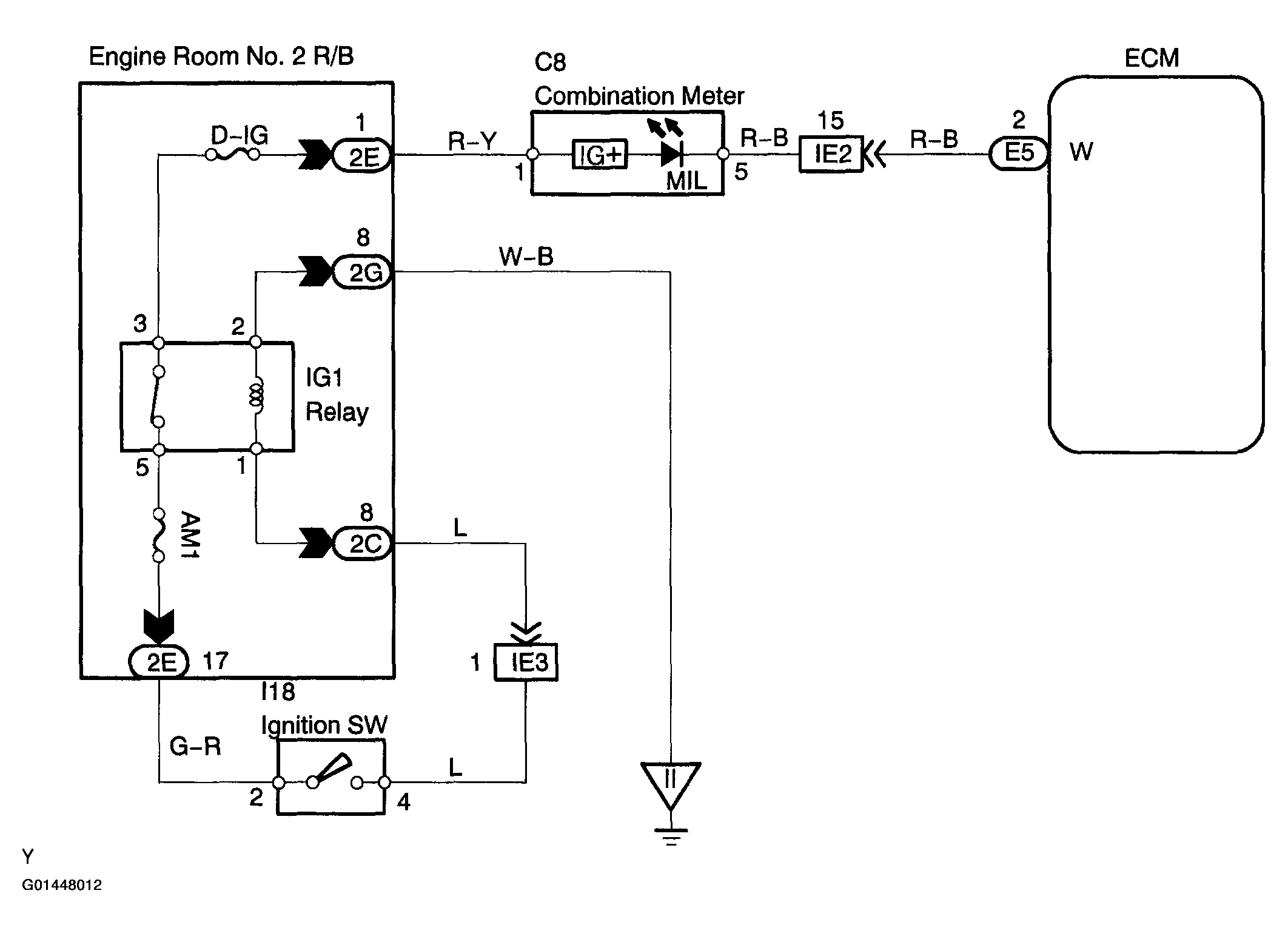

Fig 1: MIL Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
