Throttle Body ASSY: Components

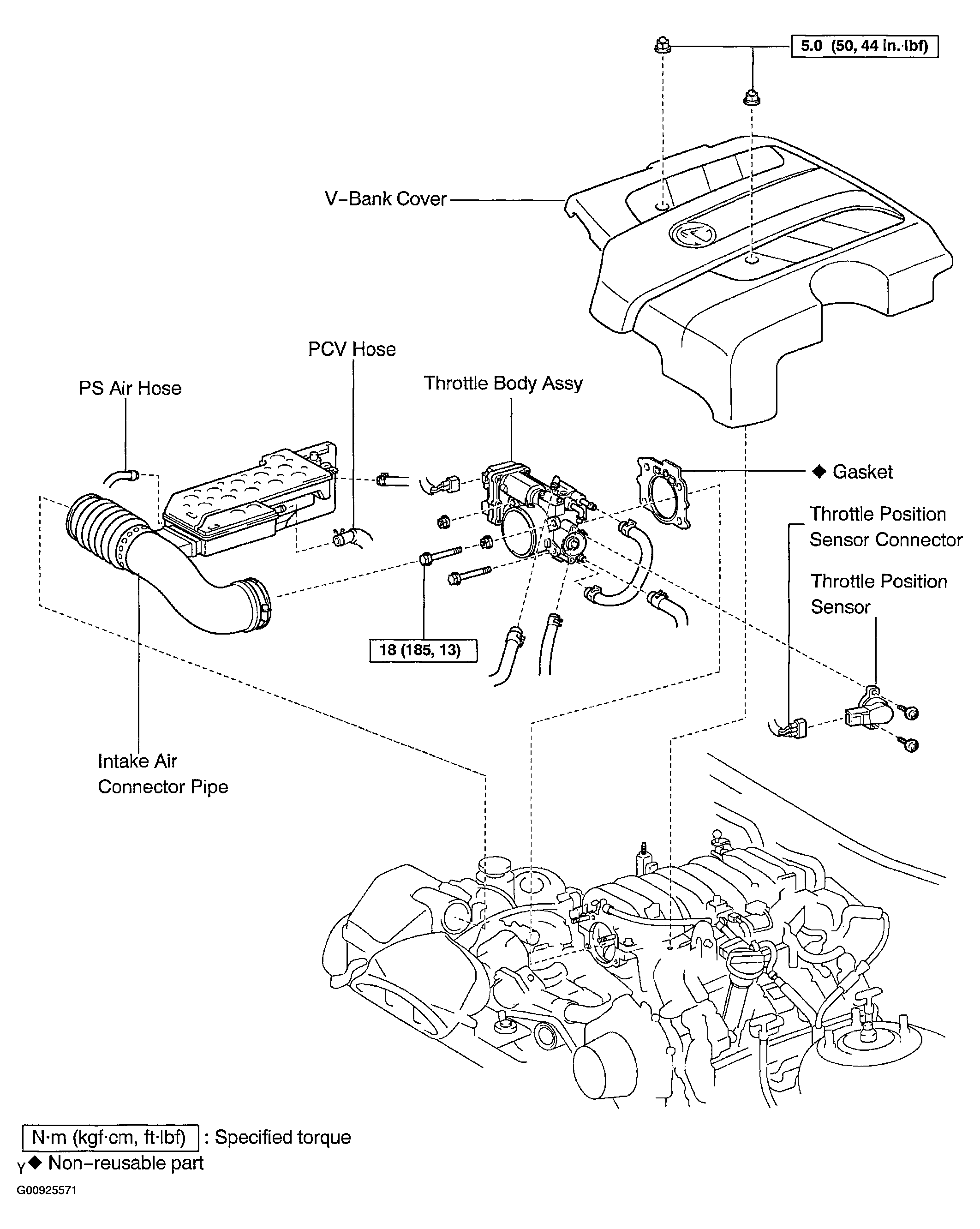

Fig 1: Identifying Components Of Throttle Body Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
