Camshaft Position Sensor: Components

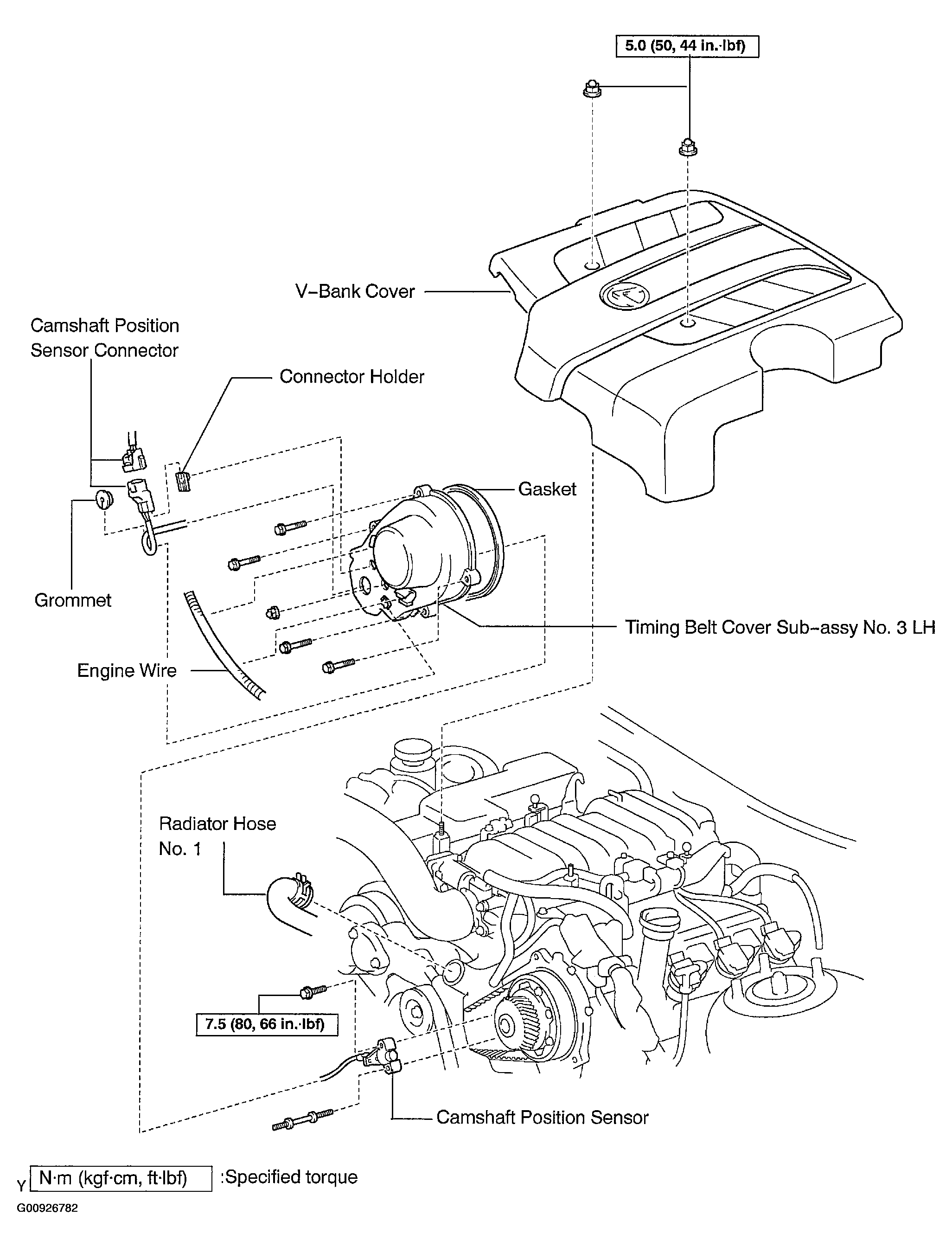

Fig 1: Identifying Components Of Camshaft Position Sensor
G00926782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
