Section 136 (Propeller Shaft)
›
Propeller Shaft Assembly
›
Components
Propeller Shaft Assembly: Components
WARNING:
This page is about a different car, the 2003 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Front & Rear Propeller Shafts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

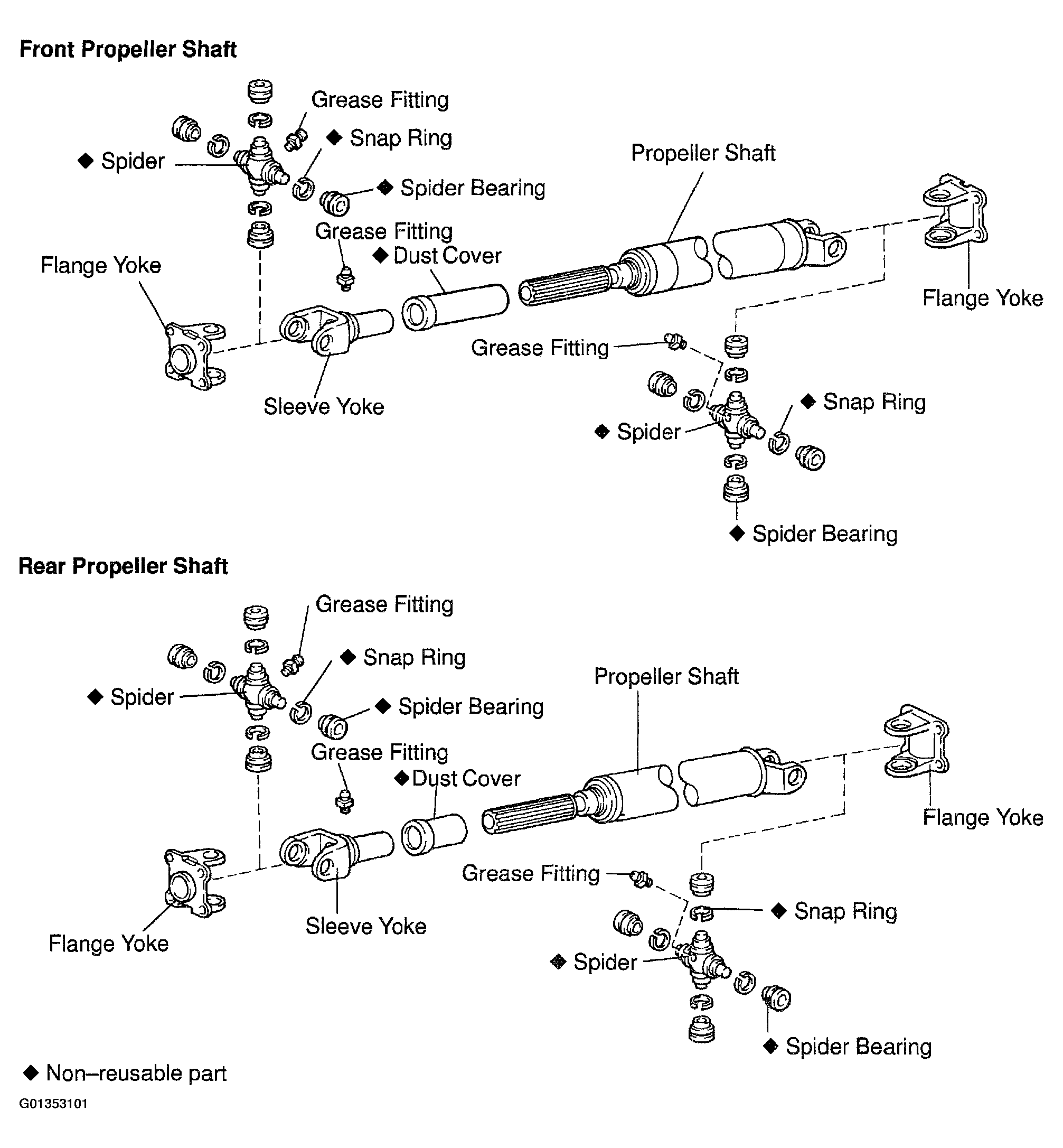

Fig 2: Exploded View Of Front & Rear Propellar Shafts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
