Audio & Visual System: Location

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

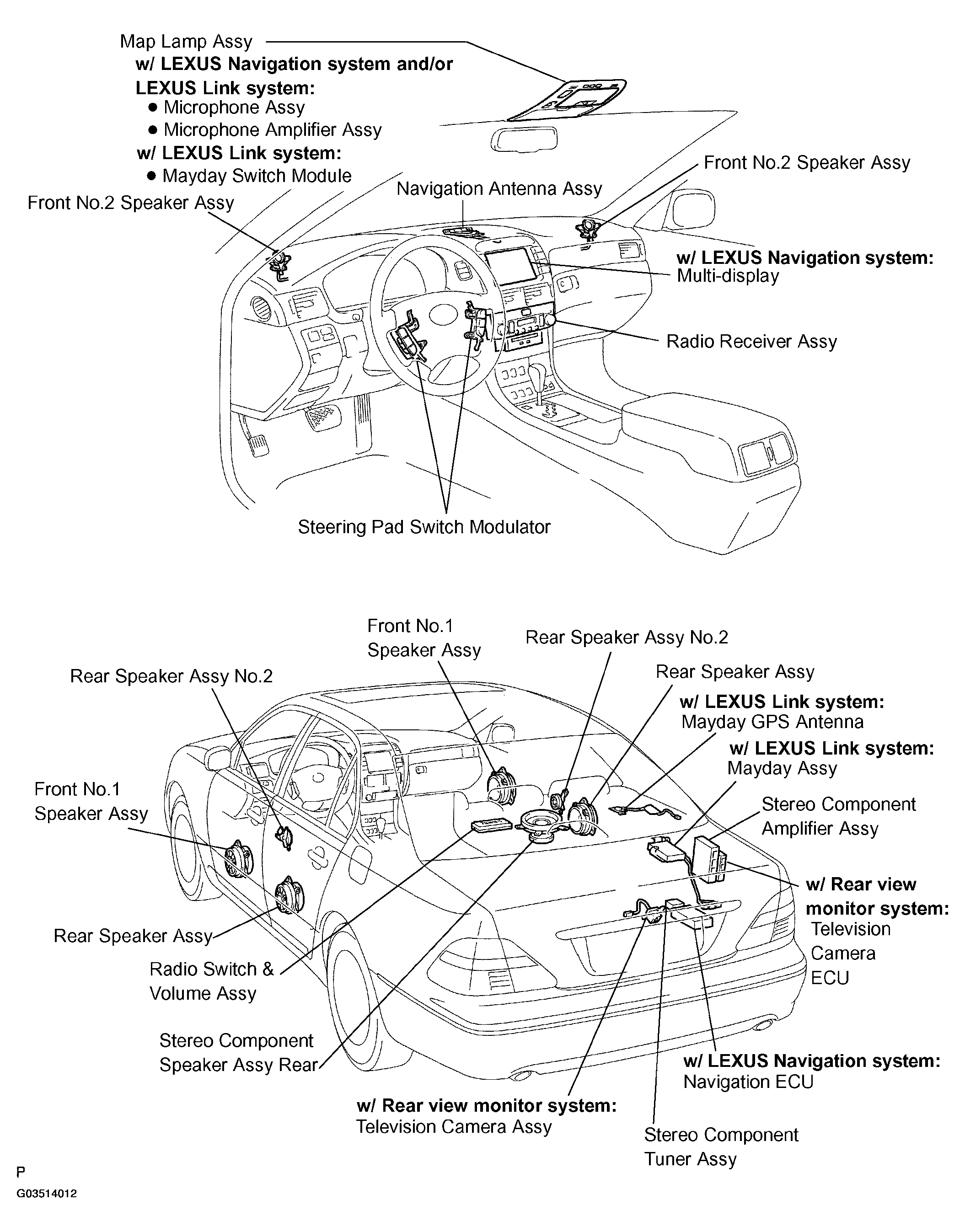

Fig 1: Identifying Audio & Visual System Location (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Audio & Visual System Location (2 Of 3)

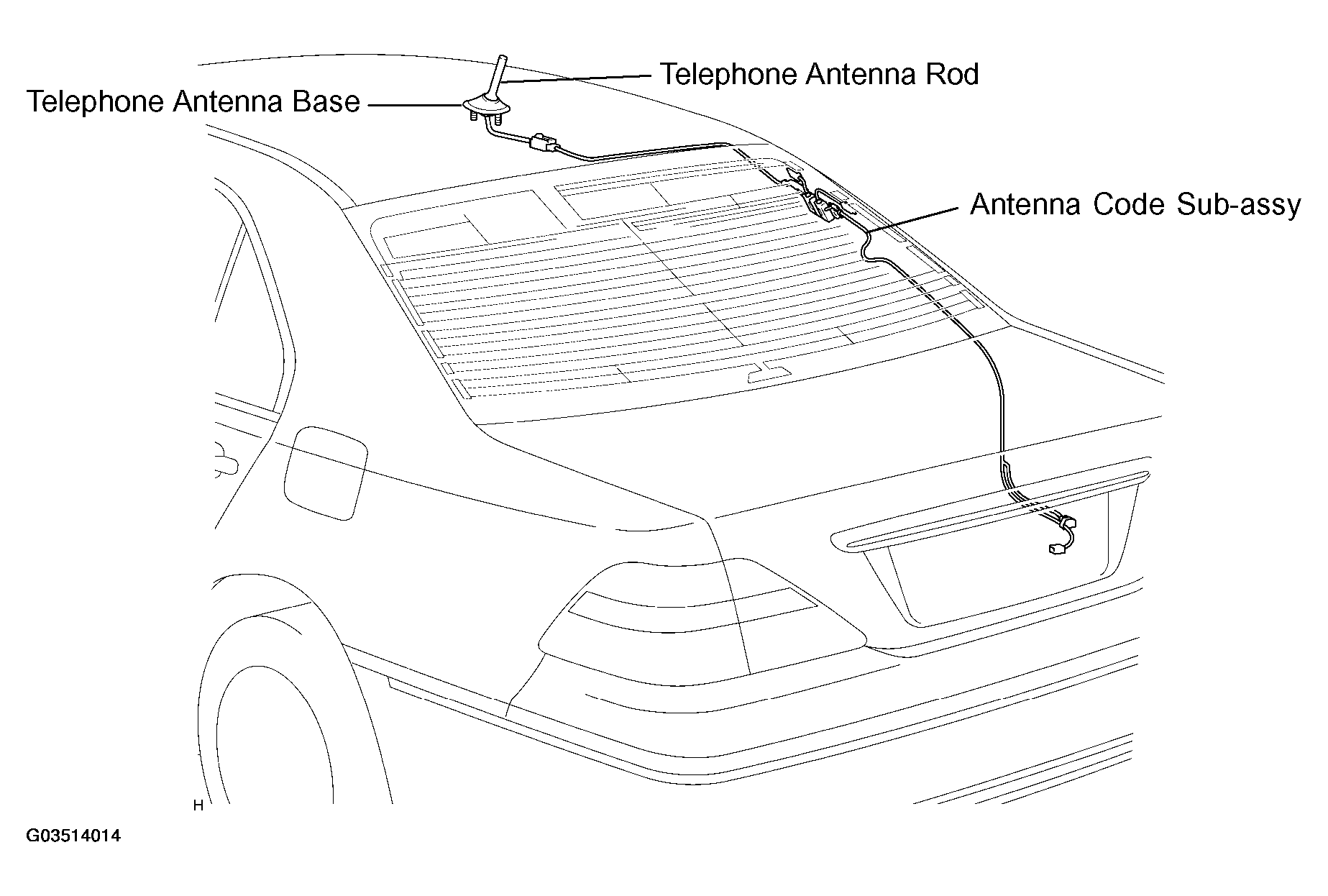

Fig 3: Identifying Audio & Visual System Location (3 Of 3)
