Specifications & Procedures

Automatic belt tension is used to provide proper tension on serpentine drive belt. No adjustment is necessary.

For drive belt routing, see Fig 1.

DRIVE BELT ROUTING

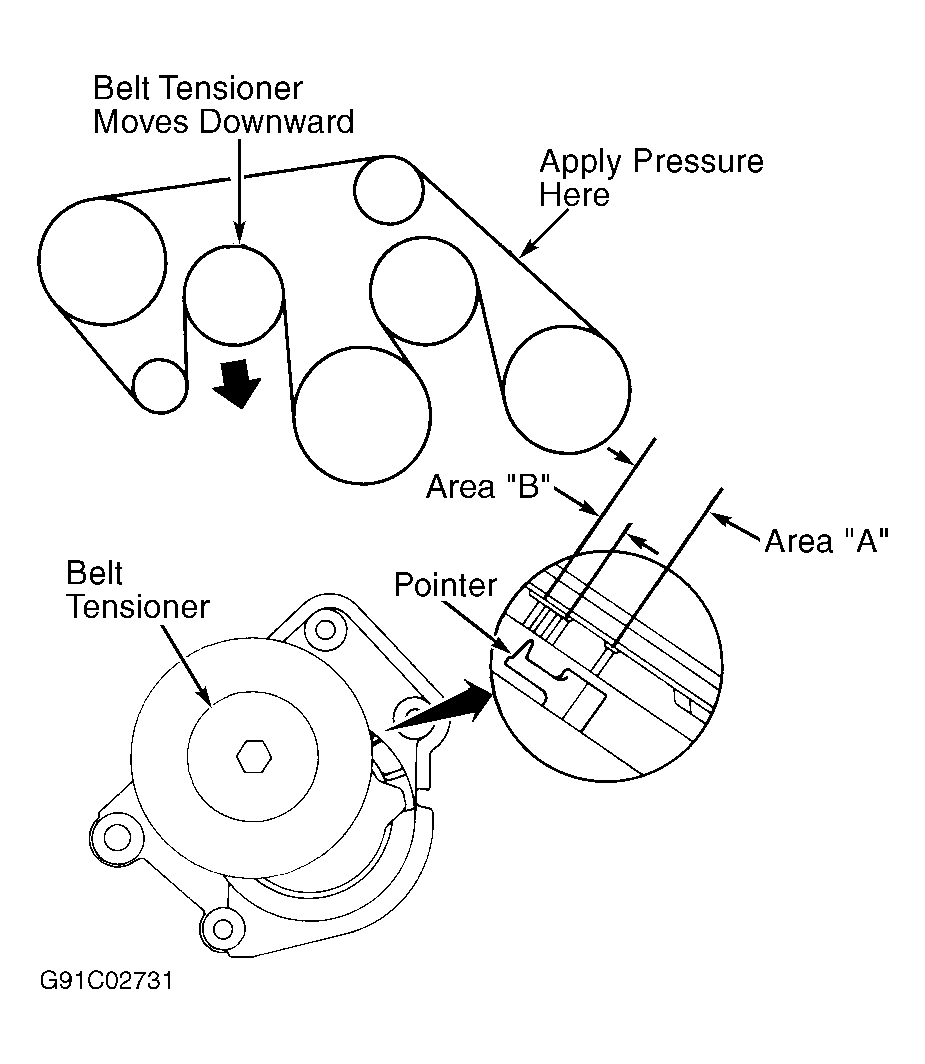

Fig 1: Serpentine Belt And Checking Belt Tension
