Diagnostic Tester Immobilizer Functions (SS005-01)

DIAGNOSTIC TESTER IMMOBILIZER FUNCTIONS

TECHNICAL SERVICE BULLETIN

Introduction

The Diagnostic Tester incorporates support for Immobilizer system service. This bulletin covers the following Immobilizer functions available using the Diagnostic Tester:

• Transponder Key Type
• Transponder Code Registration
• Transponder Code Erasure
• Transponder ECU Reset
• Transponder ECU Replacement
• Engine ECU Replacement
  NOTE: The available functions and procedures for the models listed in this TSIB differ slightly from previous models and other Immobilizer systems currently in use on Lexus vehicles.

Warranty Information

OP CODE	DESCRIPTION	TIME	OFP	T1	T2
N/A	Not Applicable to Warranty	-	-	-	-

Applicable Vehicles

MODEL YEAR	MODEL	ENGINE MODEL
2001 & Later	LS430	3UZ-FE
2002 & Later	SC430	3UZ-FE
2003 & Later	GX470	2UZ FE
	LX470
2004 & Later	ES330	3MZ FE
	RX330
2006	GS 300 (w/o Smart Key)	3GR-FSE
	GS 430 (w/o Smart Key)	3UZ-FE

Parts Information

PREVIOUS PART NUMBER	CURRENT PART NUMBER	PART NAME
N/A	Model Specific	Replacement Transponder Key (Master or Sub)

Required SSTs

ITEM NO.	SPECIAL SERVICE TOOLS (SSTs)		PART NUMBER	QTY	DRW(2)

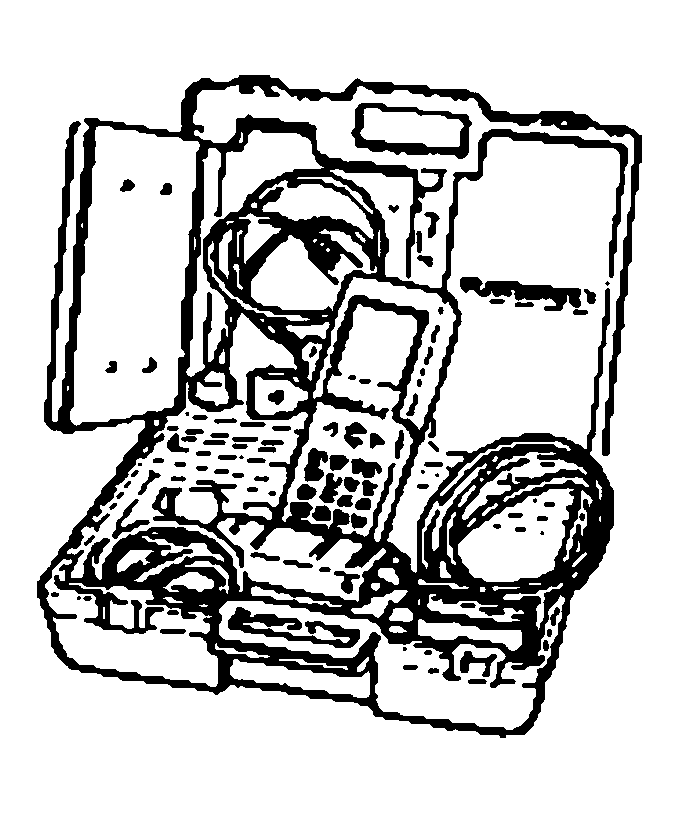

1	Lexus Diagnostic Tester Kit (1)  NOTE: All components from this kit/set are required 12 Megabyte Diagnostic Tester Program Card (P/N 01002593-005) with version 13.0a Software (or later) is required	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	LEX220036	1	8
2	CAN Interface Module Kit (1)  NOTE: All components from this kit/set are required	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	01002744	1	8
(1) Essential SSTs. (2) Refers to drawer number in SST Storage System.

Function Description

1. Transponder Key Type

   Before any Immobilizer functions are performed, verify the type of transponder key that you are attempting to use for the service operation. Some functions may only be performed with a registered Master Key.

2. Transponder Code Registration

   This function allows the registration of additional transponder keys (Master or Sub) using a registered Master Key.

3. Transponder Code Erasure

   This function allows the user to erase all the transponder keys except the registered Master Key used during this function.

4. Transponder ECU Reset

   This function allows the registration of a new Master Key even if all original Master Keys are lost. Once the Immobilizer system is reset, all previous registered keys will be erased.

5. Transponder ECU Replacement

   When the Transponder ECU is replaced, the transponder keys must be registered to the new ECU, auto registration closed, and ECU communication completed.

6. Engine ECU Replacement

   When the Engine ECU is replaced, ECU communication must be completed to synchronize an encrypted security code between the engine and Transponder ECUs.

Operation Procedure

1. Transponder Key Type

   Before any Immobilizer functions are performed, verify the type of transponder key that you are attempting to use for the service operation. Some functions may only be performed with a registered Master Key.

   1. Insert the current key into the ignition cylinder and turn to the ON position.

      HINT:

      The Immobilizer key blanks are preconfigured as Master or Sub Keys. Master Key blanks cannot be registered as Sub Keys nor can Sub Key blanks be registered as Master Keys. Also, the flat key is now enabled as a full function Master Key that must be registered.

   2. Follow the screen flow in Fig 1 to determine the key type.
   3. Key type and registration status will be indicated on the Immobilizer data list (Fig 1, screen E).
      • "MATCH" = The key in the ignition cylinder matches this key type.
      • "NOMATCH" = The key in the ignition cylinder does NOT match this key type.

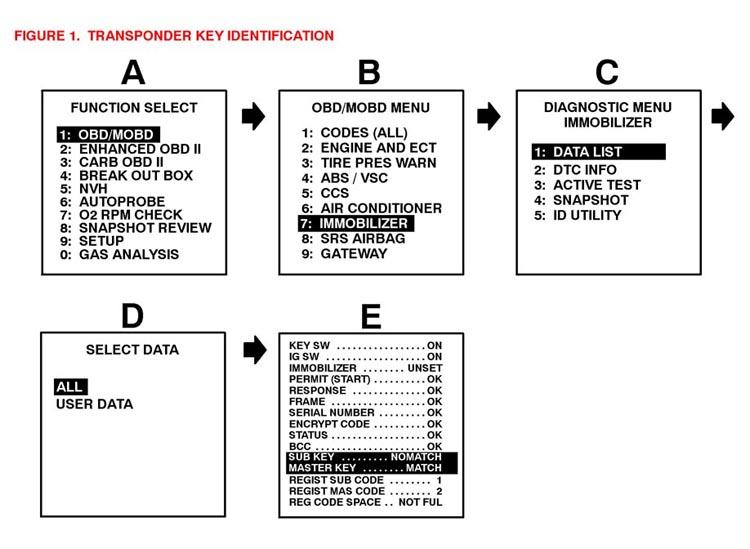

        Fig 1: Transponder Key Identification Flow Chart

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Transponder Code Registration

   This function allows the normal registration of additional transponder keys (Master or Sub) using a registered Master Key.

   NOTE: This function requires the use of one registered Master Key. The use of a Sub Key will NOT complete Transponder Code Registration. Attempting registration of additional keys with only a Sub Key will result in errors and incomplete registration.

   HINT:

   The Immobilizer key blanks are preconfigured as Master or Sub Keys. Master Key blanks cannot be registered as Sub Keys nor can Sub Key blanks be registered as Master Keys. Also, the flat key is now enabled as a full function Master Key that must be registered.

   1. Insert a registered Master Key into the ignition cylinder and turn to the ON position.
   2. Follow the screen flow in Fig 3 to register new Master or Sub keys. It is possible to register up to 5 Master Keys and 3 Sub Keys.
   3. Be sure to follow the instructions on key insertion, ignition ON/OFF and key removal exactly as described on the Diagnostic Tester.

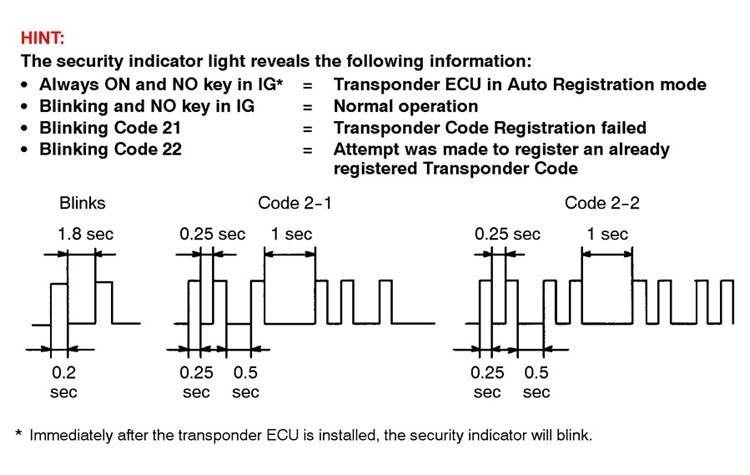

      Fig 2: Identifying Blinking Pattern

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

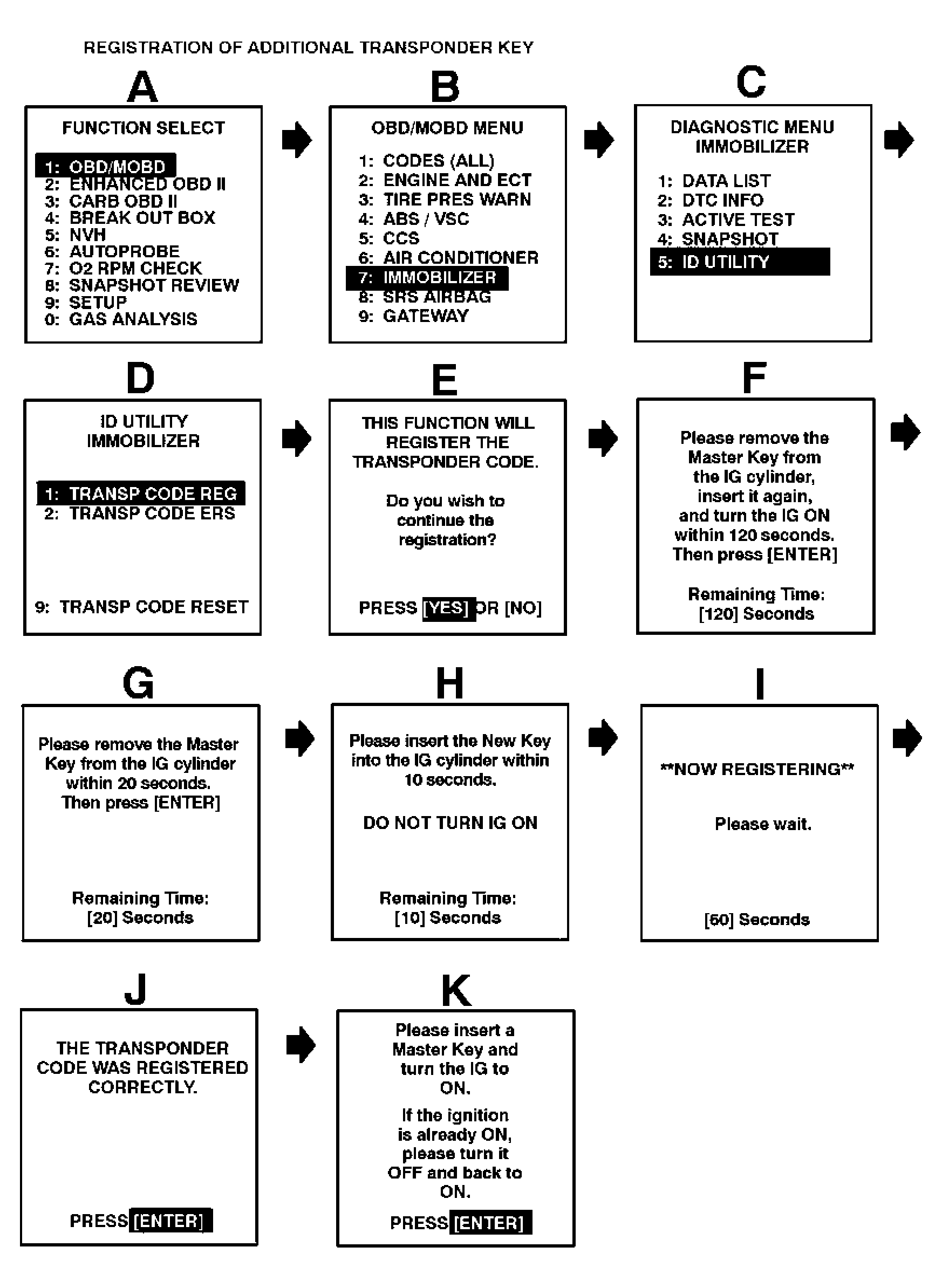

      Fig 3: Registration Of Additional Transponder

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Transponder Code Erasure

   This function allows the user to erase all the transponder keys except the registered Master Key used during this function.

   NOTE: This function requires the use of one registered key. The use of a Sub Key will NOT complete Transponder Code Erasure.
   1. Insert a registered Master Key into the ignition cylinder and turn to the ON position.
   2. Follow the screen flow in Fig 4 below to erase all Master or Sub keys, except the registered Master Key used for this procedure.

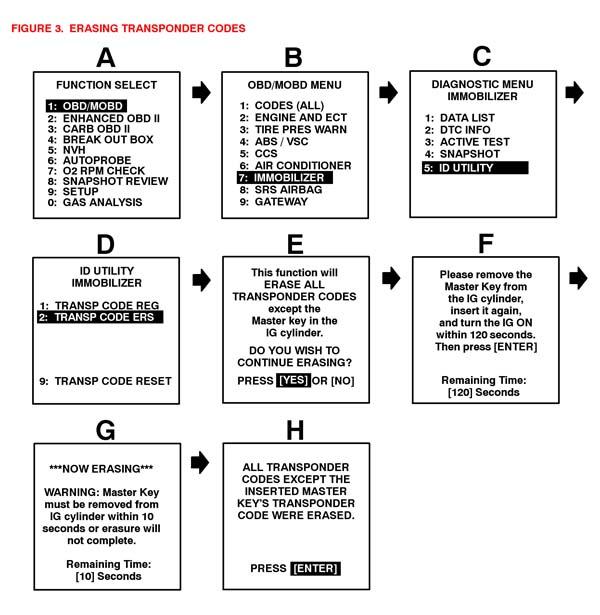

      Fig 4: Erasing Transponder Codes

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Transponder ECU Reset

   This function allows the registration of a new Master Key even if all original Master Keys are lost. Once the Immobilizer system is reset, all previous registered keys will be erased. Use a new transponder Master Key to complete Transponder ECU Reset.

   Immobilizer Reset

   The Immobilizer Reset function is a 4-step process:

   1. Using the Diagnostic Tester, retrieve a "Seed Number" through the OBD/MOBD Immobilizer  function.
      • A "Seed Number" is a unique number provided by the Diagnostic Tester and validated at TMS in order to return a Passcode.
   2. Using the TIS (Technical Information System) workstation, select Immobilizer Reset  , and complete the request form to retrieve a "Passcode Number."
      • A "Passcode Number" is a unique number required by the Diagnostic Tester to reset the ECU allowing it to accept a new Master Key.
   3. Enter the "Passcode Number" received from TIS into the Diagnostic Tester, register any additional customer keys, and close auto registration mode.
   4. Confirm successful Immobilizer reset and new Master Key registration.

   TRANSPONDER ECU RESET

   1. Connect the Diagnostic Tester to DLC3 and turn ignition ON.
      1. Using the Diagnostic Tester, retrieve a "Seed Number" through the OBD/MOBD Immobilizer  function.
      2. Follow each step outlined in Fig 5.

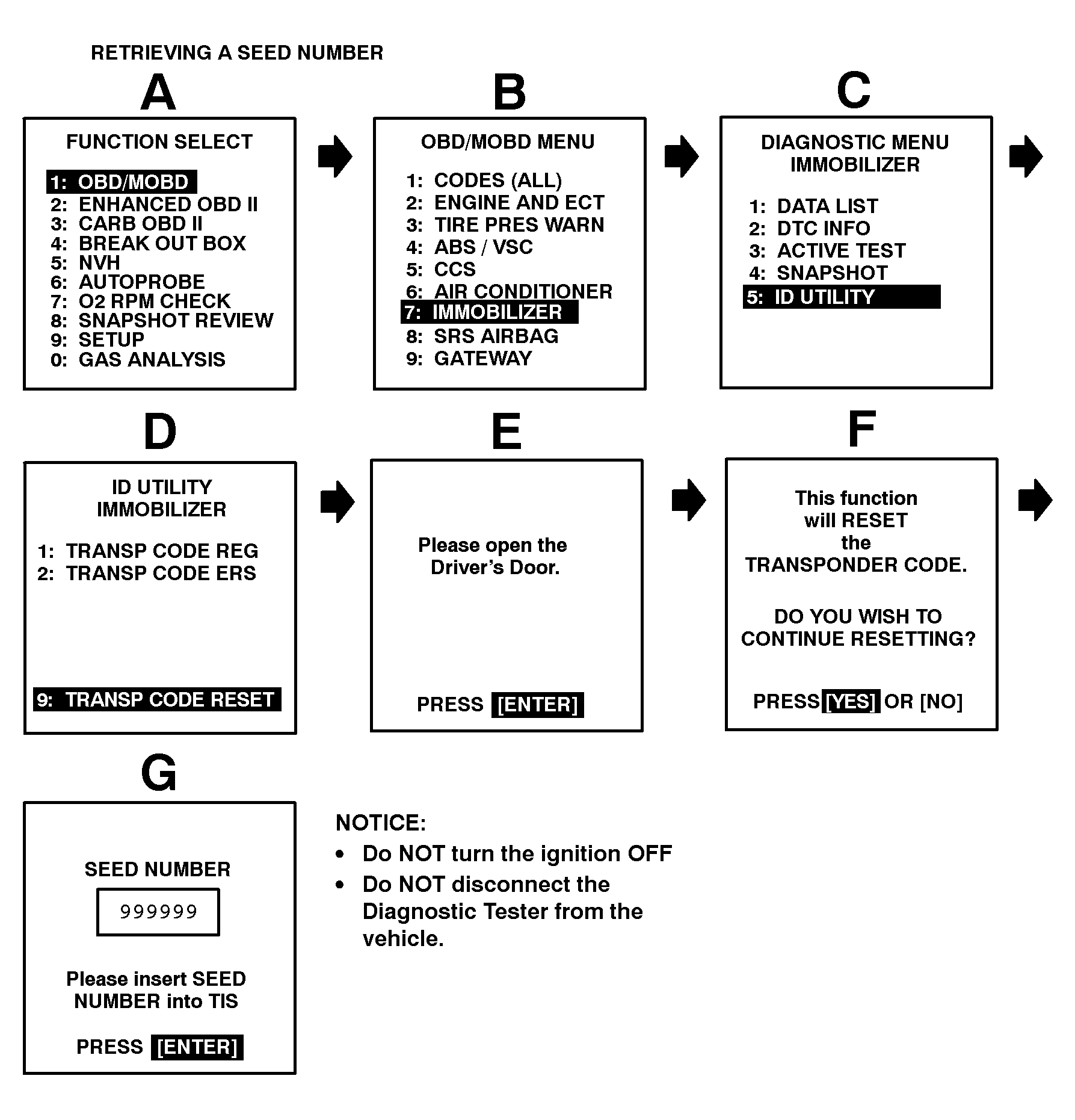

         Fig 5: Retrieving Seed Number

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Using the TIS workstation, select Immobilizer Reset  , and complete the request form to retrieve a "Passcode Number."
      1. Click on Diagnostics.
      2. Click on Immobilizer Reset.

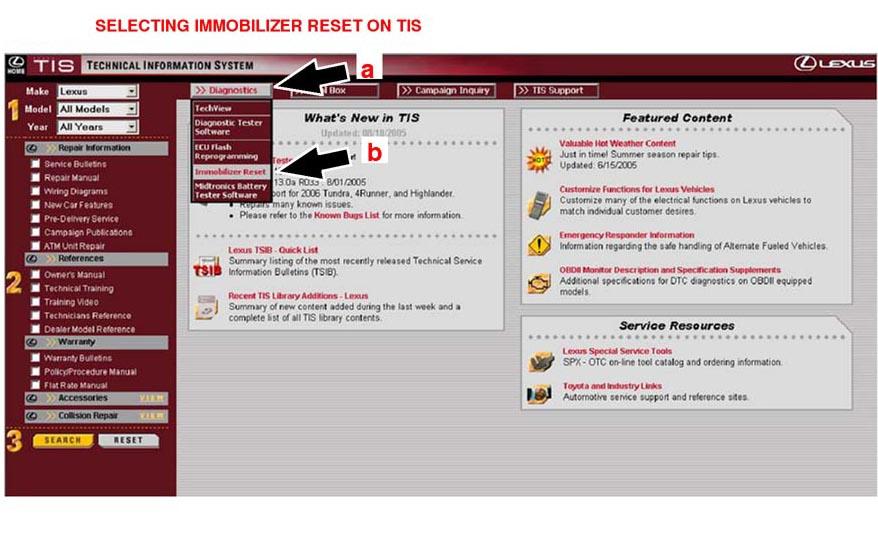

         Fig 6: Selecting Immobilizer Reset On TIS

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Read the instructions on the screen and click on Continue. (See Fig 7 below.)

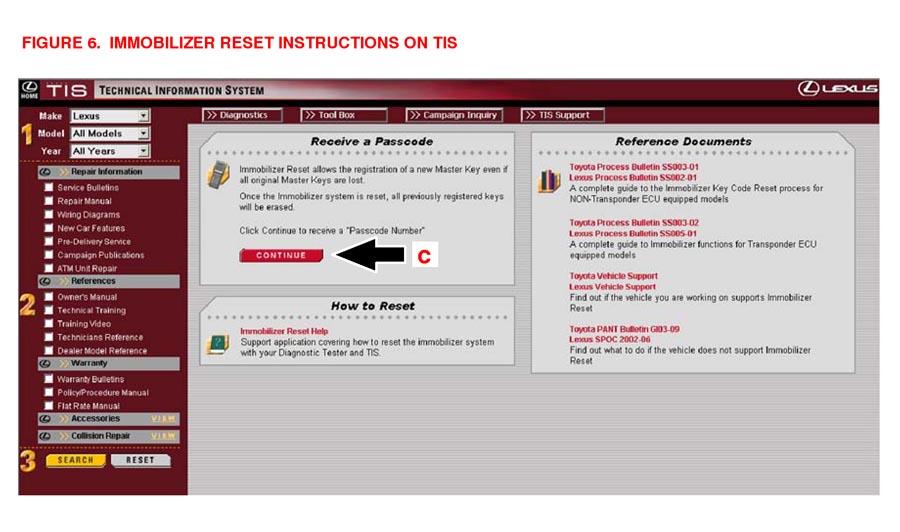

         Fig 7: Immobilizer Reset Instructions On TIS

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Complete the request form and enter the "Seed Number" from the Diagnostic Tester. Click on Submit  (Fig 8).
         NOTE: All fields must be completed.

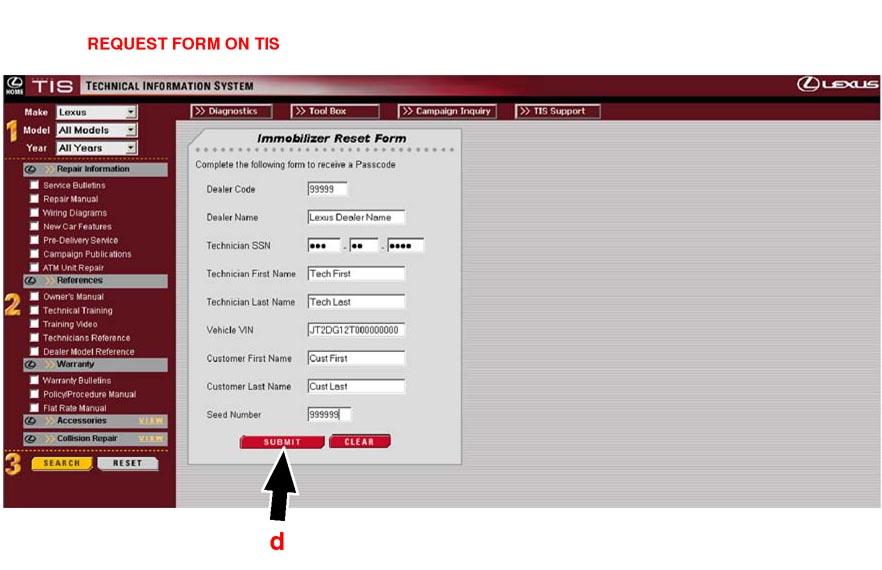

         Fig 8: Request Form On TIS

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. TIS will now return the Passcode that needs to be entered into the Diagnostic Tester.
         NOTE: The Passcode given by TIS is only valid for one Immobilizer Reset Event.

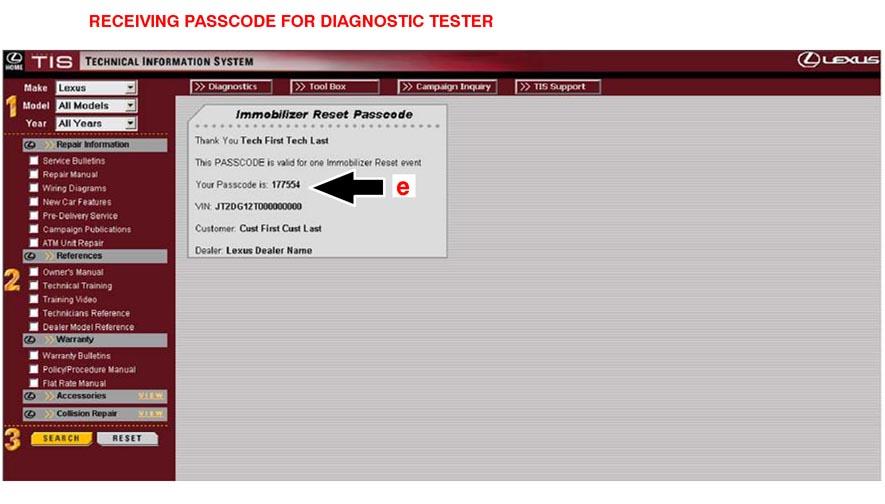

         Fig 9: Receiving Passcode For Diagnostic Tester

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Using the numbered keys (0-9) on the Diagnostic Tester, enter the "Passcode Number" received from TIS into the Diagnostic Tester (see Fig 10 below). Press ENTER  to clear all registered transponder codes except the Master key in the ignition cylinder.
      NOTE:

      • During the reset process do not remove the key from the ignition.
      • This step takes approximately 16 minutes.

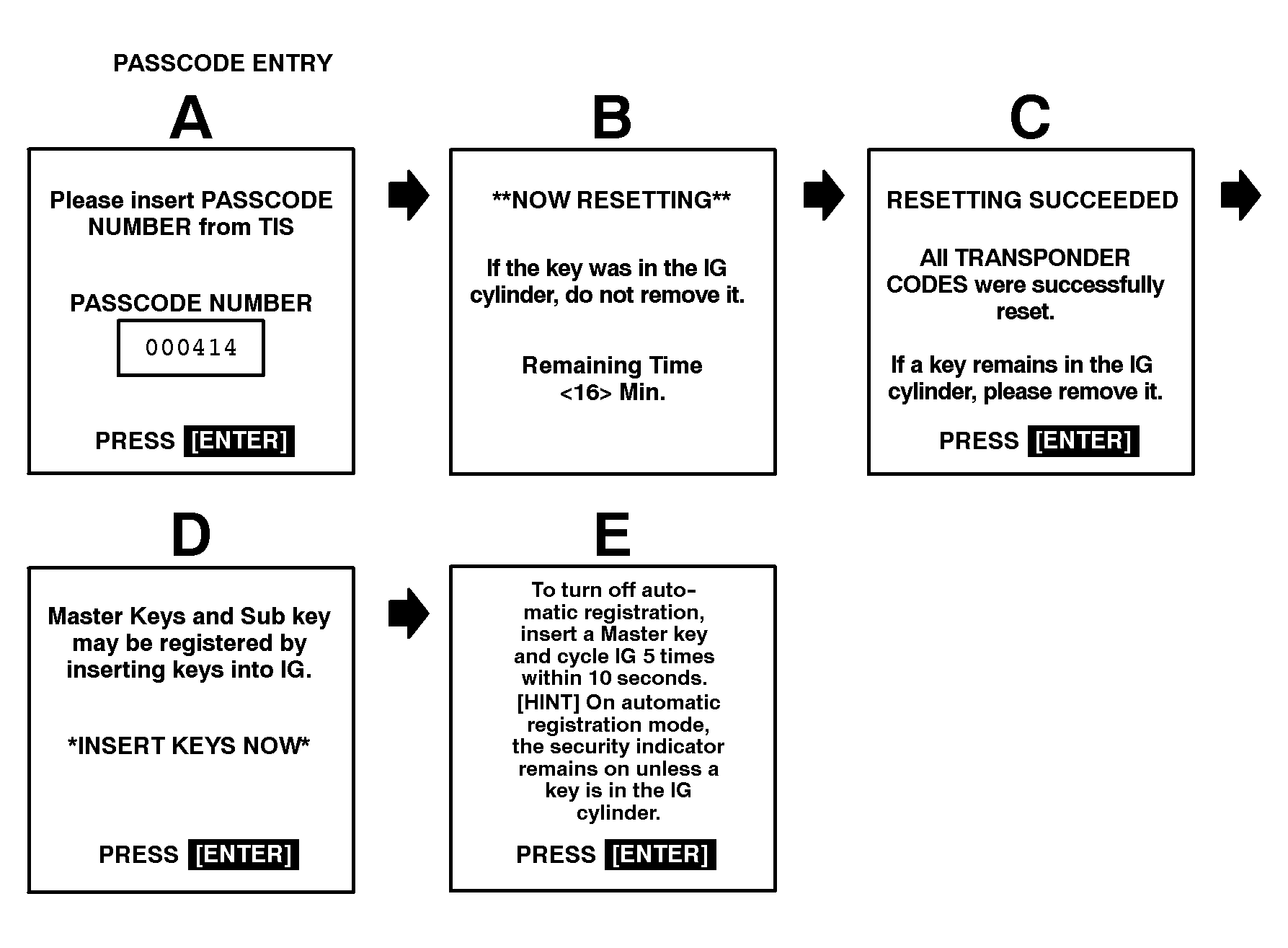

      Fig 10: Passcode Entry

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • Following a reset, the Transponder ECU is in auto registration mode.
      • Auto registration mode allows 3 Master Keys and one Sub Key to register automatically.
      • To register additional keys, remove the Master Key currently in the ignition. Insert keys (Master or Sub) into the ignition cylinder without turning the ignition on or off - simply insert and remove. (See Fig 10, screen D.)
      NOTE:

      • If 4 keys are registered at this time, auto registration mode is automatically closed.
      • If less than 4 keys are registered at this time, auto registration mode must be closed manually by cycling the ignition ON/OFF more than 5 times in 10 seconds. (See Fig 10, screen E.)
      • If more than 4 keys need to be registered, use Transponder Code Registration.
   4. Verify that keys are registered correctly by starting the engine with each newly registered key.
      NOTE:

      • If the vehicle starts, the new key code was registered correctly.
      • If the vehicle does not start with any key, perform the Immobilizer Reset function again.
      • If only one of the registered keys will not start the vehicle, attempt to register the key again following the Transponder Code Registration procedure. See step  2.
5. Transponder ECU Replacement

   When the Transponder ECU is replaced, the transponder keys must be registered, auto registration closed, and ECU communication completed.

   1. Replacement transponder ECUs are in auto registration mode. This allows transponder keys to automatically register as they are inserted into the ignition cylinder. It is possible to automatically register 3 Master Keys, and 1 Sub Key.
      NOTE:

      • If 4 keys are registered at this time, auto registration mode is closed.
      • If less than 4 keys are registered at this time, auto registration mode must be closed manually by cycling the ignition ON/OFF more than 5 times in 10 seconds.
      • If more than 4 keys need to be registered, use Transponder Code Registration procedure (page 5 of this bulletin).
   2. Once auto registration mode is closed, ECU Communication must be performed between the transponder ECU and the Engine ECU. Complete ECU communication using the following steps:
      1. Insert registered Master Key into the ignition cylinder.
      2. Turn ignition ON (engine OFF).
      3. Short Tc and CG terminals of DLC3 using Diagnosis Check Wire (SST 09843-18040 or equivalent) and leave for 30 minutes. (See Fig 11.)
         Fig 11: Shorting TC And CG Terminals Of DLC3

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. After 30 minutes, turn ignition OFF and remove check wire from DLC3
      5. Start the vehicle to confirm successful ECU communication.
      NOTE: If ECU communication is not completed correctly, the engine will not start and DTC B2799 will be set. DTC B2799 will be cleared after engine starts correctly.
      Fig 12: Identifying Blinking Pattern

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. ENGINE ECU REPLACEMENT

   When the Engine ECU is replaced, ECU communication must be completed. ECU Communication must be performed between the transponder ECU and the Engine ECU. Complete ECU communication using the following steps:

   1. Insert registered Master Key into the ignition cylinder.
   2. Turn ignition ON (engine OFF).
   3. Short Tc and CG terminals of DLC3 using Diagnosis Check Wire (SST 09843-18040 or equivalent) and leave for 30 minutes. (See Fig 11.)
   4. After 30 minutes, turn ignition OFF and remove check wire from DLC3
   5. Start the vehicle to confirm successful ECU communication.
      NOTE: If ECU communication is not completed correctly, the engine will not start and DTC B2799 will be set. DTC B2799 will be cleared after engine starts correctly.
