Floor Shift ASSY: Overhaul
HINT:
COMPONENTS: See COMPONENTS
- REMOVE CONSOLE UPPER PANEL GARNISH REAR
- REMOVE CONSOLE PANEL SUB-ASSY UPPER
- REMOVE FRONT FLOOR BRACE CENTER (See OVERHAUL )
- REMOVE RR SUSPENSION MEMBER BRACE REAR LOWER LH (See OVERHAUL )
- REMOVE RR SUSPENSION MEMBER BRACE REAR LOWER RH (See OVERHAUL )
- SEPARATE OXYGEN SENSOR (See OVERHAUL )
- REMOVE EXHAUST PIPE (See OVERHAUL )
- REMOVE FRONT FLOOR HEAT INSULATOR NO.1 (See OVERHAUL )
- REMOVE PARKING BRAKE CABLE HEAT INSULATOR (See OVERHAUL )
- SEPARATE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSY
- Move the shift lever to the N position.
- Remove the nut and disconnect the shifting rod from the connecting rod swivel.
- REMOVE FLOOR SHIFT ASSY
- Disconnect the 4 connectors.

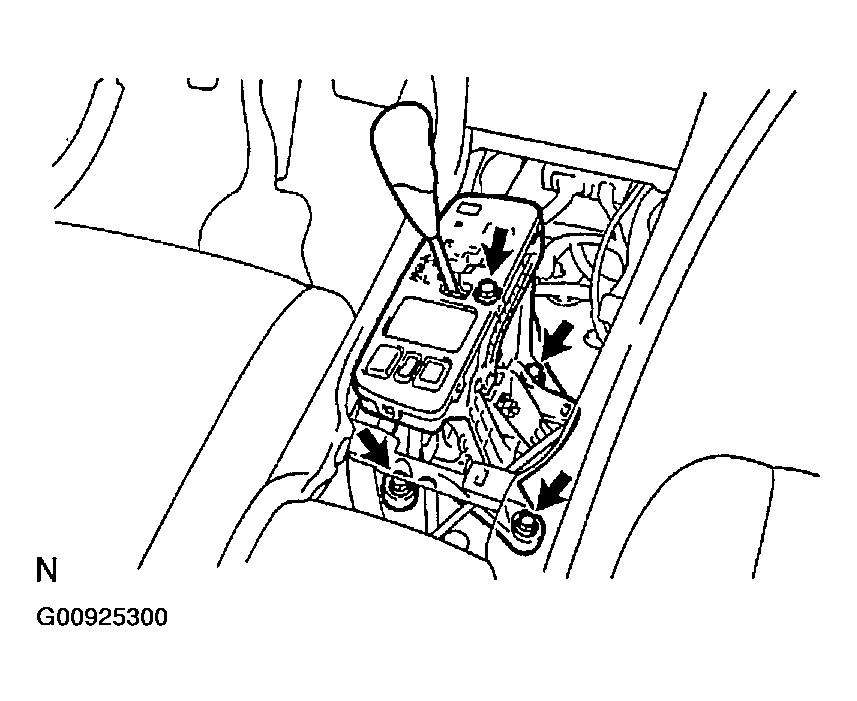

- Remove the 4 bolts and floor shift assy.
- REMOVE FLOOR SHIFT LEVER KNOB SUB-ASSY
- Remove the floor shift lever knob from the shift lever.
- REMOVE SHIFT POSITION INDICATOR

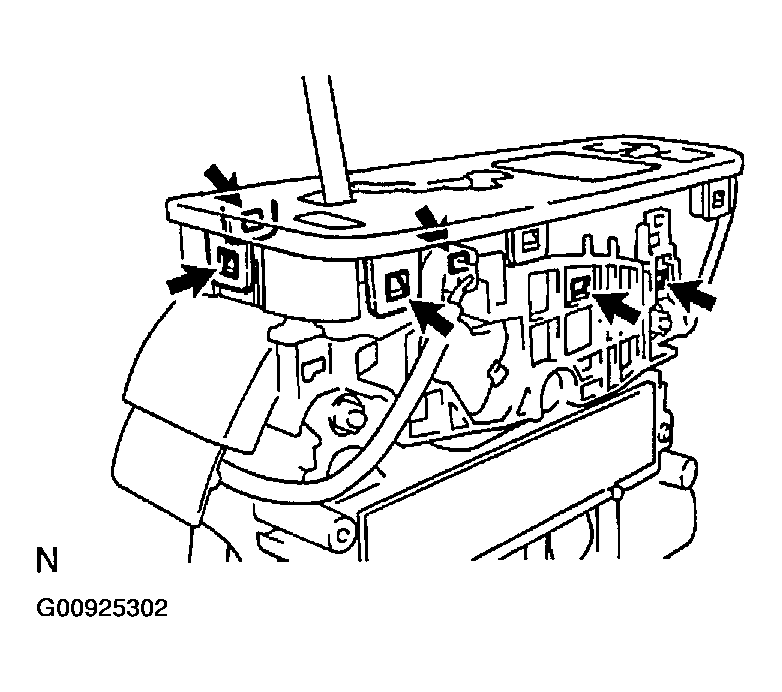

- Release the 6 claws with a screwdriver and remove the shift position indicator.
- REMOVE VEHICLE STABILITY CONTROL SWITCH
- Using a screwdriver, remove the VSC OFF switch from shift position indicator.
- REMOVE PATTERN SELECT SWITCH ASSY NO.1
- Using a screwdriver, remove the pattern select switch from shift position indicator.
- REMOVE SHIFT LEVER CAP
- Using a screwdriver, remove the shift lever cap from shift position indicator.
- REMOVE INDICATOR LAMP WIRE SUB-ASSY

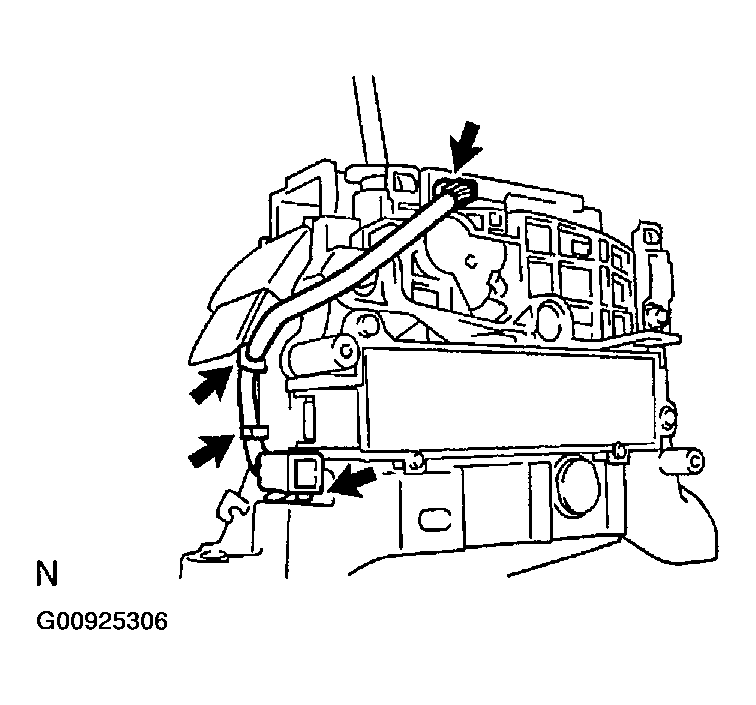

- Remove the indicator lamp wire sub-assy.
- Remove the bulb from the indicator lamp wire sub-assy.
- Using a small screwdriver, remove the terminals of the indicator lamp wire sub-assy from the connector, as show in Fig 9.
- REMOVE SHIFT LOCK CONTROL ECU SUB-ASSY

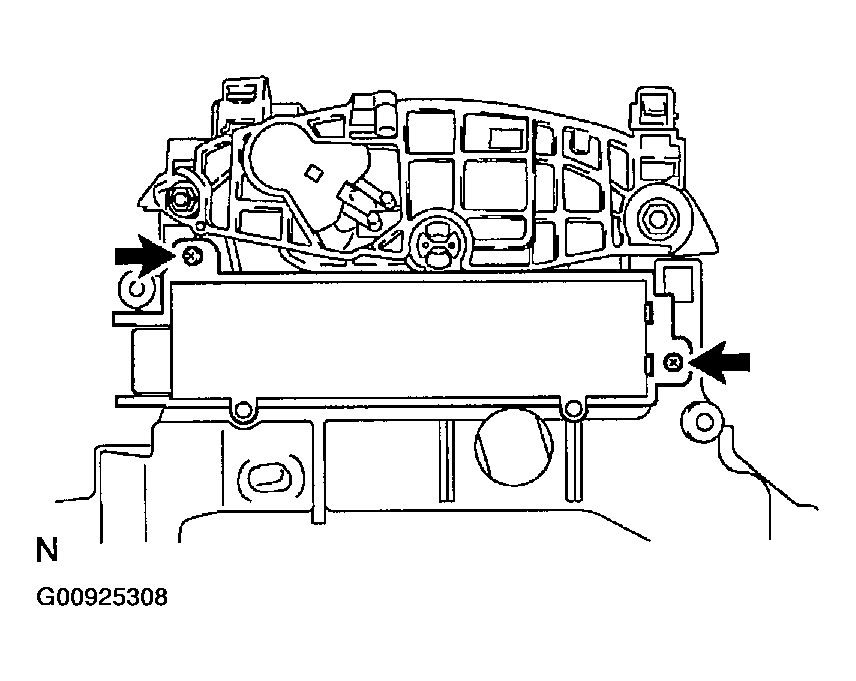

- Remove the 2 screws and the shift lock control ECU.
- INSTALL SHIFT LOCK CONTROL ECU SUB-ASSY

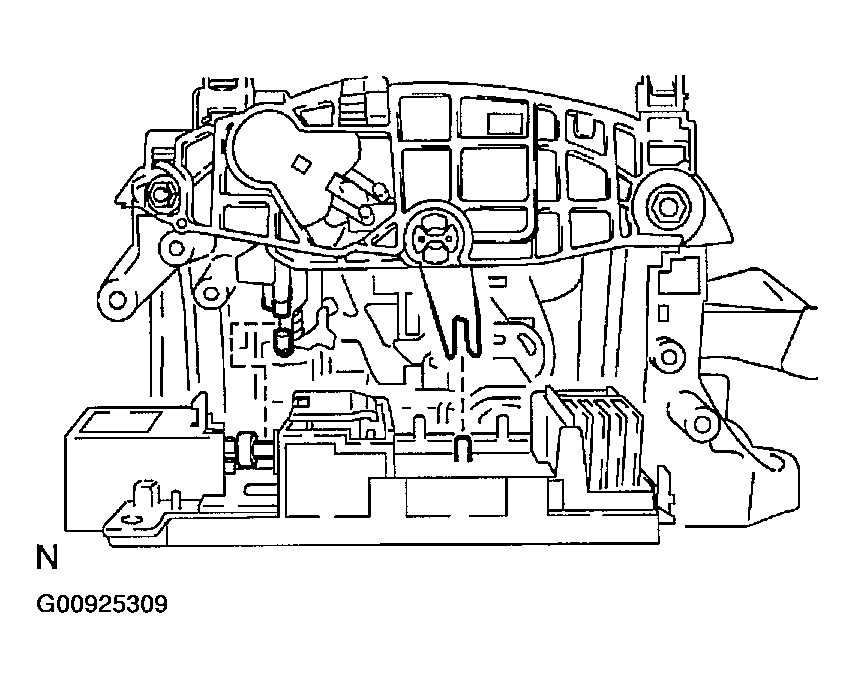

- Install the shift lock control ECU and 2 screws to the shift lever plate.NOTE: Align the 2 grooves as shown in Fig 11 .
- Install the shift lock control ECU and 2 screws to the shift lever plate.
- INSTALL INDICATOR LAMP WIRE SUB-ASSY
- Connect the 2 wire harnesses of the indicator lamp wire sub-assy to the connector.
- Install the bulb to the indicator lamp wire sub-assy.

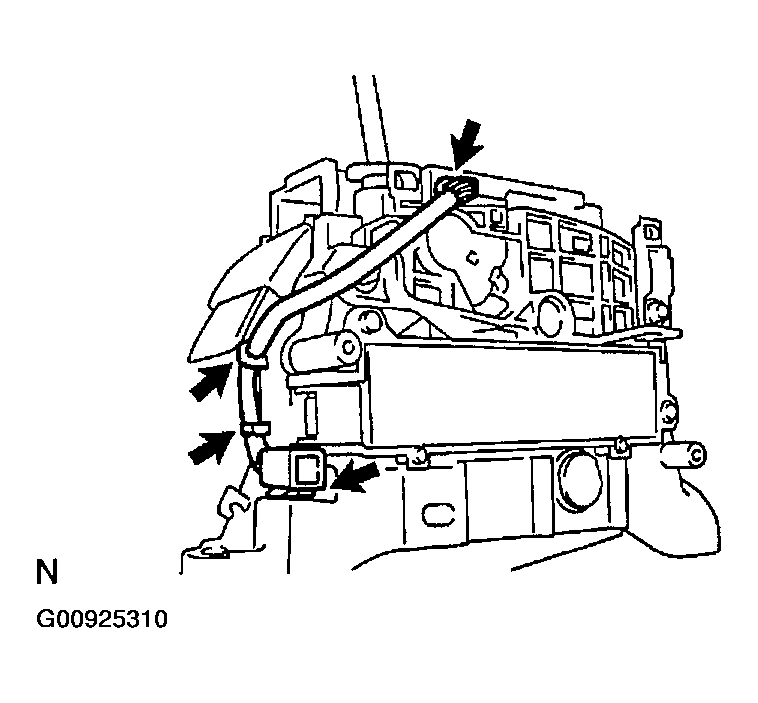

- Install the indicator lamp wire sub-assy as shown in Fig 12.
- INSTALL SHIFT LEVER CAP
- Install the shift lever cap to the shift position indicator.
- INSTALL PATTERN SELECT SWITCH ASSY NO.1
- Install the pattern select switch to the shift position indicator.
- INSTALL VEHICLE STABILITY CONTROL SWITCH
- Install the VSC OFF switch to the shift position indicator.
- INSTALL SHIFT POSITION INDICATOR

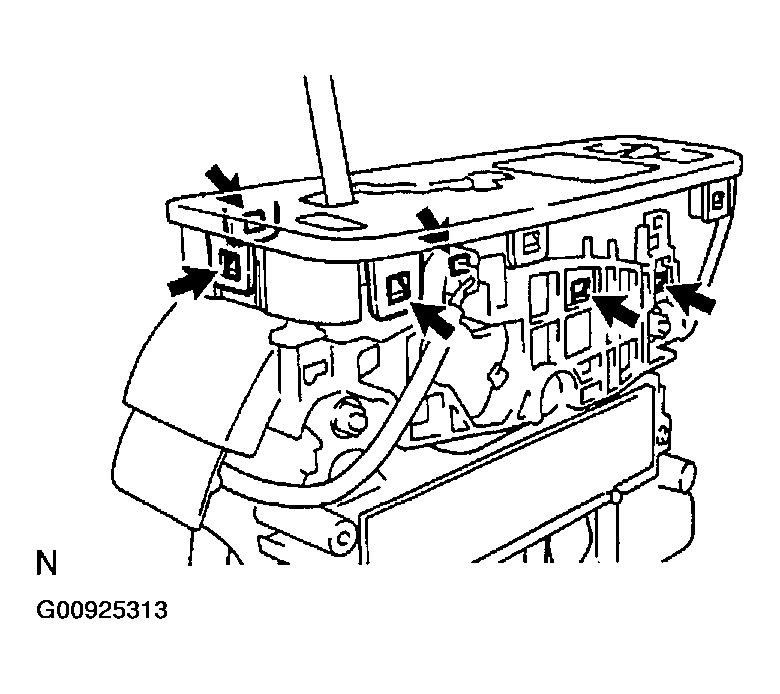

- Install the shift position indicator to the shift lever guide housing.
HINT:
Firmly make the claws fit.
- Install the shift position indicator to the shift lever guide housing.
- INSTALL FLOOR SHIFT LEVER KNOB SUB-ASSY
- Install the floor shift lever knob to the shift lever.
- INSTALL FLOOR SHIFT ASSY

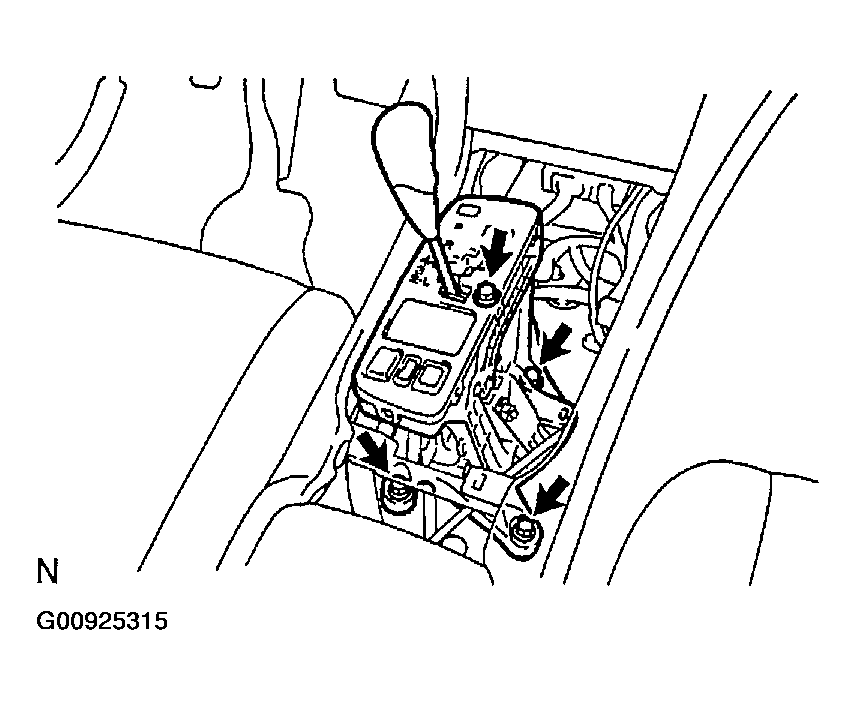

- Install the floor shift assy with the 4 bolts.
Torque: 8.3 N.m (85 kgf.cm, 74 in.lbf)
- Connect the 4 connector.
- Install the floor shift assy with the 4 bolts.
- INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSY
- Temporarily install the shifting rod to the connecting rod swivel with the nut.
- ADJUST SHIFT LEVER POSITION (See ADJUSTMENT )
- INSTALL EXHAUST PIPE (See OVERHAUL )
- INSTALL OXYGEN SENSOR (See OVERHAUL )
- INSTALL RR SUSPENSION MEMBER BRACE REAR LOWER RH (See OVERHAUL )
- INSTALL RR SUSPENSION MEMBER BRACE REAR LOWER LH (See OVERHAUL )
- INSTALL FRONT FLOOR BRACE CENTER (See OVERHAUL )
- INSPECT SHIFT LEVER POSITION (See ADJUSTMENT )
- CHECK EXHAUST GAS LEAK
