Terminals Of ECM

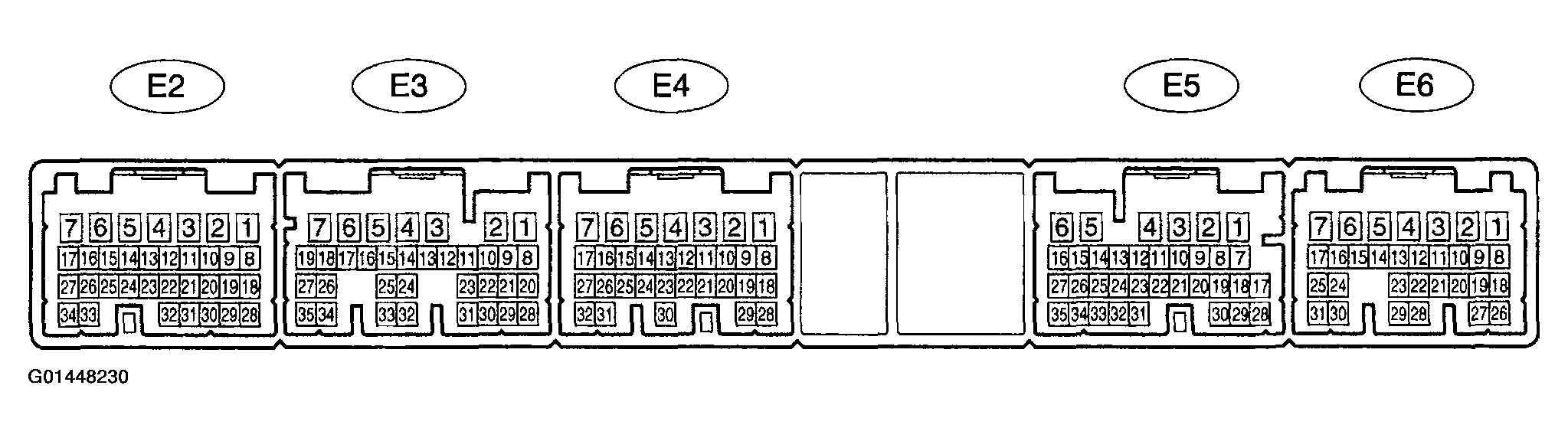

Fig 1: Identifying ECM Terminals

G01448230

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

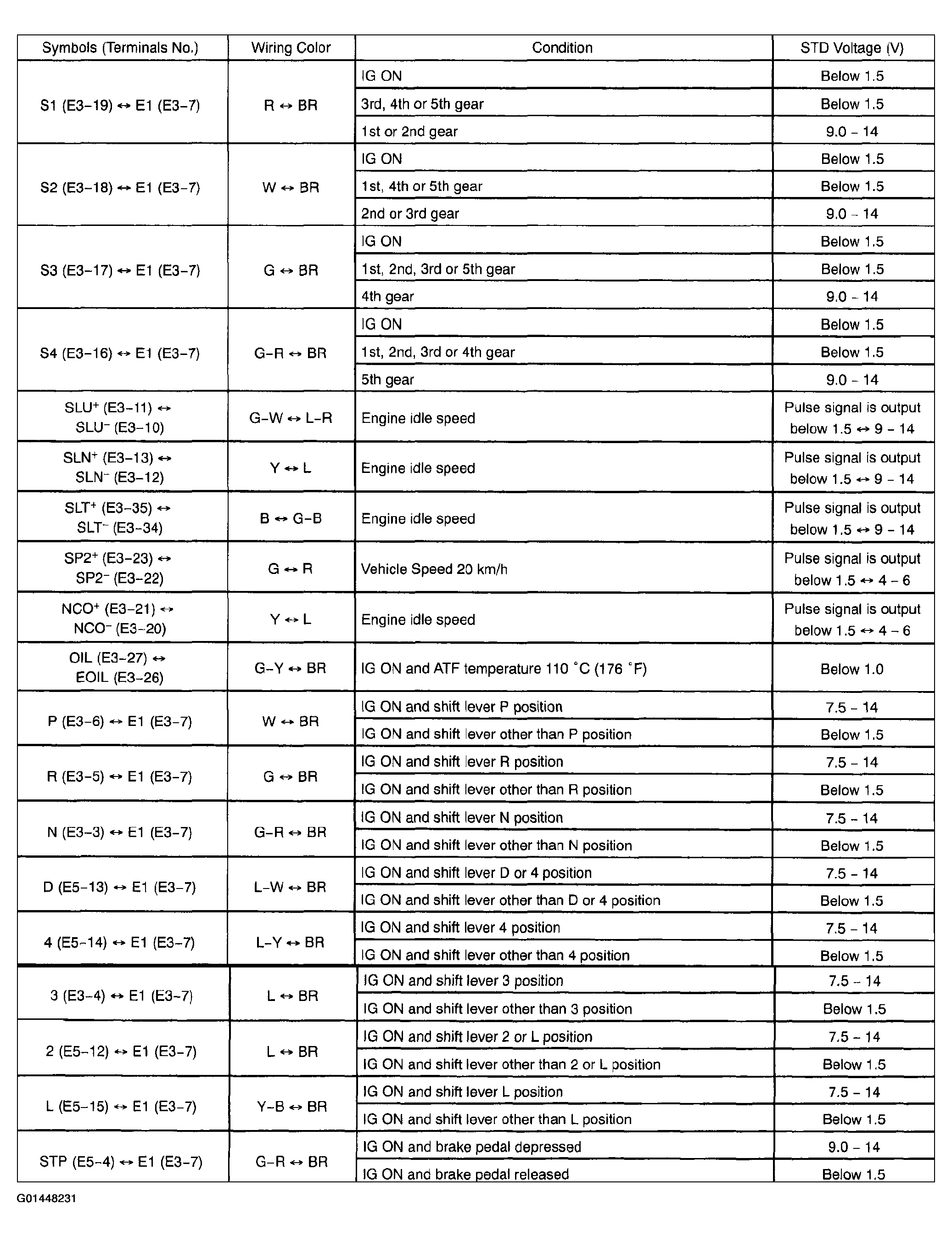

Fig 2: ECM Terminals Description

G01448231

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Reference:

Fig 3: Reference Chart

G01448232

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Signal Waveform

G01448233

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Reference:

Fig 5: Reference Chart

G01448234

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying Signal Waveform

G01448235

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Reference:

Fig 7: Reference Chart

G01448236

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Identifying Signal Waveform

G01448237

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Reference:

Fig 9: Reference Chart

G01448238

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Identifying Signal Waveform

G01448239

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Reference:

Fig 11: Reference Chart

G01448240

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Identifying Signal Waveform

G01448241

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
