Steering Pad Switch LH: Replacement

HINT:

• SEE LOCATION  .
• Installation is in the reverse order of removal.

1. (SEE  PRECAUTION  )
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (SEE  PRECAUTION  )
3. REMOVE STEERING WHEEL COVER LOWER NO.3 (SEE  OVERHAUL  )
4. REMOVE STEERING WHEEL COVER LOWER NO.2 (SEE  OVERHAUL  )
5. REMOVE HORN BUTTON ASSY (SEE  REPLACEMENT  )
6. REMOVE STEERING PAD SWITCH LH
   1. Disconnect the connector.
   2. Remove the 5 clamps.
   3. Remove the screw.

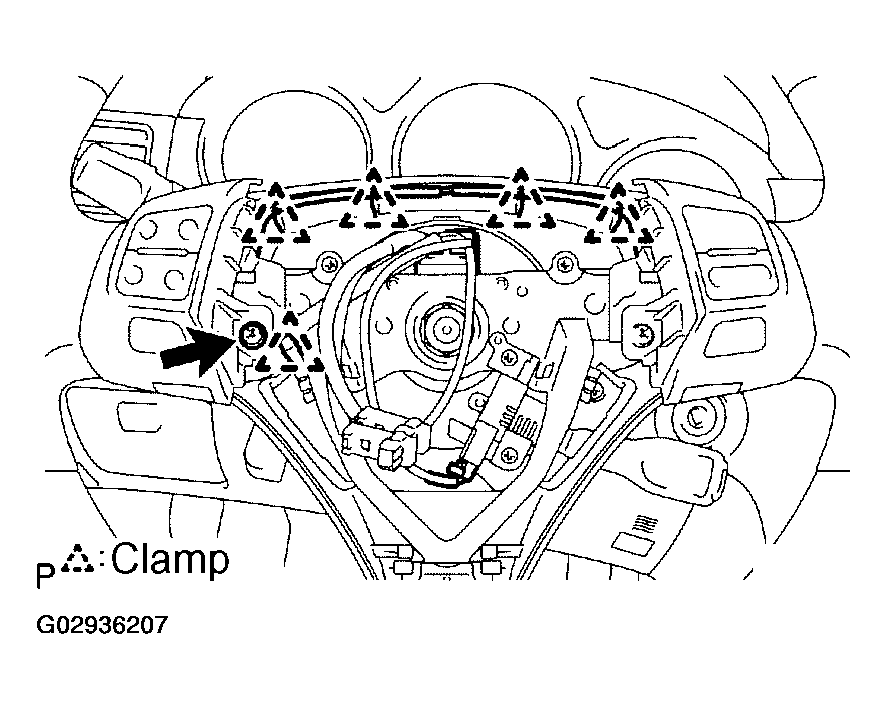

      Fig 1: Removing Clamps

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

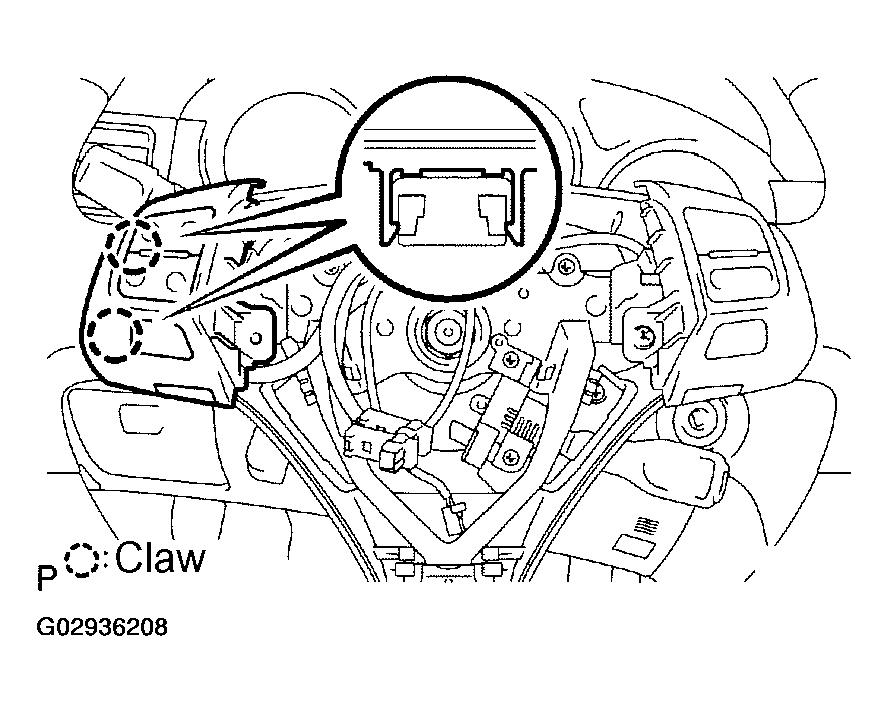

   4. Release the 2 claws and remove the steering pad switch LH.
      Fig 2: Removing Steering Pad Switch LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

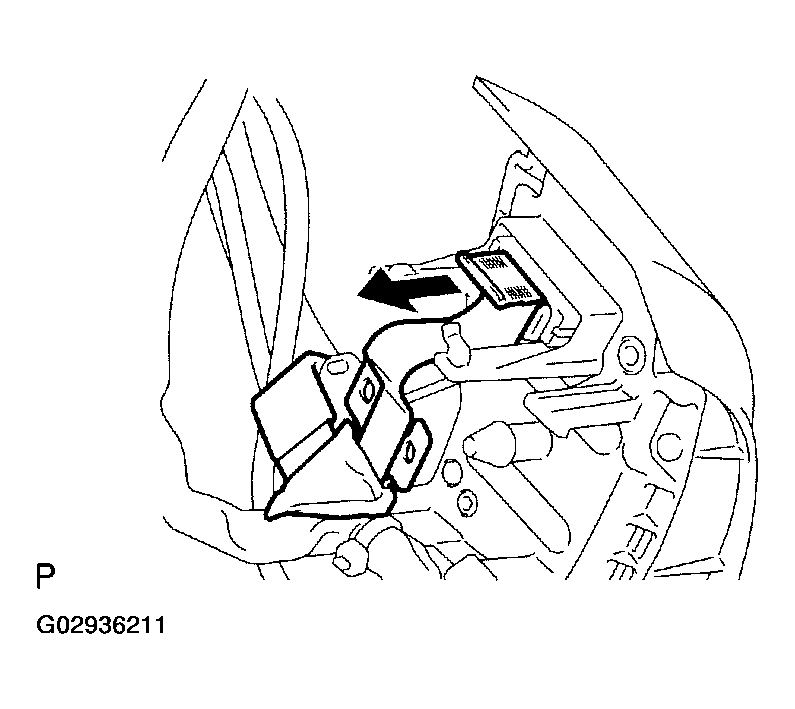

   5. Release the tab of steering pad switch cable from steering pad switch LH as shown in the illustration.
      Fig 3: Releasing Steering Pad Switch Tab Cable From Steering Pad

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

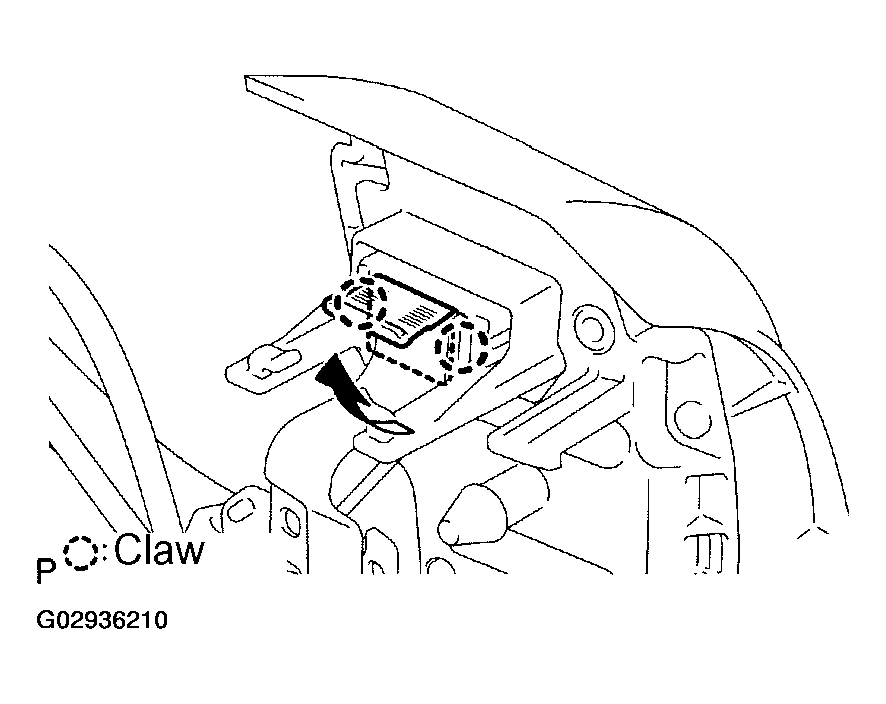

   6. Disengage the 2 claws as shown in the illustration and open the latch on the top of the connector.
      Fig 4: Disconnecting Claws On Top Of Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

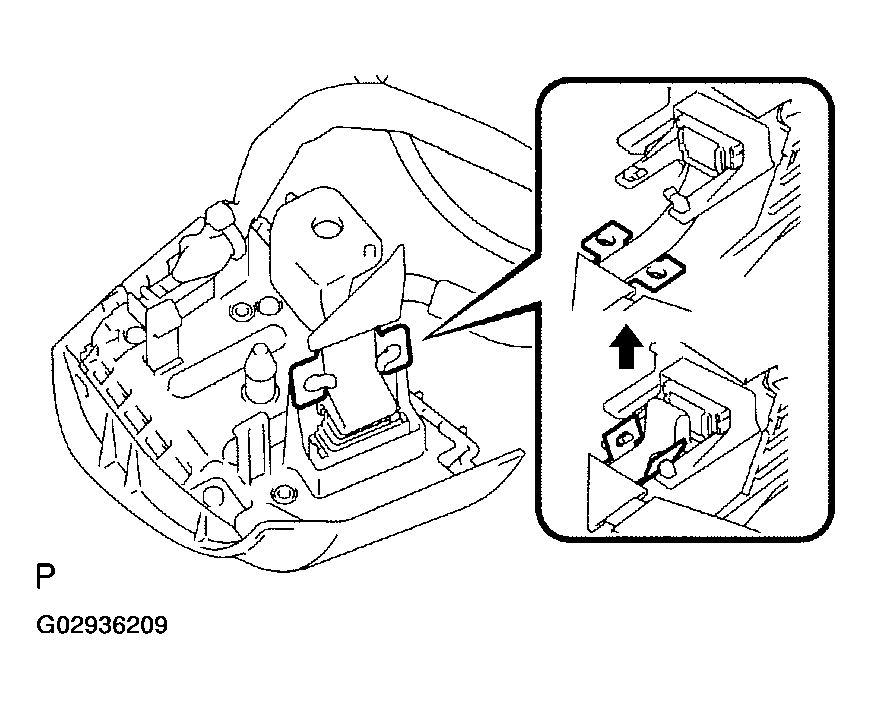

   7. Pull out the connector while pinching the latch with fingers and disconnect the steering pad switch cable from the steering pad switch LH.
      Fig 5: Disconnecting Steering Pad Switch Cable

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. INSTALL HORN BUTTON ASSY (SEE  REPLACEMENT  )
8. INSTALL STEERING WHEEL COVER LOWER NO.2 (SEE  OVERHAUL  )
9. INSTALL STEERING WHEEL COVER LOWER NO.3 (SEE  OVERHAUL  )
10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
11. INSPECT SRS WARNING LIGHT (SEE  ON-VEHICLE INSPECTION  )
