Diagnostic Trouble Code Chart
DIAGNOSTIC TERMS MEANING DESCRIPTION
| Terms | Meaning |
|---|---|
| Physical address | Three-digit code (shown in hexadecimal) which is given to each component comprising the AVC-LAN. Corresponding to the function, individual symbols are specified. |
| Logical address | Two-digit code (shown in hexadecimal) which is given to each function comprising the inner system of the AVC-LAN. |

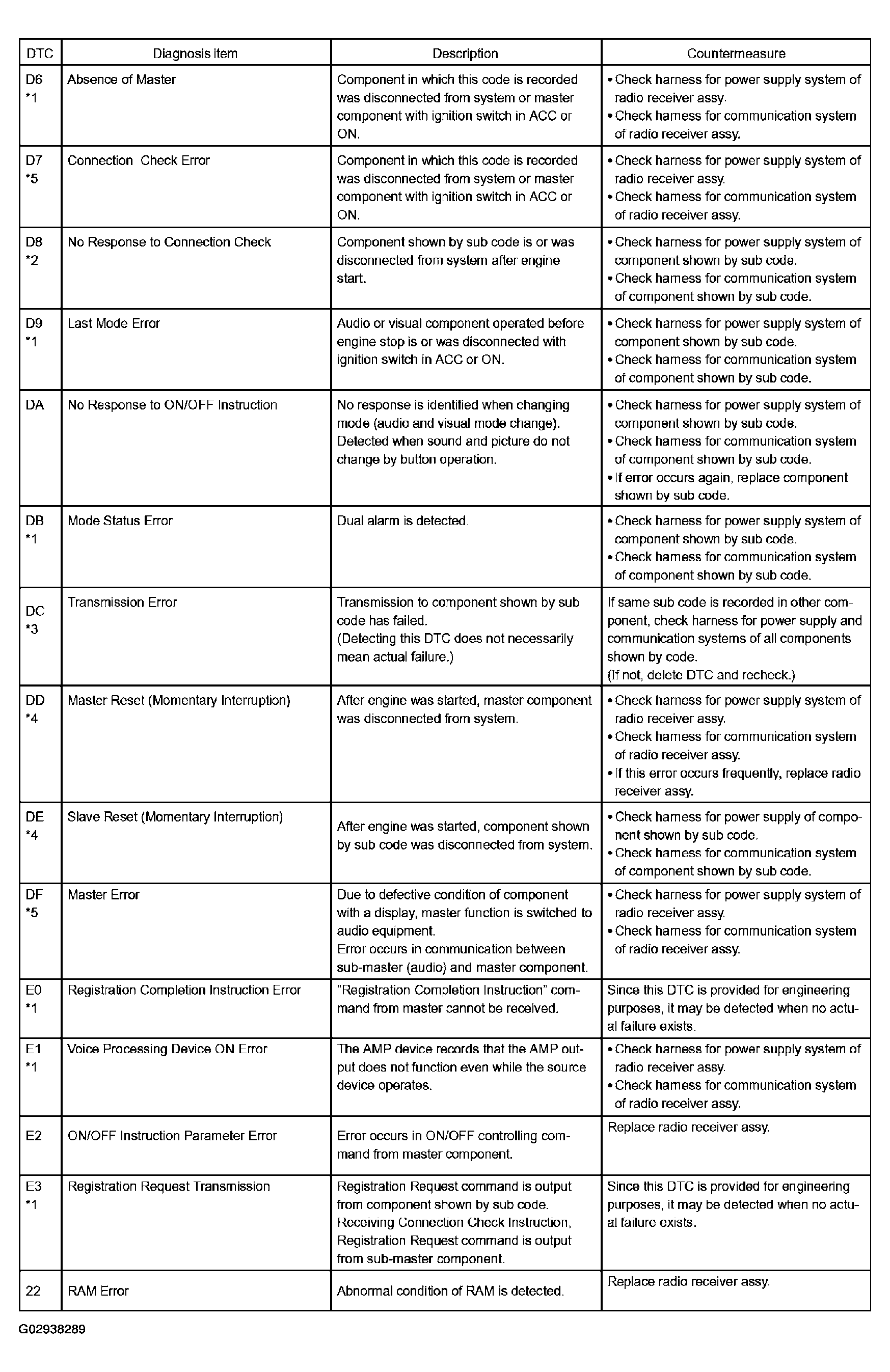

- RADIO RECEIVER ASSY (Physical address: 190)
HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting the engine.
- *2: It is stored when 180 sec. have passed after the power supply connector is pulled out after engine start.
- *3: It may be stored when the engine key is turned 1 min. after engine start.
- *4: It may be stored when the engine key is turned again after engine start.
- *5: When 210 sec. have passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.
- Logical address: 01 (Communication control)

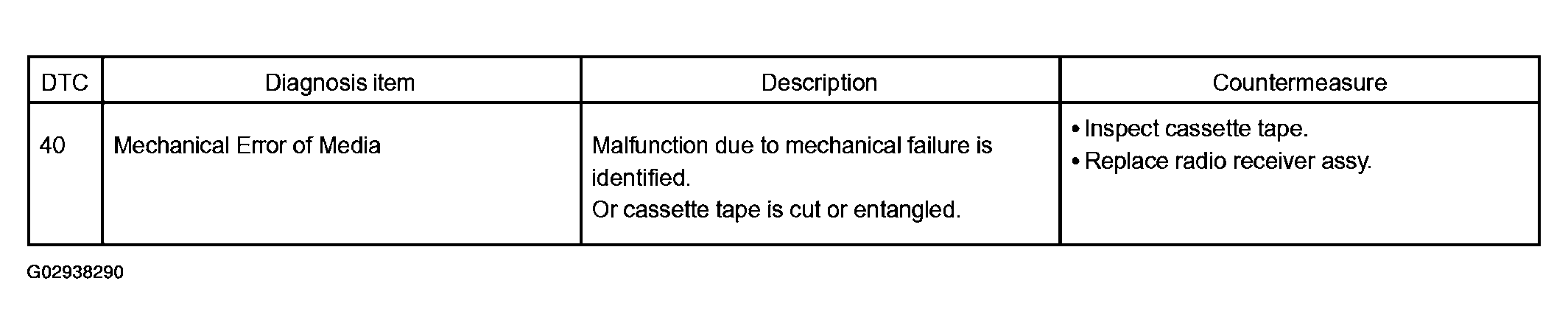

- Logical address: 61 (Cassette switch)

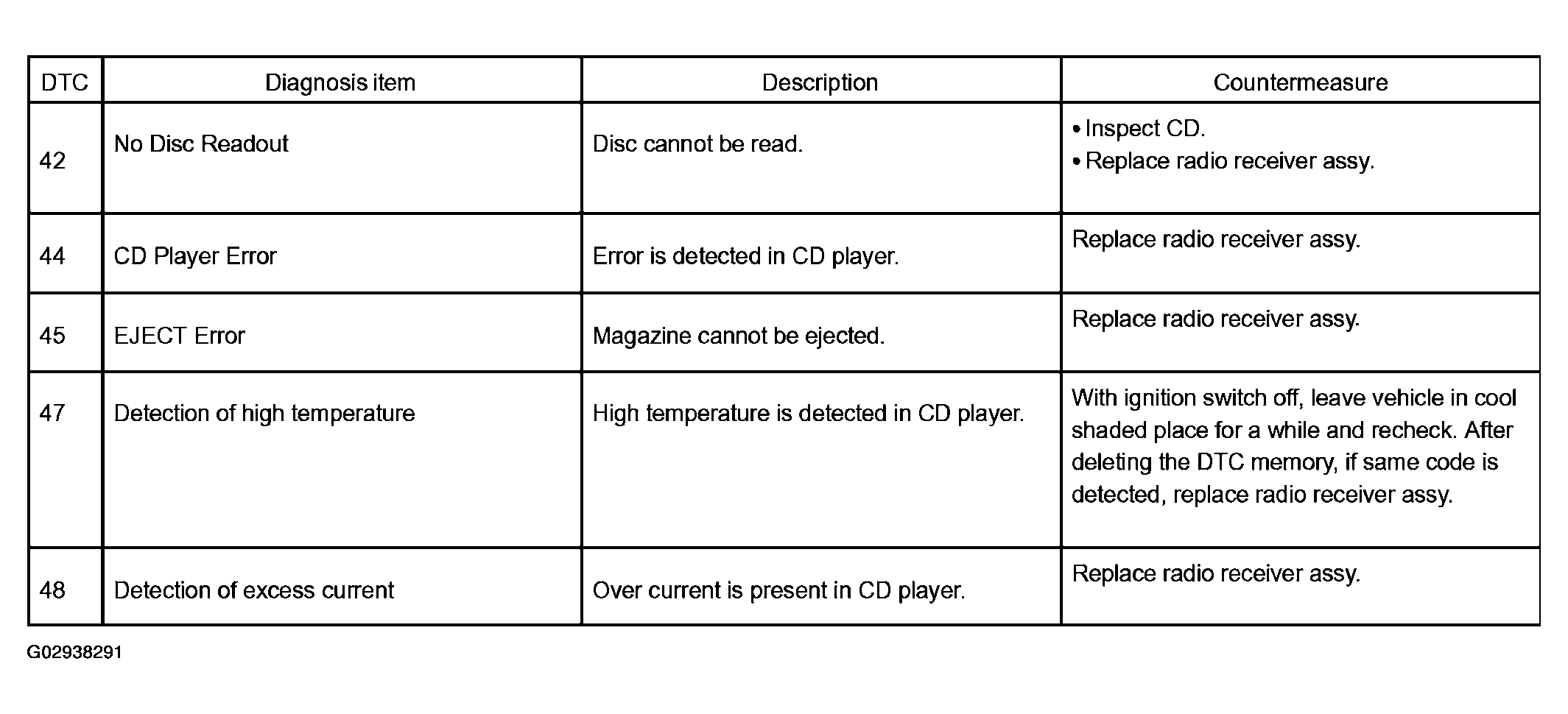

- Logical address: 62 (CD player)

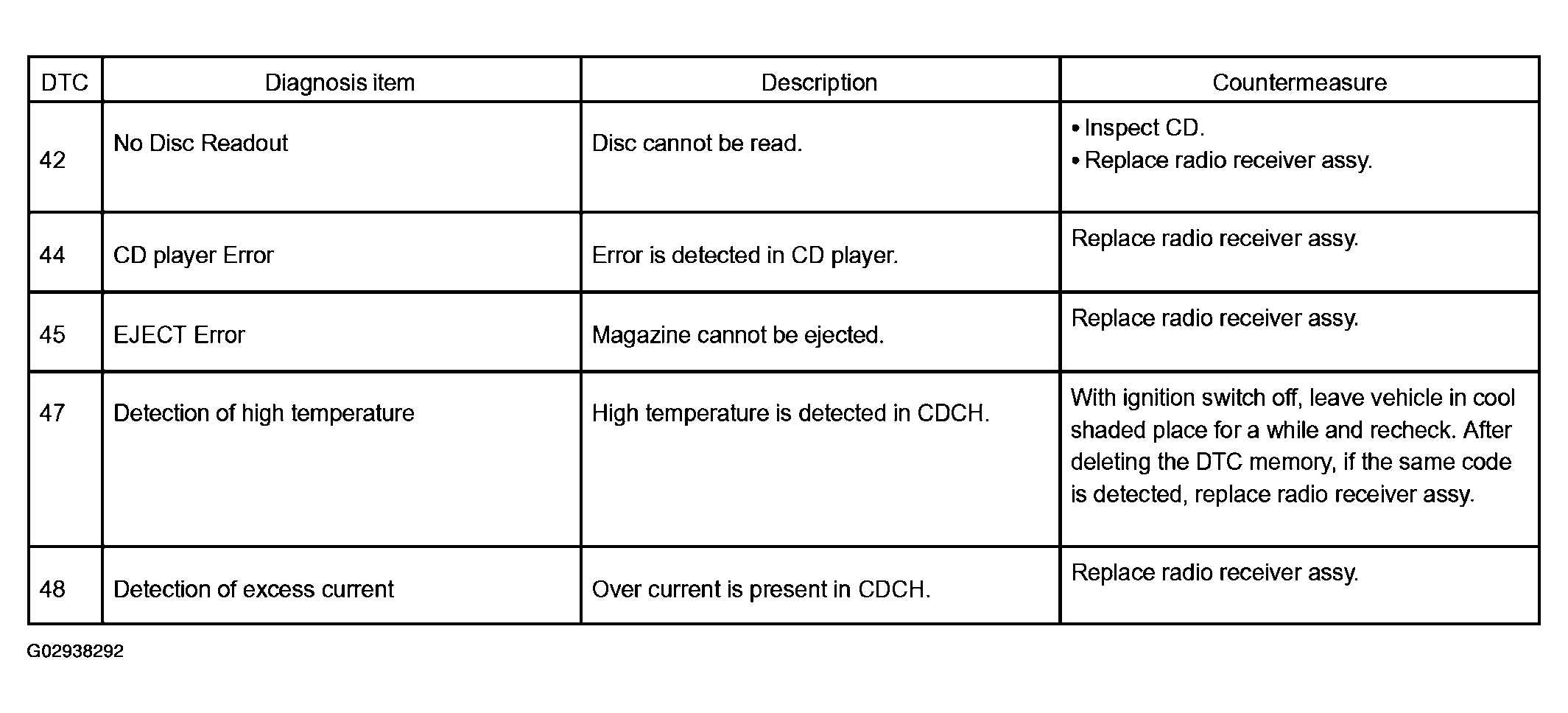

- Logical address: 63 (In-dash CD changer)

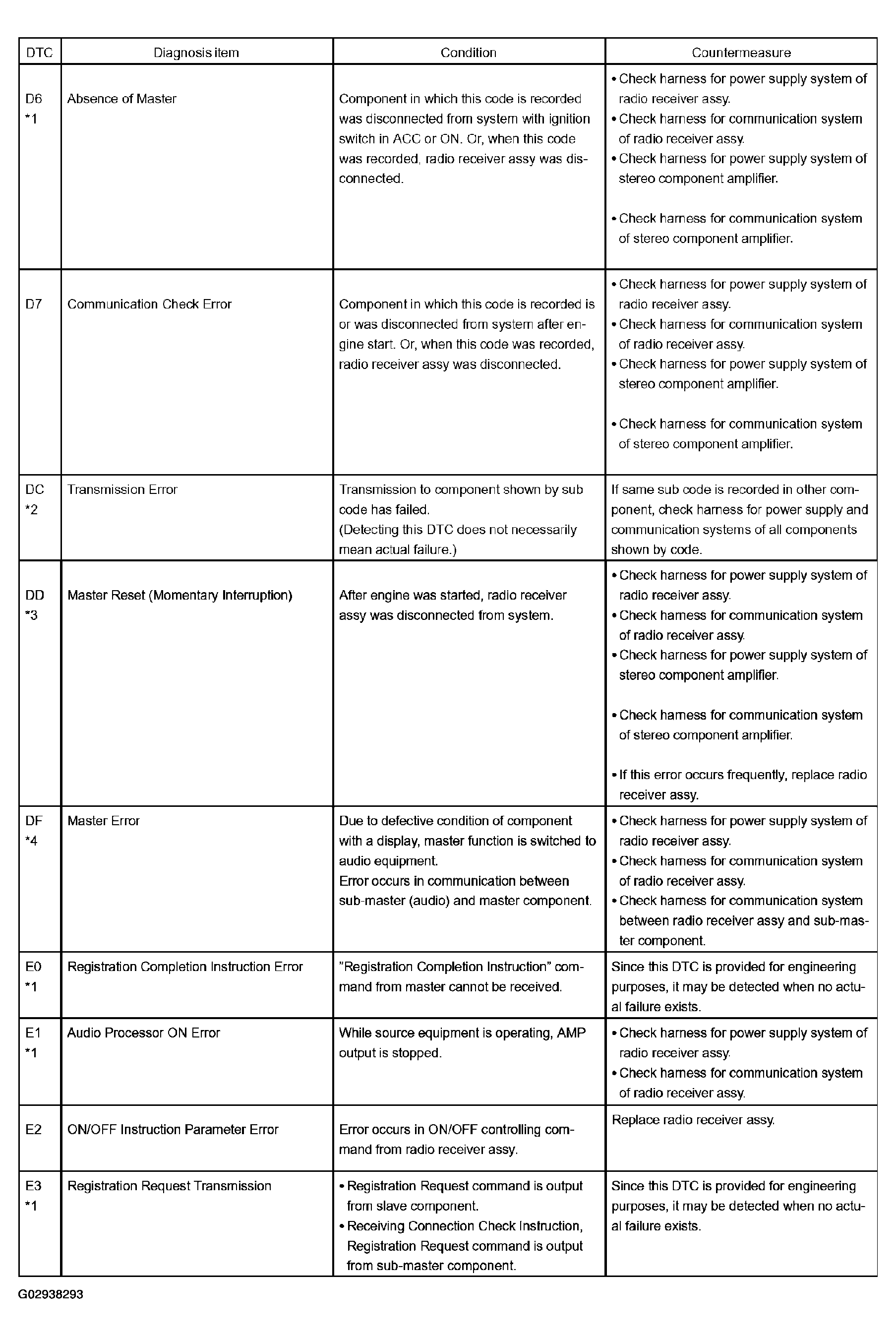

- STEREO COMPONENT AMPLIFIER ASSY (Physical address: 440)
HINT:
- *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting the engine.
- *2: This code may be stored when the engine key is turned again 1 min. after engine start.
- *3: This code may be stored when the engine key is turned again after engine start.
- *4: When 210 sec. have passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.
Logical address: 01 (Communication control)
