How To Proceed With Troubleshooting

1. VEHICLE BROUGHT TO WORKSHOP

   NEXT

2. (SEE  CUSTOMER PROBLEM ANALYSIS CHECK   )
   1. Interview and confirm the trouble.
   1. Confirm the condition of the trouble.

   NEXT

3. BASIC INSPECTION
   1. Basic inspection.
      1. Check the battery voltage.

      Standard: 11 to 14 V

   2. Check the power supply to the radio receiver assy.
   1. Turn the ignition switch to the ACC position.
   2. Check whether or not the display appears on the radio receiver assy.

   DISPLAY DOES NOT APPEAR (PROCEED TO  PROBLEM SYMPTOMS TABLE   )

   DISPLAY APPEARS (GO TO STEP 4)

4. DTC CHECK (SEE  PRE-CHECK   )

   DTC IS OUTPUT (GO TO STEP 5)

   DTC IS NOT OUTPUT (GO TO STEP   6 )

5. (SEE  DIAGNOSTIC TROUBLE CODE CHART   )

   NEXT: GO TO STEP   7

6. (SEE  PROBLEM SYMPTOMS TABLE   )

   NEXT

7. (SEE  CIRCUIT DESCRIPTION   -  CIRCUIT DESCRIPTION   )

   NEXT

8. IDENTIFICATION OF PROBLEM

   NEXT

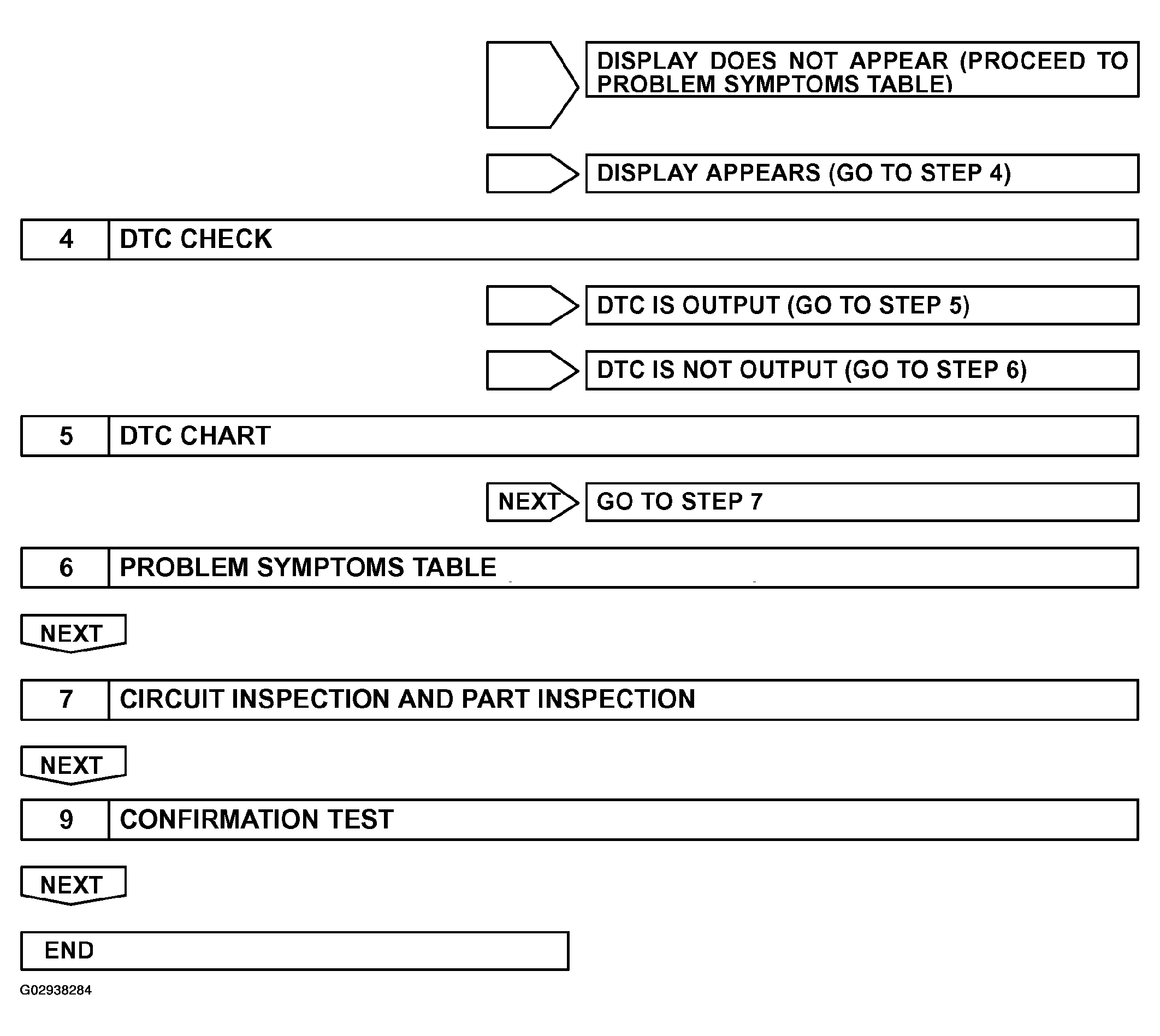

   Fig 1: DTC Troubleshooting Description Condition

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. CONFIRMATION TEST

NEXT

END
