Audio System - Diagnostics
›
Problem Symptoms Table
Problem Symptoms Table

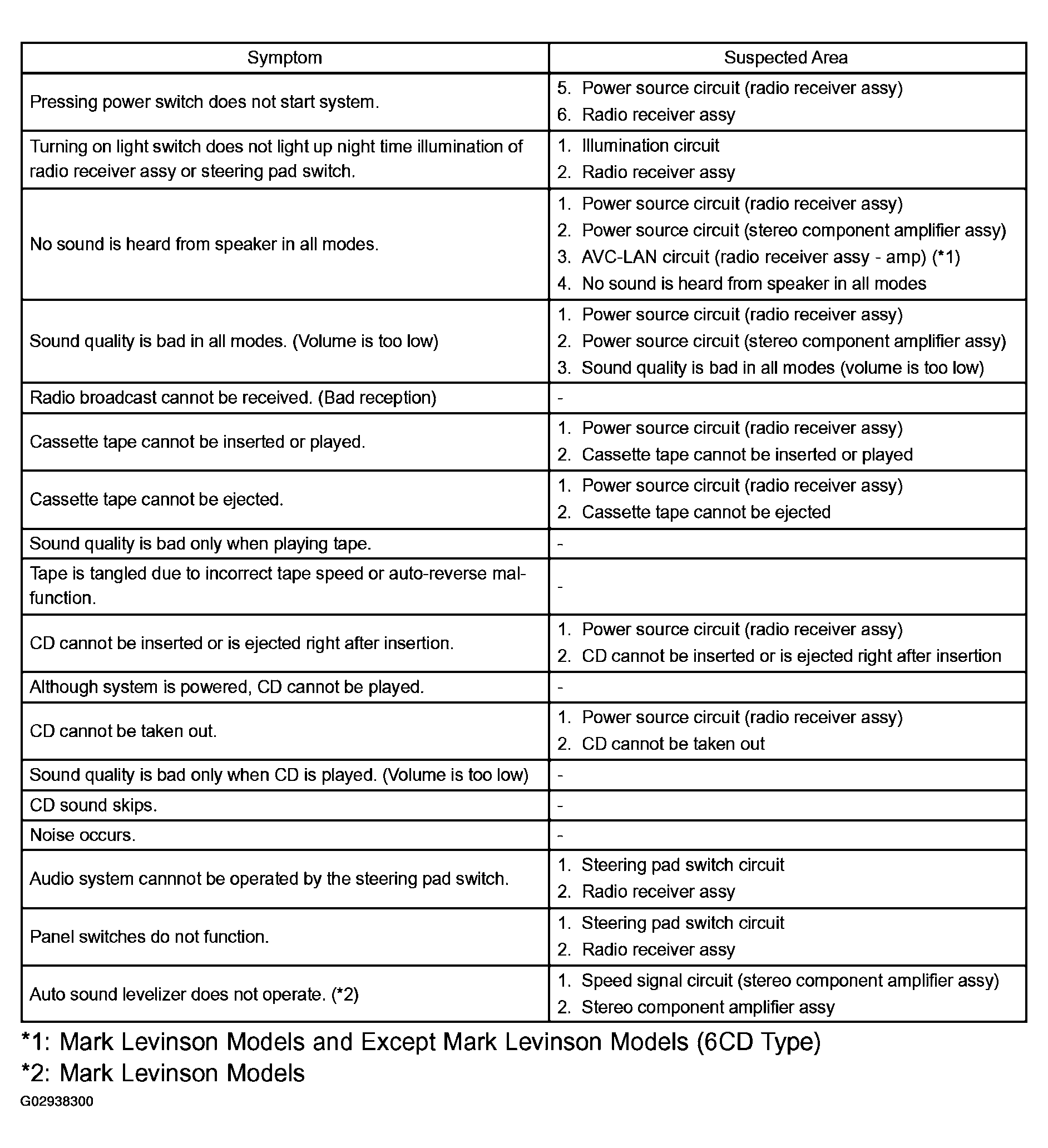

Fig 1: Audio System Symptoms Description Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
