Height Control Sensor Sub-ASSY Rear RH: Replacement

  1. REMOVE HEIGHT CONTROL SENSOR SUB-ASSY REAR RH
    1. Disconnect the connector.
    2. Align matchmark with the one on the height control sensor subassy rear RH and bracket.
    3. Remove a nut.

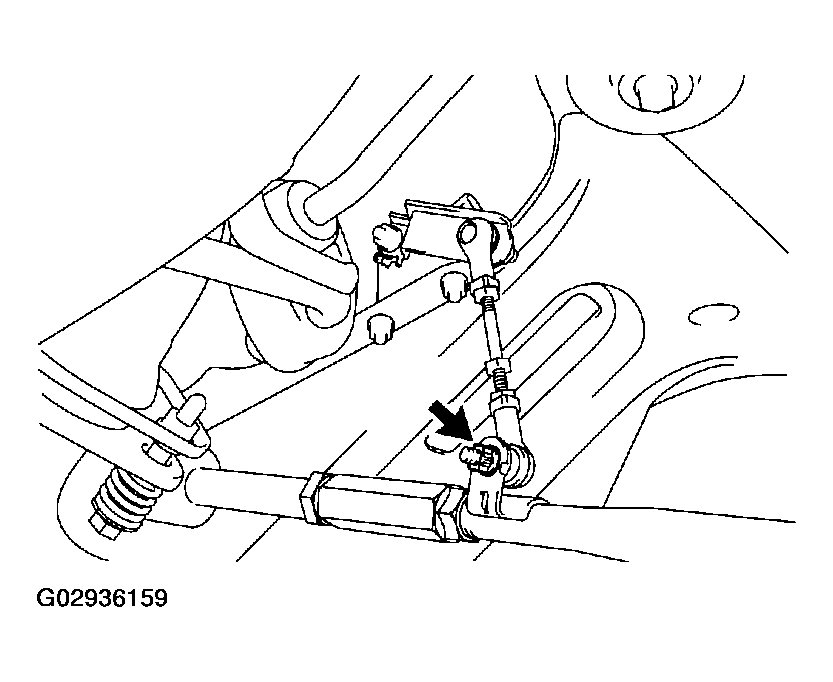

      Fig 1: Removing Nut From Light Control Sensor Sub Assy
      G02936159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 nuts and height control sensor sub assy rear RH.

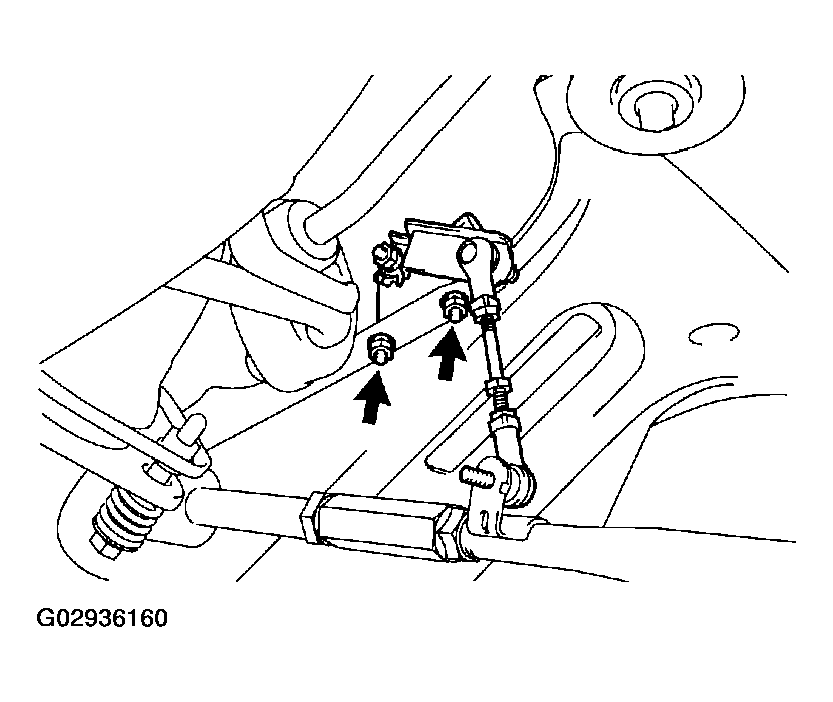

    Fig 2: Removing Light Control Sensor Sub Assy
    G02936160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL HEIGHT CONTROL SENSOR SUB-ASSY REAR RH
    1. Install the height control sensor link rear RH with the 2 nuts.

      Torque: 8.0 N.m (81 kgf.cm, 71 in..lbf)

    2. Align the matchmark with the one on the height control sensor sub assy rear RH and bracket.
    3. Install the height control sensor sub assy rear RH

      Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)

    4. Connect the connector.
    5. When the work like the vehicle height may be changed is performed, for example, removal and installation of the height control sensor, or replacement of the suspension, etc., initialize the sensor, then adjust the optical axis. (See PRECAUTION )
  3. HEADLIGHT AIM ONLY (See  ADJUSTMENT   )
