Inspection Procedure

CHECK RADIO AND NAVIGATION ASSY
1. Check if a map disc is inserted in the map disc slot.
OK: A map disc is inserted.

Fig 1: Identifying Map Disc Inserted Map Disc Slot
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: INSERT MAP DISC IN "MAP" SIDE SLOT

OK: Go To Next Step.
CHECK MAP DISC

Check that the map disc is not deformed or cracked.
OK: No deformations or cracks appear on the map disc.

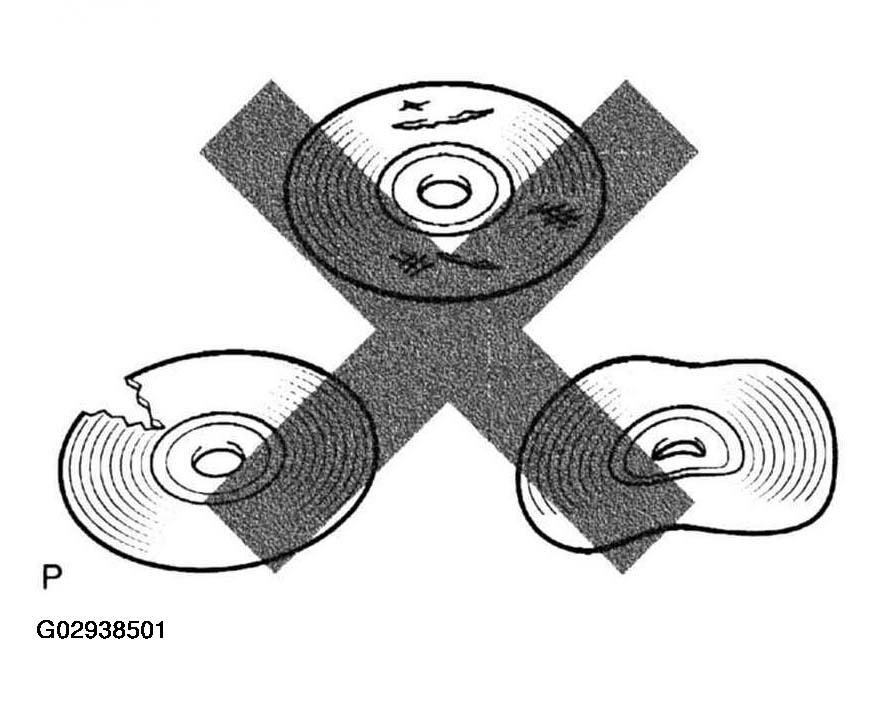

Fig 2: Identifying Damage Disc
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE MAP DISC

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
