LEXUS Navigation System - Diagnostics: Location

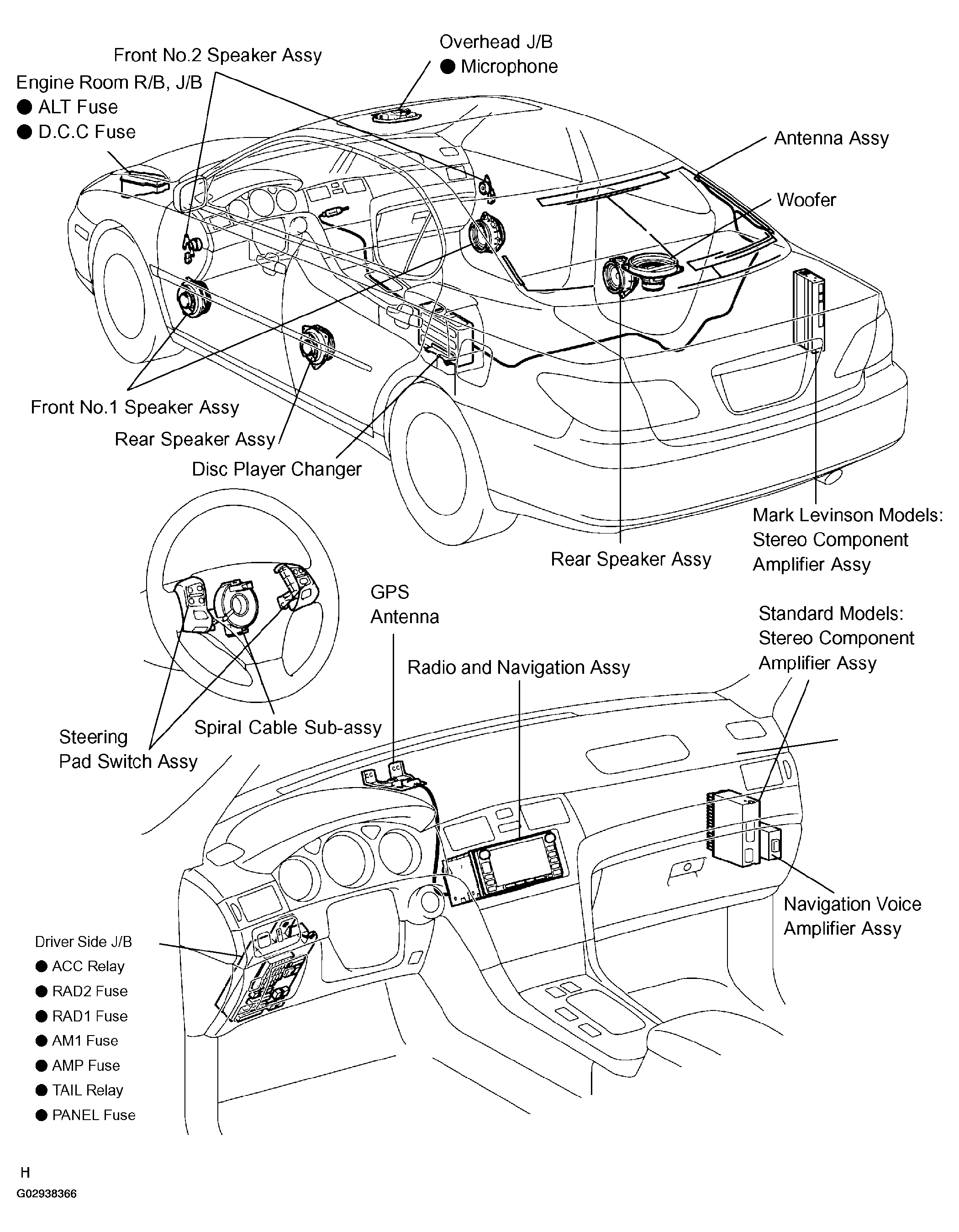

Fig 1: Identifying Lexus Navigation System Components
G02938366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
