Inspection Procedure

1. CHECK MAP DISC
   1. Check that the map disc is not deformed or cracked.

   OK: No deformations or cracks appear on the map disc.

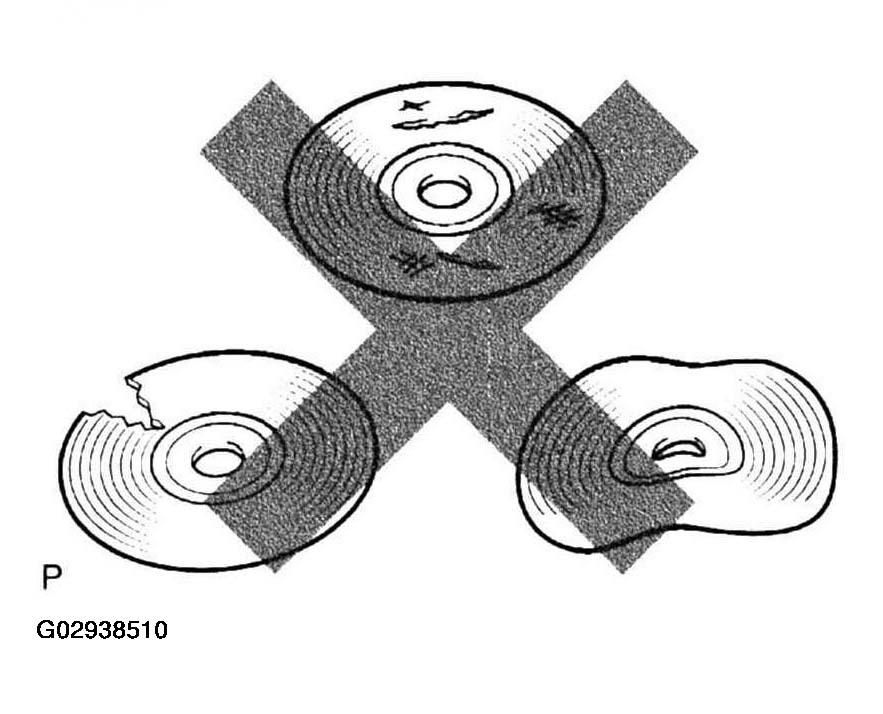

   Fig 1: Identifying Damage Disc

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: REPLACE MAP DISC

   OK: Go To Next Step.

2. SET DESTINATION

1. Set another destination and check if the system can calculate the route correctly.

OK: Route can be correctly calculated.

OK: NORMAL OPERATION

NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
