Engine Immobilizer System - Diagnostics: Location

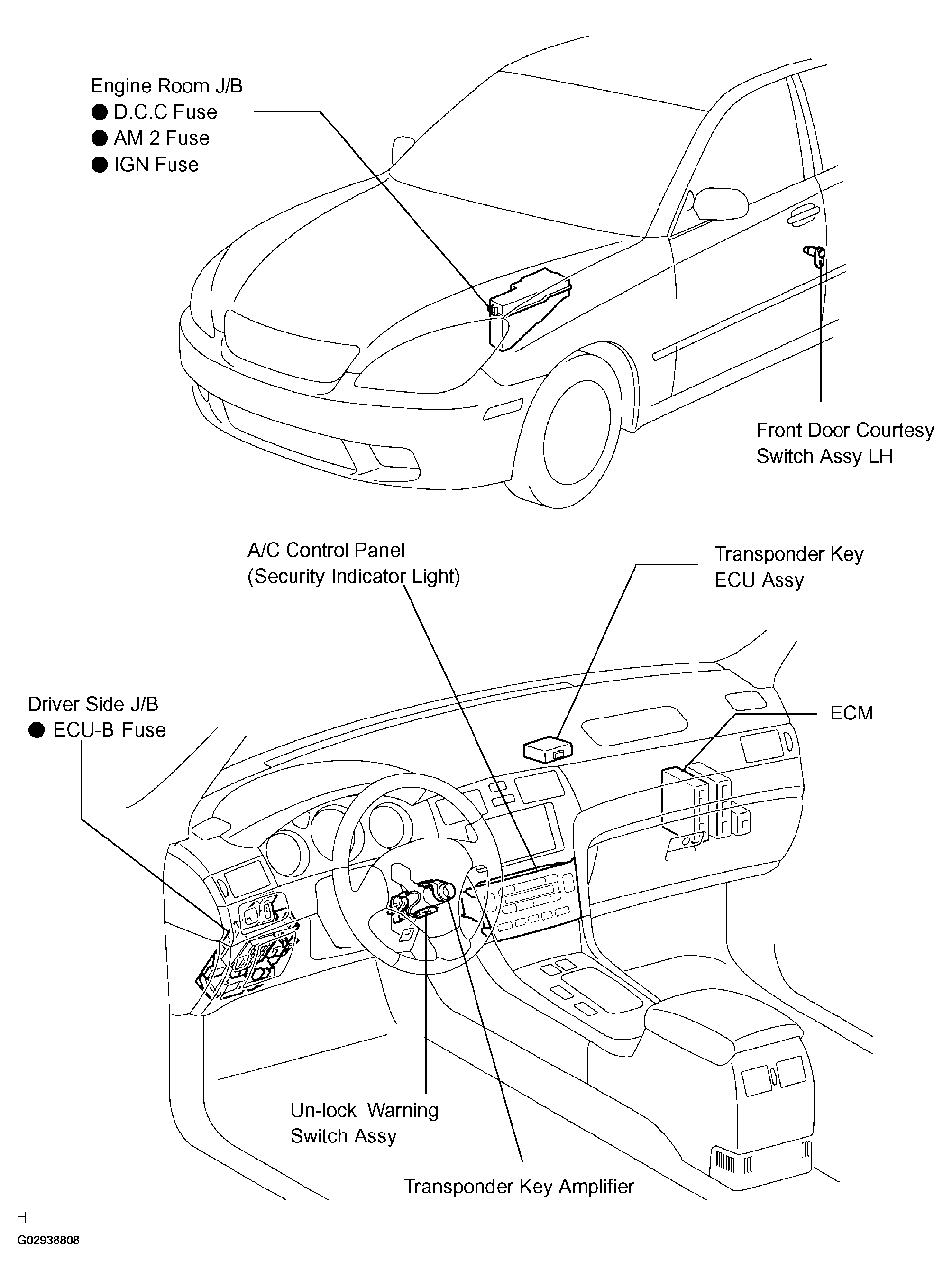

Fig 1: Identifying Engine Immobilizer System Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

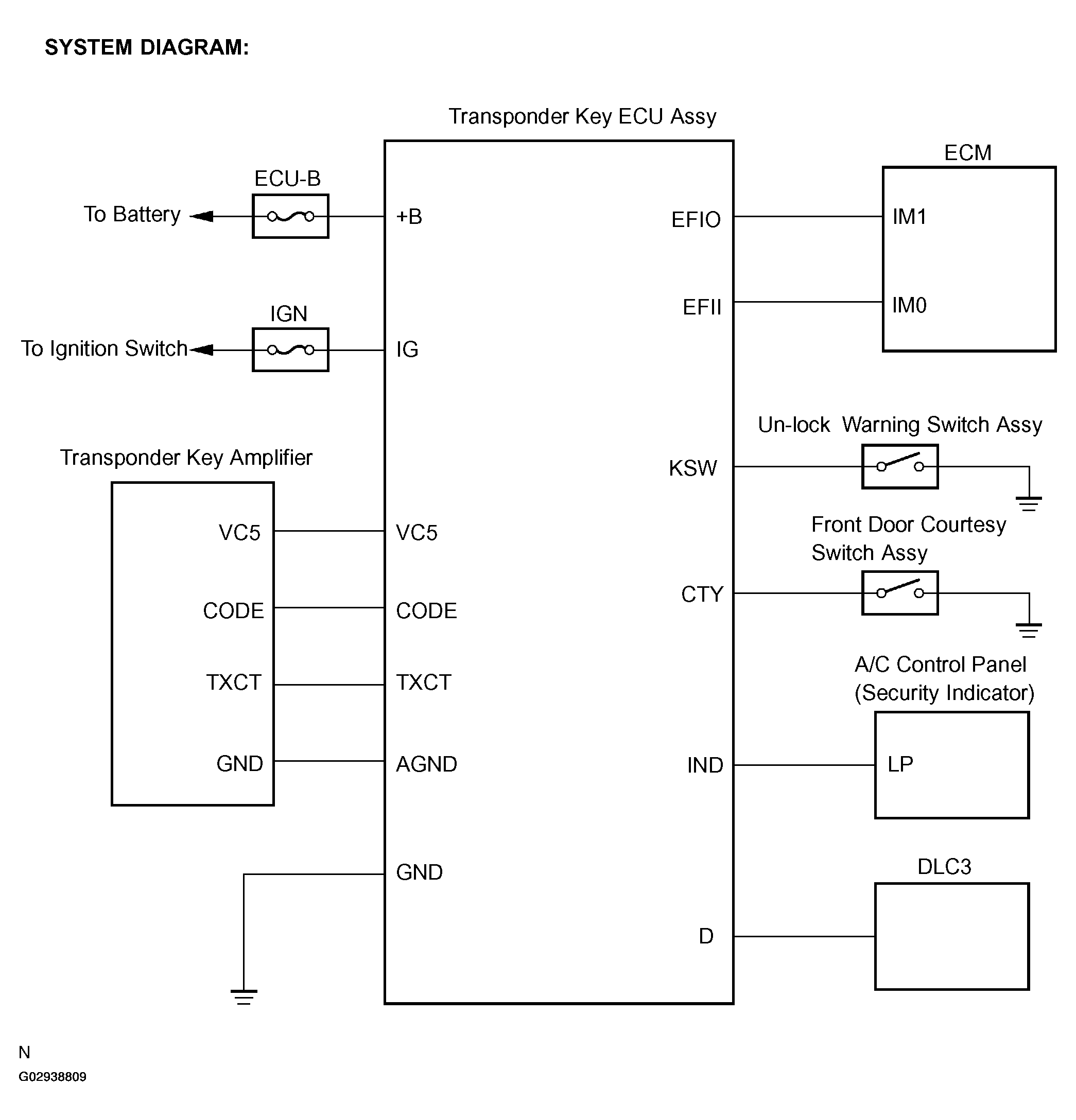

Fig 2: System Diagram - Engine Immobilizer System

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
