Problem Symptoms Table

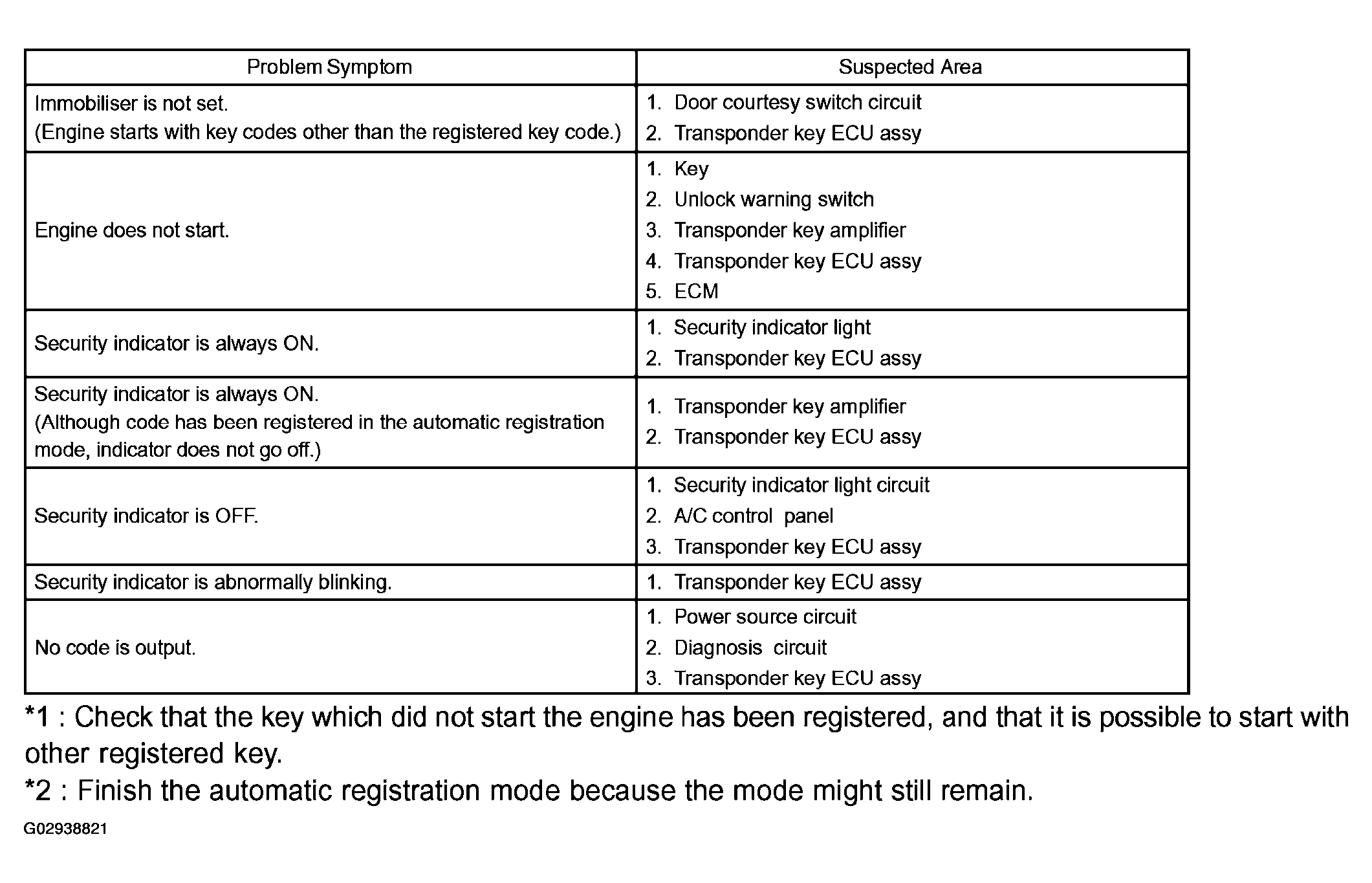

Fig 1: DTC Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1: Check that the key which did not start the engine has been registered, and that it is possible to start with other registered key.

*2: Finish the automatic registration mode because the mode might still remain.
