Power Door Lock Control System - Diagnostics
›
Location
Power Door Lock Control System - Diagnostics: Location

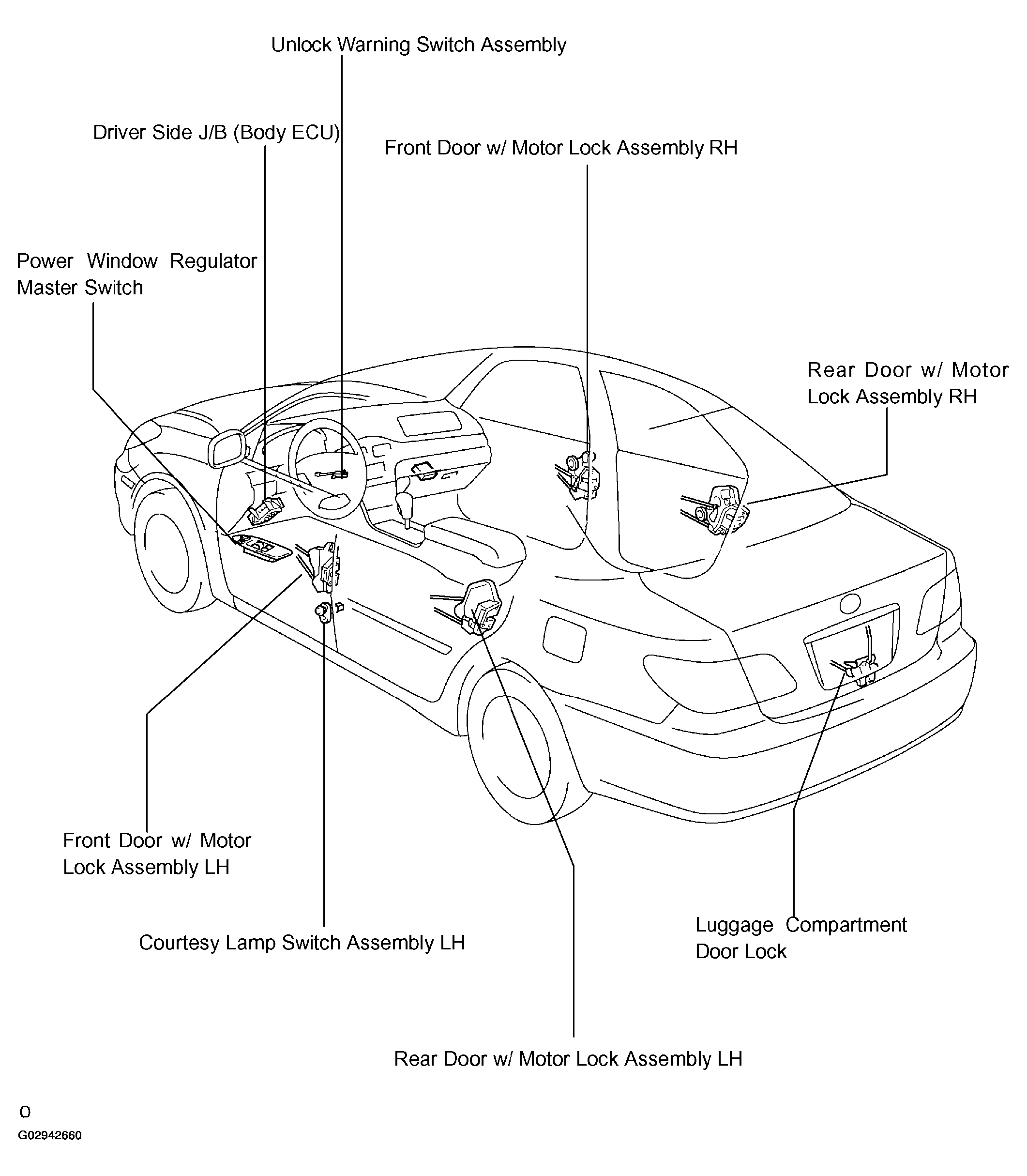

Fig 1: Identifying Power Door Lock Control System Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
