Mirror Position Sensor Circuit (W/ Memory): Wiring Diagram

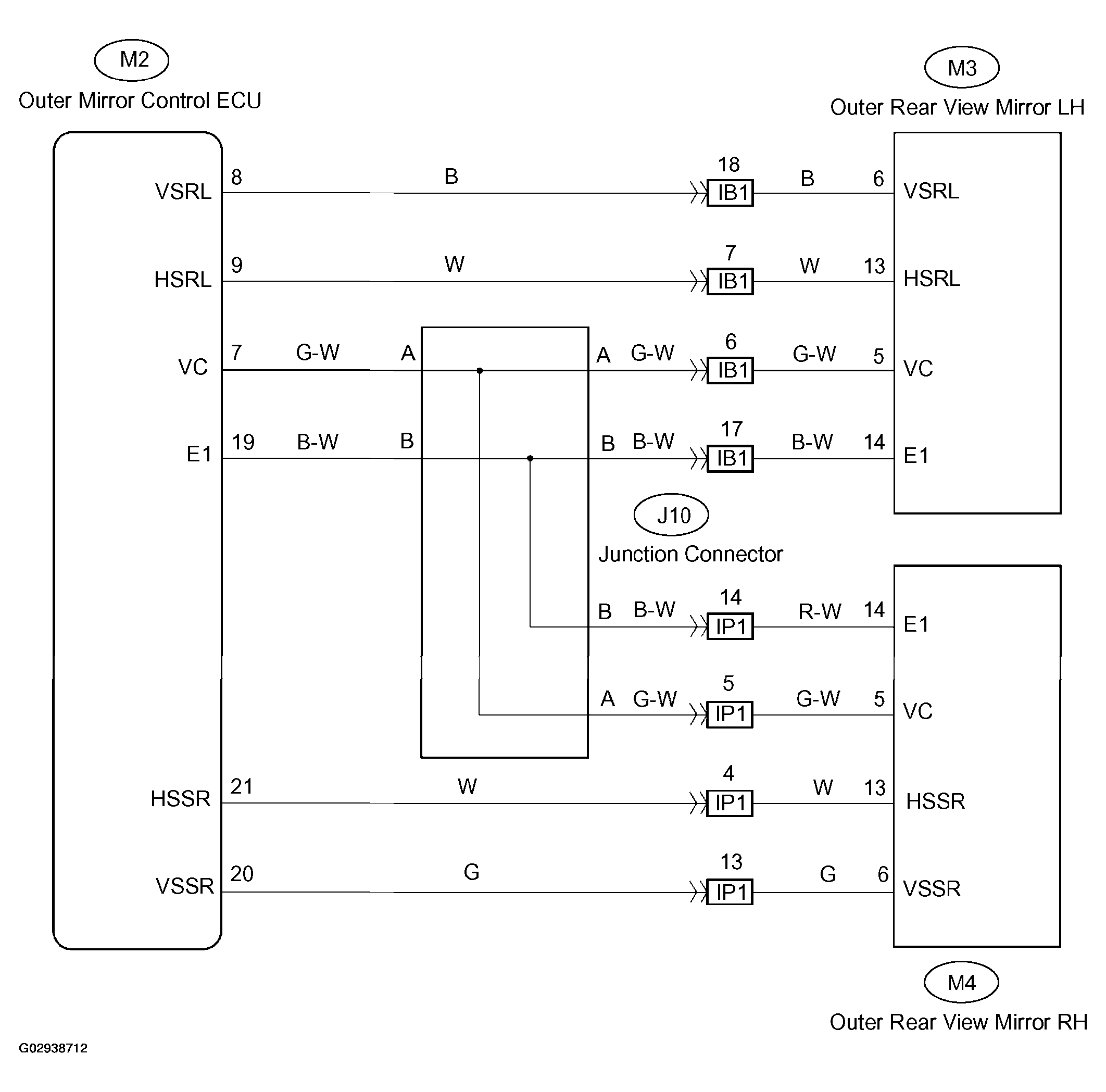

Fig 1: Mirror Position Sensor Circuit Diagram
G02938712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
