Power Mirror Control System - Diagnostics
›
Problem Symptoms Table
Problem Symptoms Table

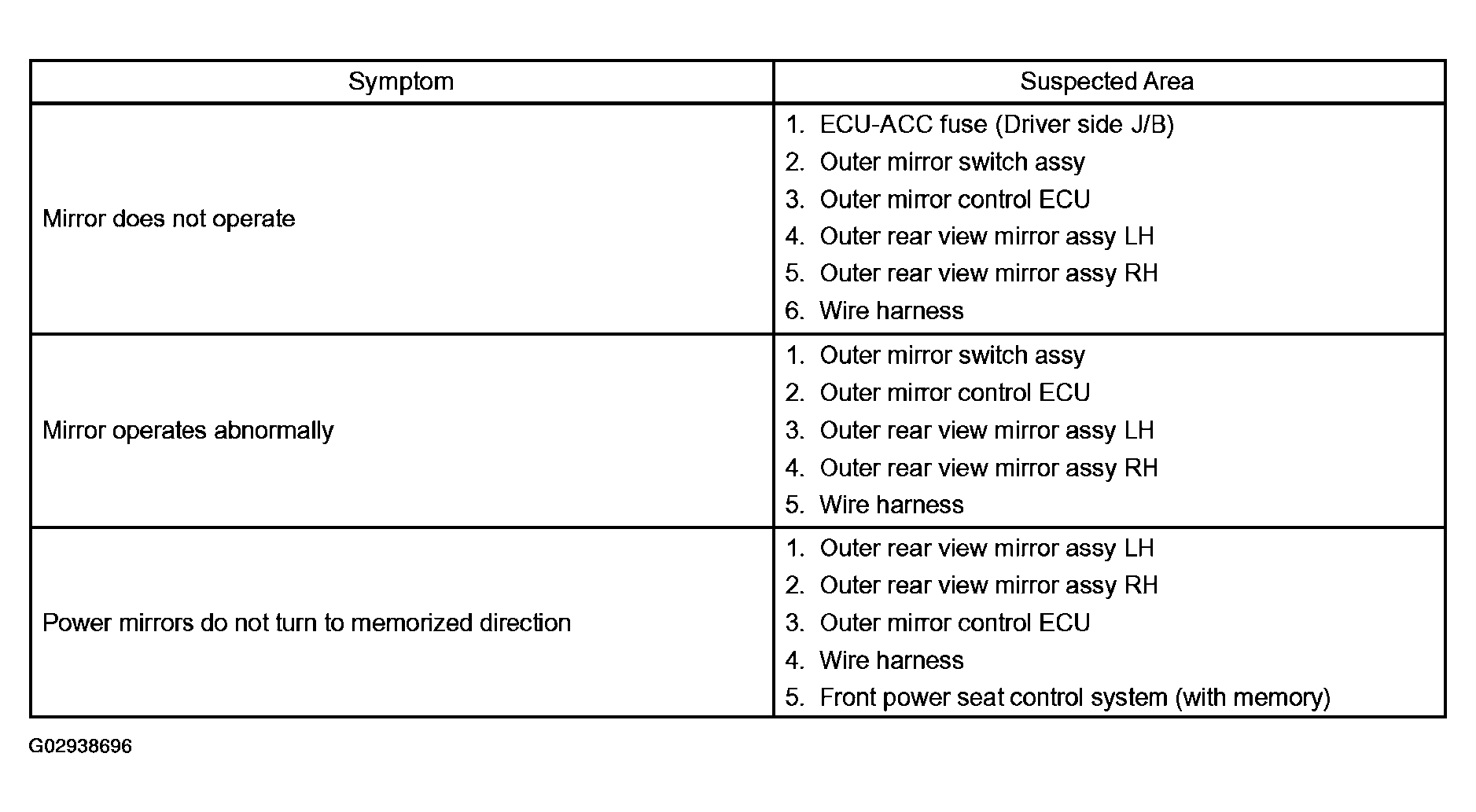

Fig 1: Problem Symptom Table Of Power Mirror Control System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
