Memory Switch Circuit: Wiring Diagram

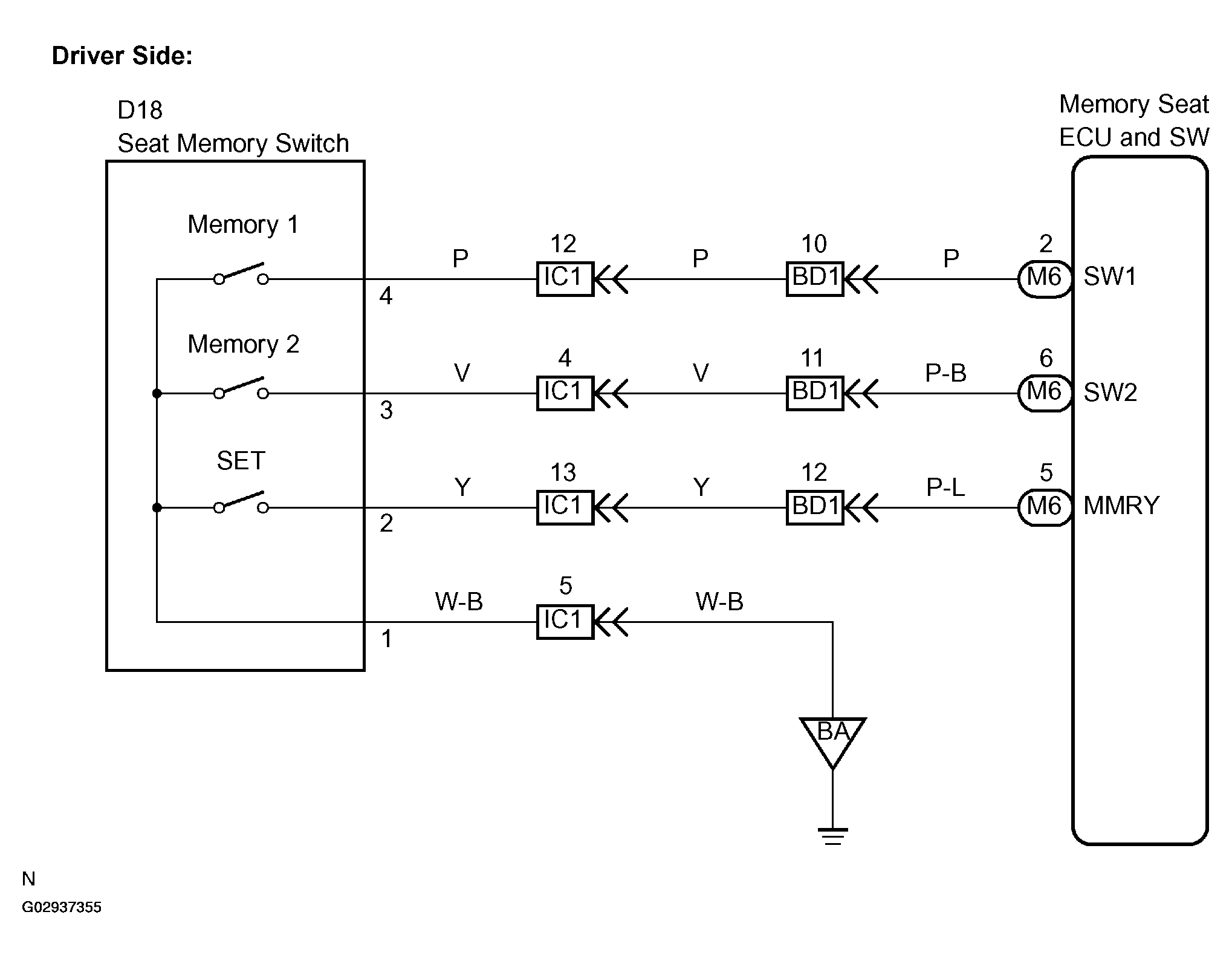

Fig 1: Memory Switch Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

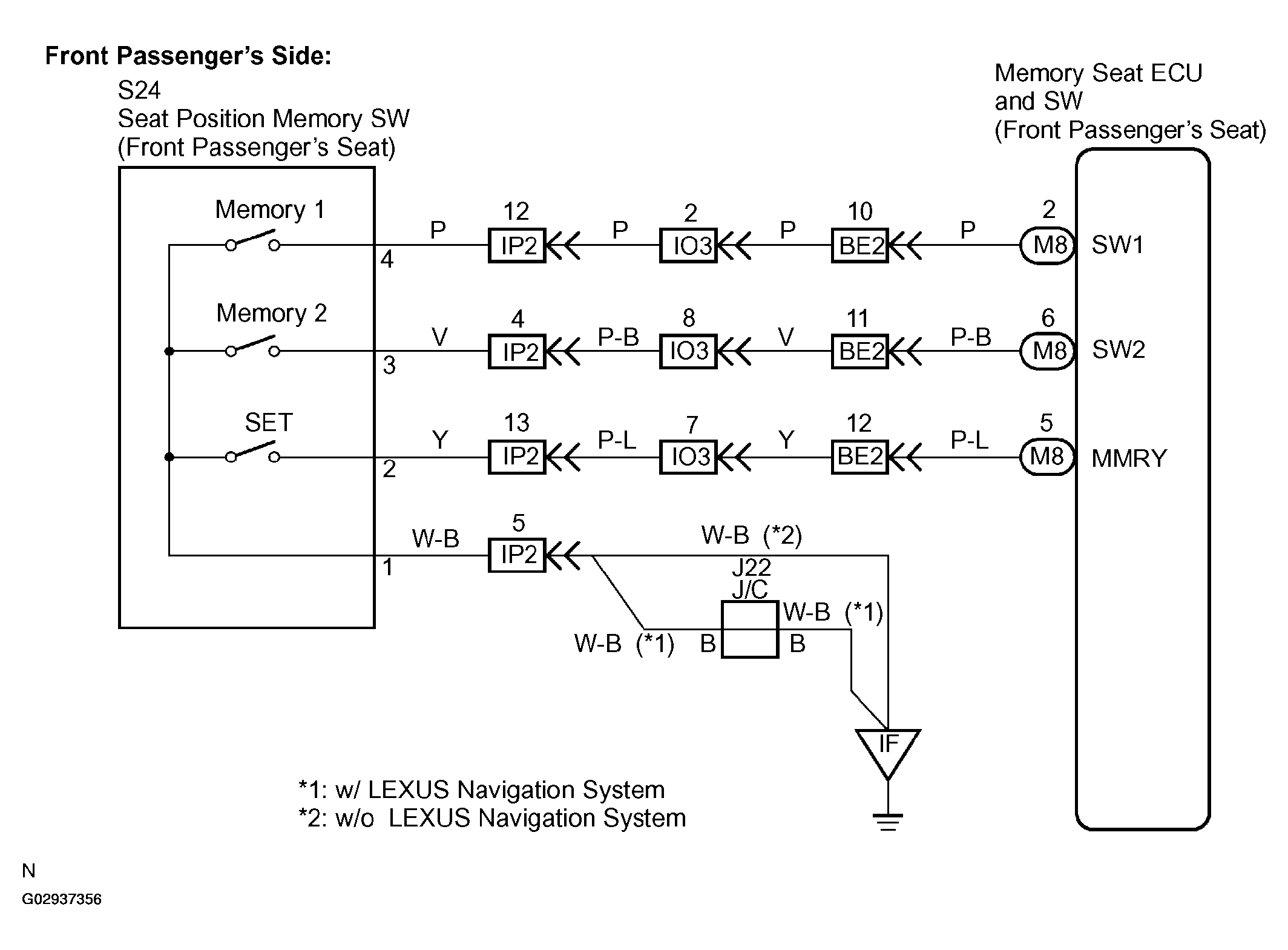

Fig 2: Memory Switch Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
