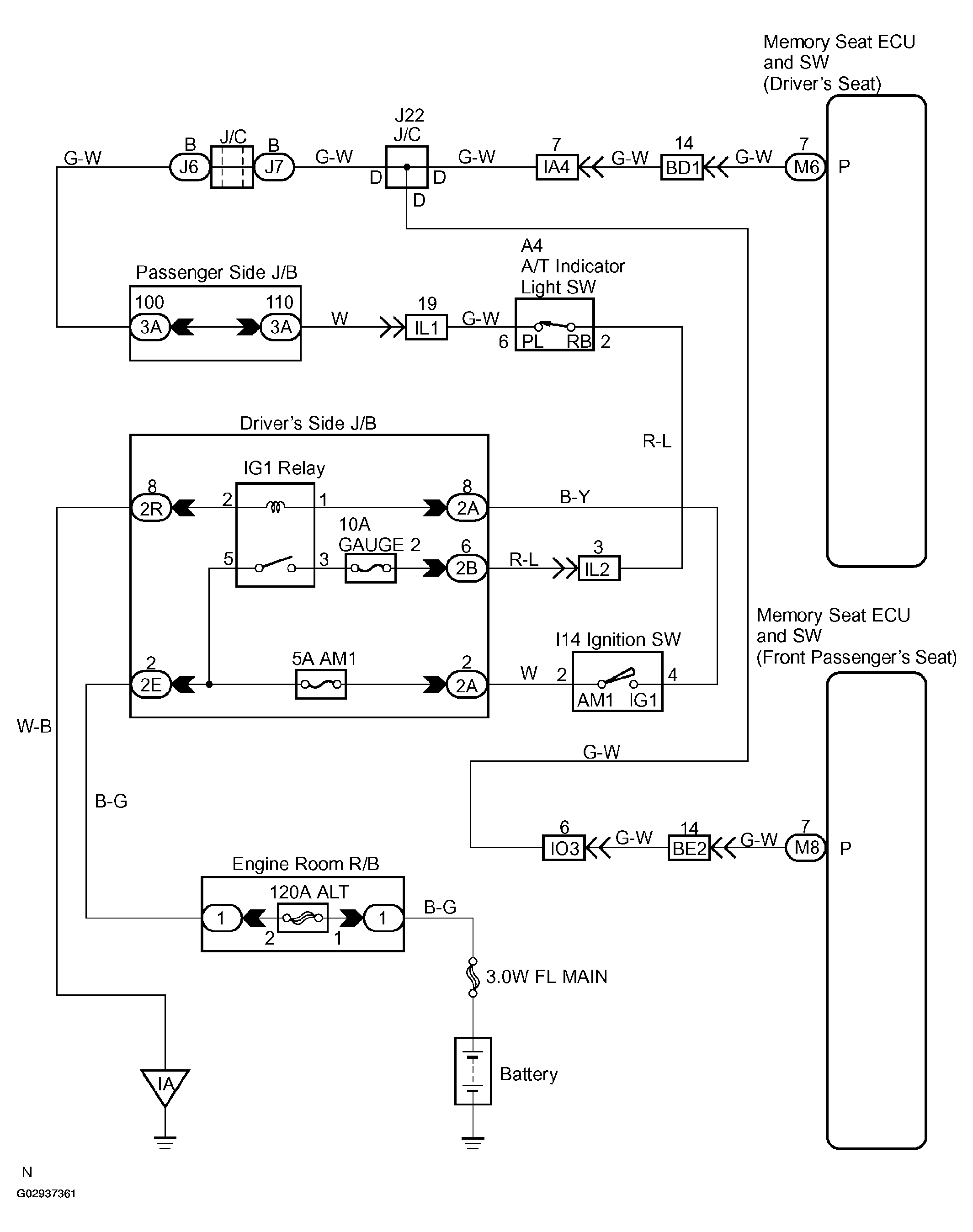

Circuit Description
Power seat memory system operates only when the ignition switch is in the ON position and the shift position is in the P position.
The front power seat switch (memory seat ECU and SW) detects the P position through the park/neutral position switch.
