Home › Lexus › 2005 › ES 330 › Repair and Diagnosis › Body & Frame › Seats › Seat › Front Power Seat Control System › Location

Front Power Seat Control System: Location

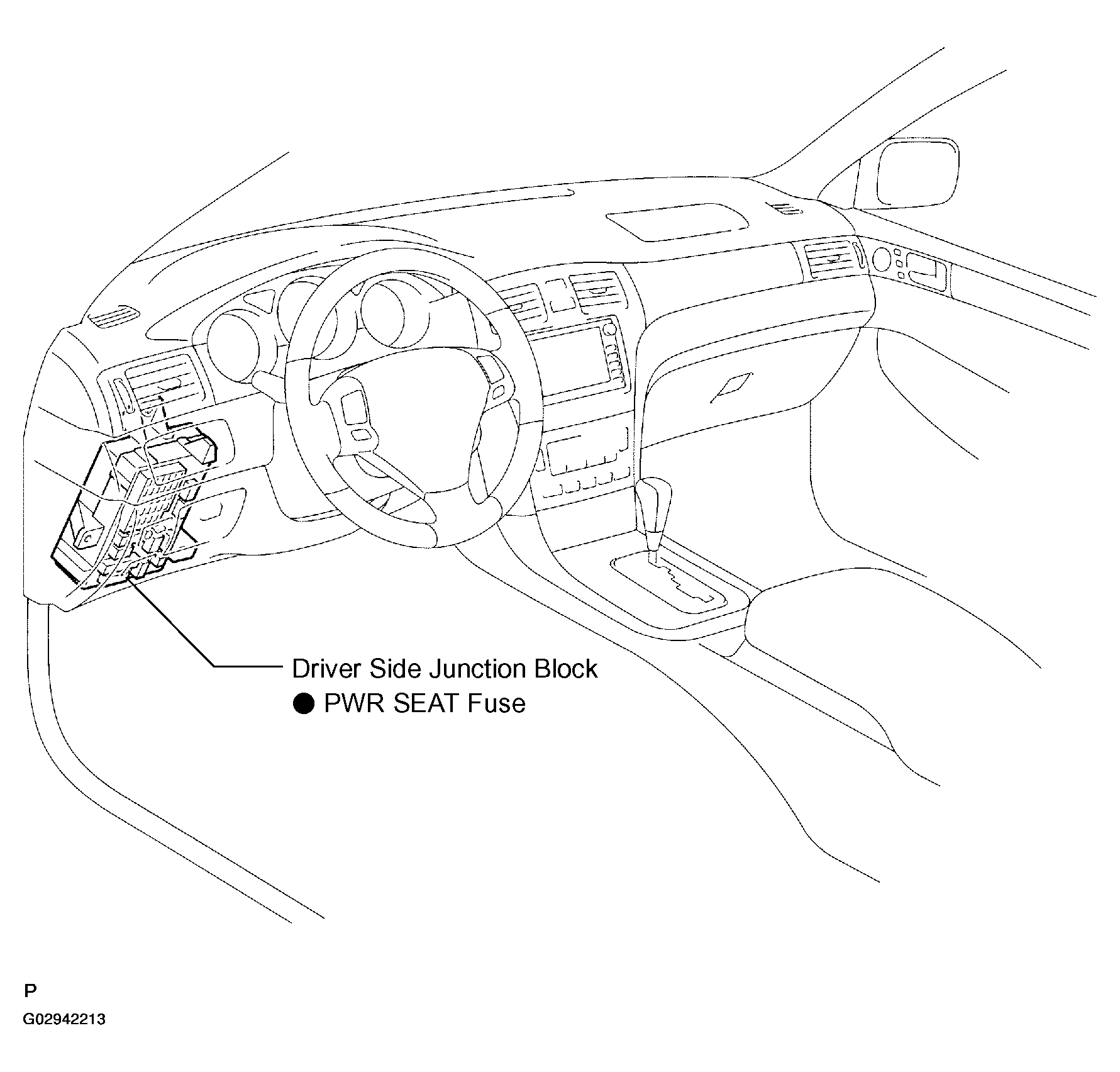

Fig 1: Identifying Front Power Seat Control System (1 Of 2)
G02942213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

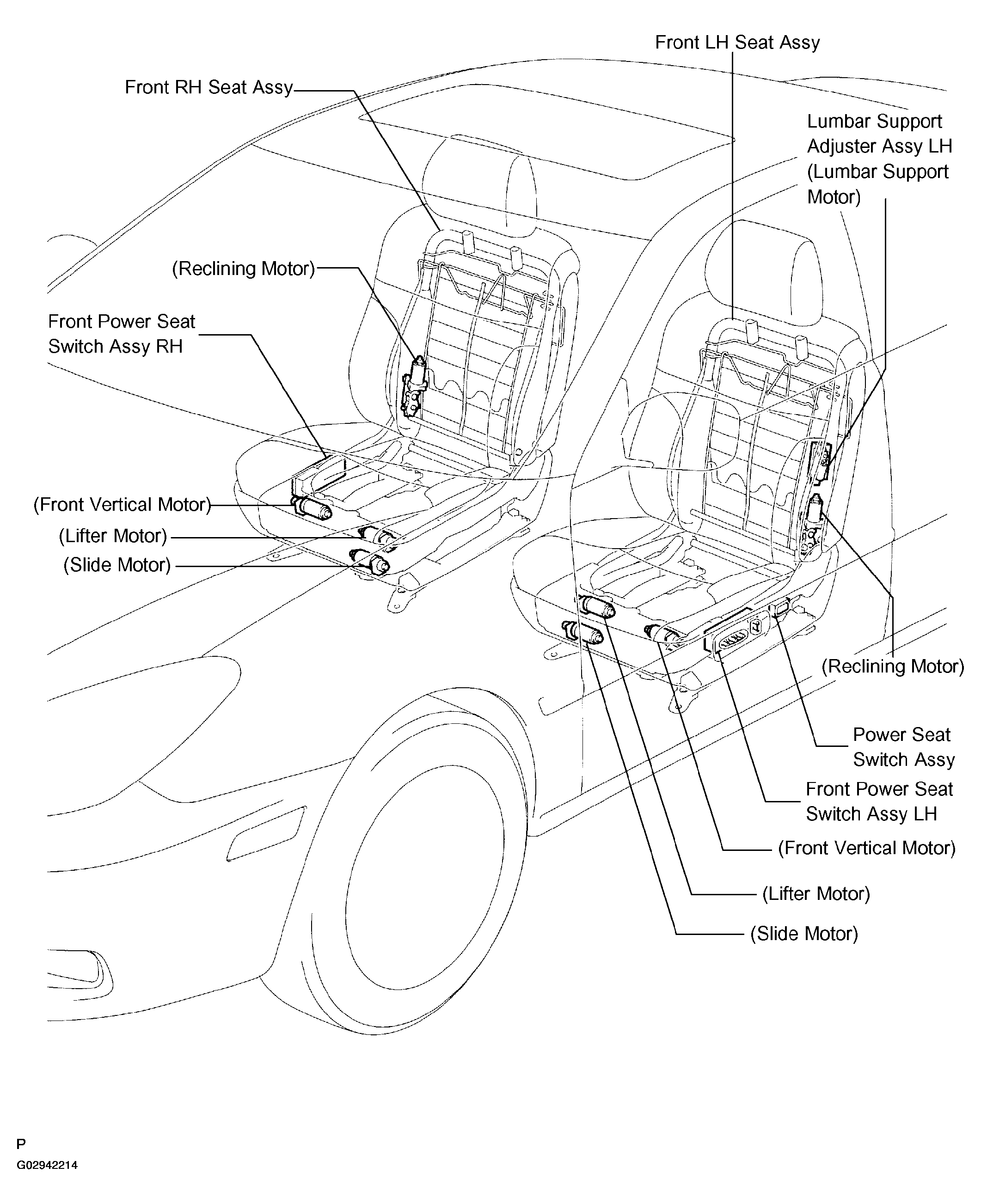

Fig 2: Identifying Front Power Seat Control System (2 Of 2)
G02942214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
